SE2520L
RangeCharger™ 2.4GHz Power Amplifier IC
Final

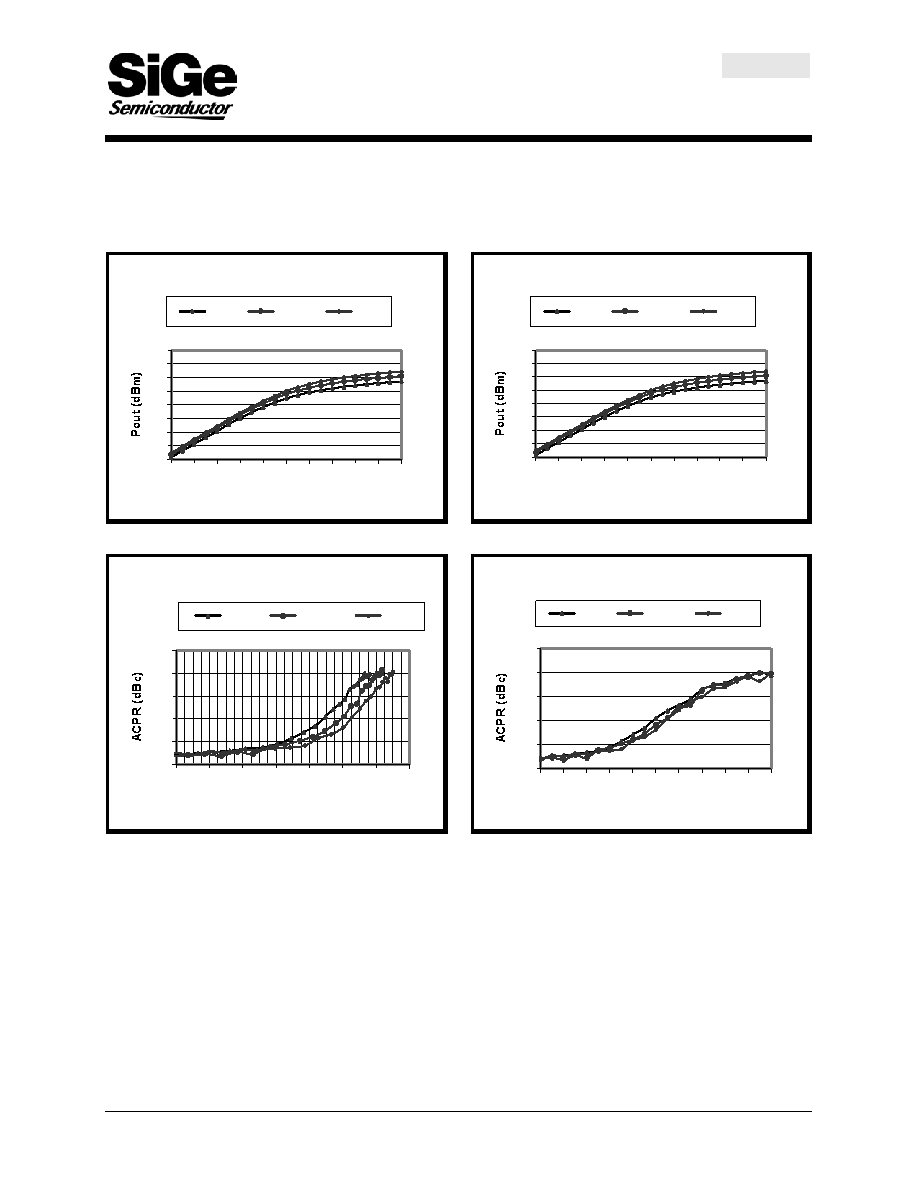

Typical Performance Characteristics
Conditions: VCC = 3.3V, VCTL = 1.6V, VEN = 3.3V, F = 2.45GHz, using IEEE802.11b modulation, using SiGe
SE2520L-EV1 Evaluation Board.
Output Power vs. Input Power
10
12
14
16
18
20
22
24
26
-18 -16 -14 -12 -10 -8 -6 -4 -2
0
2
Input Power (dBm)
3V
3.3V
3.6V
Output Power vs. Input Power
10
12
14
16
18
20
22
24
26
-18 -16 -14 -12 -10 -8 -6 -4 -2
0
2
Input Power (dBm)
3V
3.3V
3.6V
ACPR vs. Output Power
-40
-35
-30
-25
-20
-15
10
12
14
16
18
20
22
24
Output Power (dBm)
3V
3.3V
3.6V
ACPR vs. Input Power
-40
-35
-30
-25
-20
-15
-18 -16 -14 -12 -10 -8 -6 -4 -2
0
2
Input Power (dBm)
3V
3.3V
3.6V
15-DST-01 Rev 4.8 Oct 28/02
5 of 8
