SPECIFICATIONS ARE FOR REFERENCE ONLY AND SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER

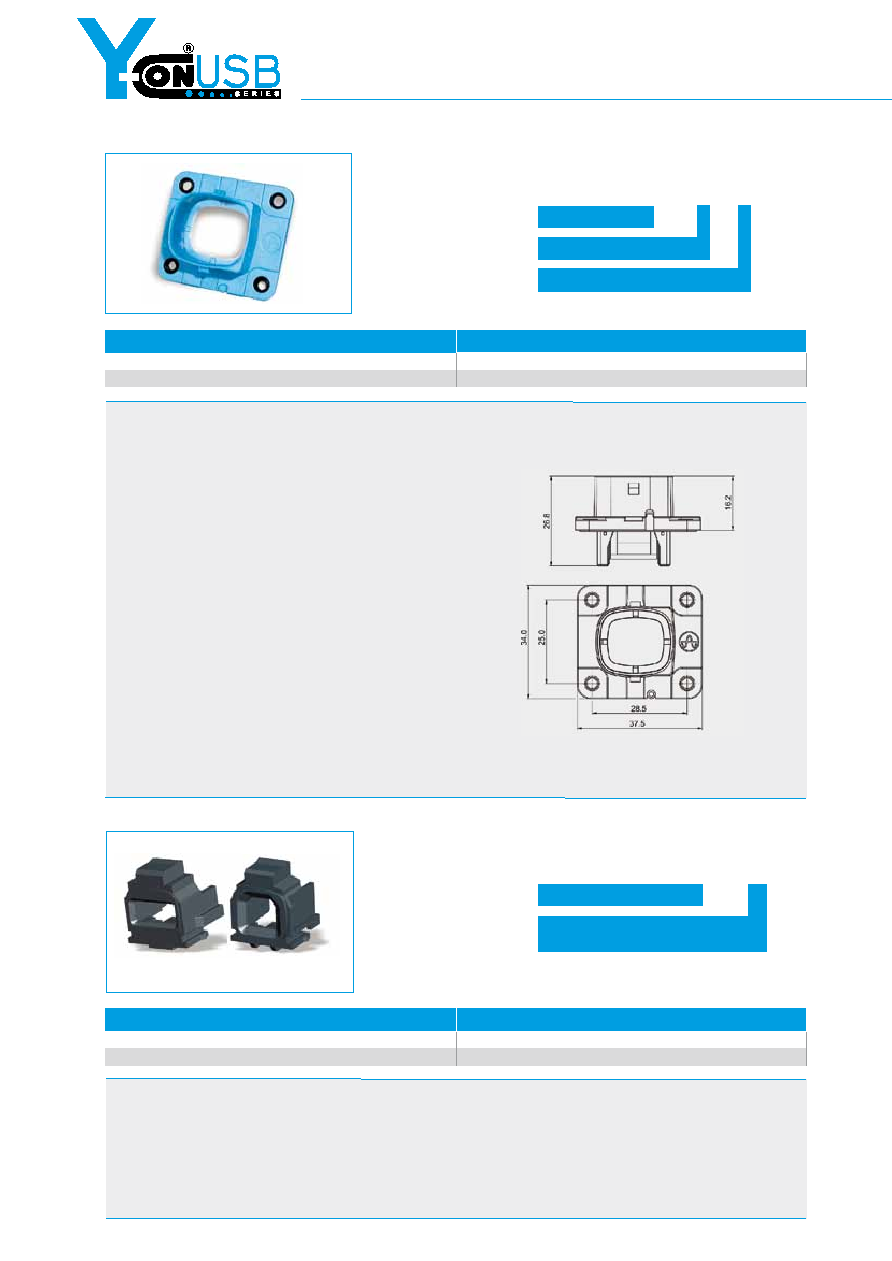

Description:

Y-ConFlange adapter modules for use with

Y-ConUSB-PCB-**Jacks

Y-ConFlange Adaptergehäuse für die

Y-ConUSB-PCB-** Buchsen

Material:

PBT, black

Specifications:

Operating Temp.: -40°C ~ +120°C

Betriebstemp.

Part Number

Colour

Y-ConFlange-10

Blue

Y-ConFlange-10-B

Black

Part Number

Adapter Use

Y-ConUSB-Adapter-10

for all USB-A modules

Y-ConUSB-Adapter-20

for all USB-B modules

Series

Design Number

(see table below)

Y-ConUSB-Adapter - **

Part Number (Details)

Outline Dimensions

Description:

Universal

mounting flange with an integrated

2C seal (also in the screw area) to ensure IP6*

protection when mounted with Y-ConCover-10-*

Universeller

Gehäuseflansch mit integrierter 2K-Dichtung

(auch im Schraubbereich). Damit sind für Y-ConCover-10-*

im montierten Zustand die Schutzarten IP6* gewährleistet

Material:

Flange Body

PBT, UL94V-0

Flanschgehäuse

Flange Seal

TPE, UL94 HB

Flanschdichtung

Specifications:

Operating Temp.: -40°C ~ +120°C

Betriebstemp.

Series

Design Number

No Mark = Blue

B = Black

Y-ConFlange - 10 - *

Part Number (Details)
