Actuators

DRV2603

MSP430

OUT

MSP

DRV

USB Power

External

Power

Power Select Pins

DRV2603 Driver

Increment Mode

Decrement Mode

ERM and LRA Actuators

Effect Buttons

Programmer

Connector

www.ti.com

Getting Started

4

MSP430 Pin-Out

........................................................................................................... 16

1

Getting Started

The DRV2603 can be used as a demonstration or evaluation tool. When the DRV2603EVM-CT Evaluation

Module is powered on, a demo application automatically starts. To power the board, connect the

DRV2603EVM-CT to an available USB port on your computer using the included mini-USB cable. The

demo begins with a board power-up sequence and then will enter the demo effects mode. The four larger

buttons (B1-B4) can be used to sample haptic effects using both the ERM and LRA motor in the top right

corner. The two smaller mode buttons (“–“, “+”) are used to change between the different sets of effects.

See the DRV2603 Demonstration Program section for a more detailed description of the demo application.

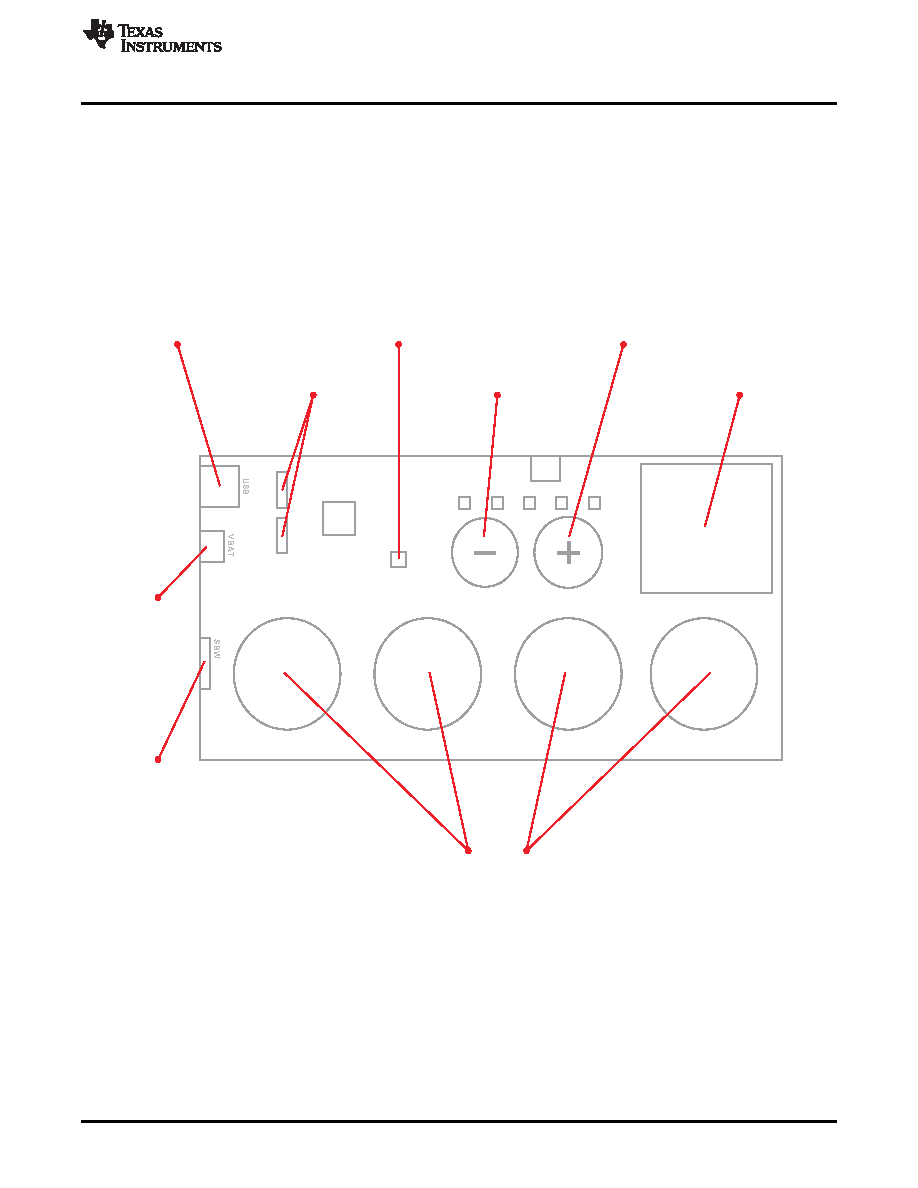

Figure 1. Board Diagram

3

SLOU340A – May 2012 – Revised May 2012

DRV2603 ERM/LRA Haptic Driver Evaluation Kit
