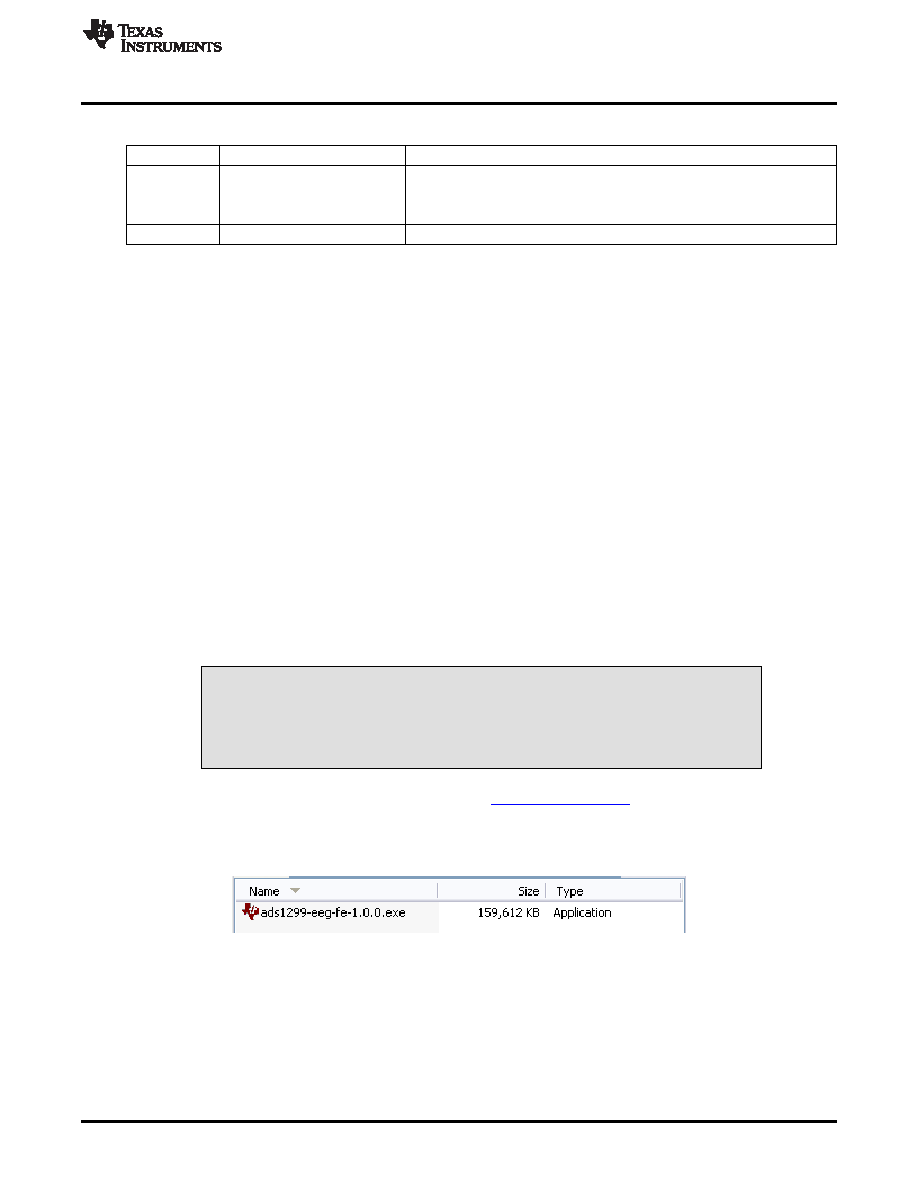

background image
www.ti.com
Software Installation
Table 1. Factory Default Jumper Settings (continued)
Jumper Name
Settings
Comment
JP25
1-2/ 3-4/5-6
– BIAS_ELEC connected to all INPs
– BIAS_ELEC connected to all INMs
– BIAS_ELEC shorted to REF_ELEC which connects to SRB1
J6
5-6/ 7-8/ 9-10/ … 32-34 / 35-36
connect jumpers on all channels
3
Software Installation
3.1
Minimum Requirements
Before installing the software that is intended for use with the EVM kit, verify that your PC meets the
minimum requirements outlined in this section.
3.1.1
Required Setup for ADS1299EEG-FE Software
Install the software on a PC-compatible computer that meets these specifications:
•
Pentium III®/ Celeron® processor, 866MHz or equivalent
•
Minimum 256MB of RAM (512MB or greater recommended)
•
USB 1.1-compatible input
•
Hard disk drive with at least 200MB free space
•
Microsoft® Windows® XP operating system with SP2 (Windows Vista and Windows 7 are NOT
supported at this time)
•
Mouse or other pointing device
•
1280 x 960 minimum display resolution
3.2
Installing the Software
CAUTION
Do not connect the ADS1299EEG-FE hardware before installing the software
on a suitable PC. Failure to observe this caution may cause Microsoft Windows
to not recognize the ADS1299EEG-FE.
The latest software is available from the TI web site at www.ti.com\ads1299. Check the ADS1299 Product
Folder on the TI web site regularly for updated versions.
To install the ADS1299 software, click on the executable shown in Figure 2. Then follow the prompts
illustrated in Figure 3 through Figure 7.
Figure 2. Executable to Run ADS1299 Software Installation
7
SLAU443 – May 2012
EEG Front-End Performance Demonstration Kit
Submit Documentation Feedback
Copyright © 2012, Texas Instruments Incorporated
