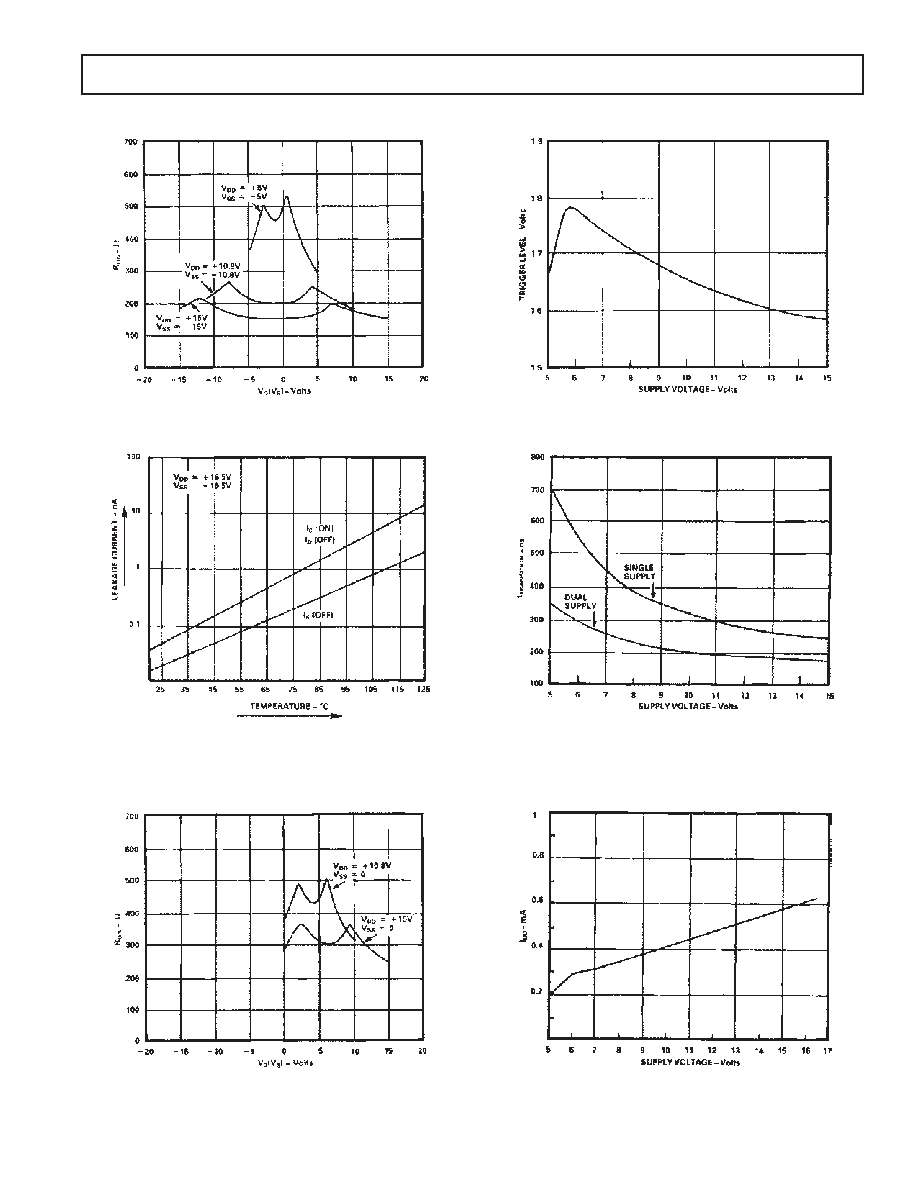

Typical Performance Characteristics–ADG528A/ADG529A

–7–

The multiplexers are guaranteed functional with reduced single or dual supplies down to 4.5 V.

TPC 1. RON as a Function of VD(VS): Dual Supply

Voltage, TA = +25

°C

TPC 2. Leakage Current as a Function of Temperature

(Note: Leakage Currents Reduce as the Supply

Voltages Reduce)

TPC 3. RON as a Function of VD(VS): Single Supply

Voltage, TA = +25

°C

TPC 4. Trigger Levels vs. Power Supply Voltage,

Dual or Single Supply, TA = +25

°C

TPC 5. tTRANSITION vs. Supply Voltage: Dual and

Single Supplies, TA = +25

°C

(Note: For VDD and |VSS| < 10 V; V1 = VDD/VSS, V2 =

VSS/VDD. See Test Circuit 6)

TPC 6. IDD vs. Supply Voltage: Dual or Single

Supply, TA = +25

°C
