M95128-W M95128-R M95128-DF
Description
Doc ID 5798 Rev 16
7/49

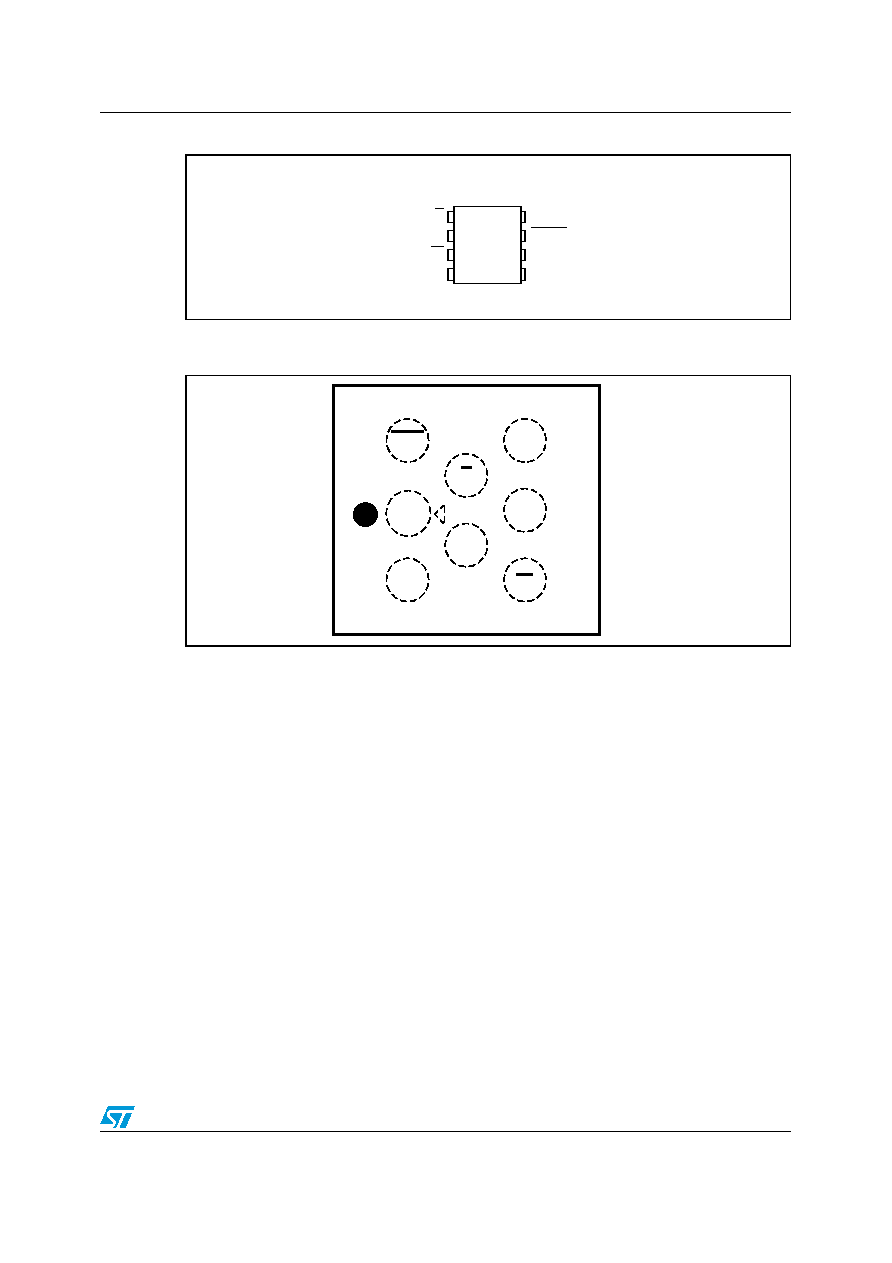

Figure 2.
8-pin package connections (top view)
1.
See Section 10: Package mechanical data section for package dimensions, and how to identify pin 1.
Figure 3.
WLCSP connections (top view, marking side, with balls on the underside)
Caution:
As EEPROM cells lose their charge (and so their binary value) when exposed to ultra violet
(UV) light, EEPROM dice delivered in wafer form or in WLCSP package by
STMicroelectronics must never be exposed to UV light.
D
VSS
C
HOLD
Q
SVCC
W
AI01790D
M95xxx
1
2
3
4
8
7
6
5
