Data Sheet
AD8205
Rev. | Page 7 of 12
2
µs/DIV
2V/DIV
100mV/DIV

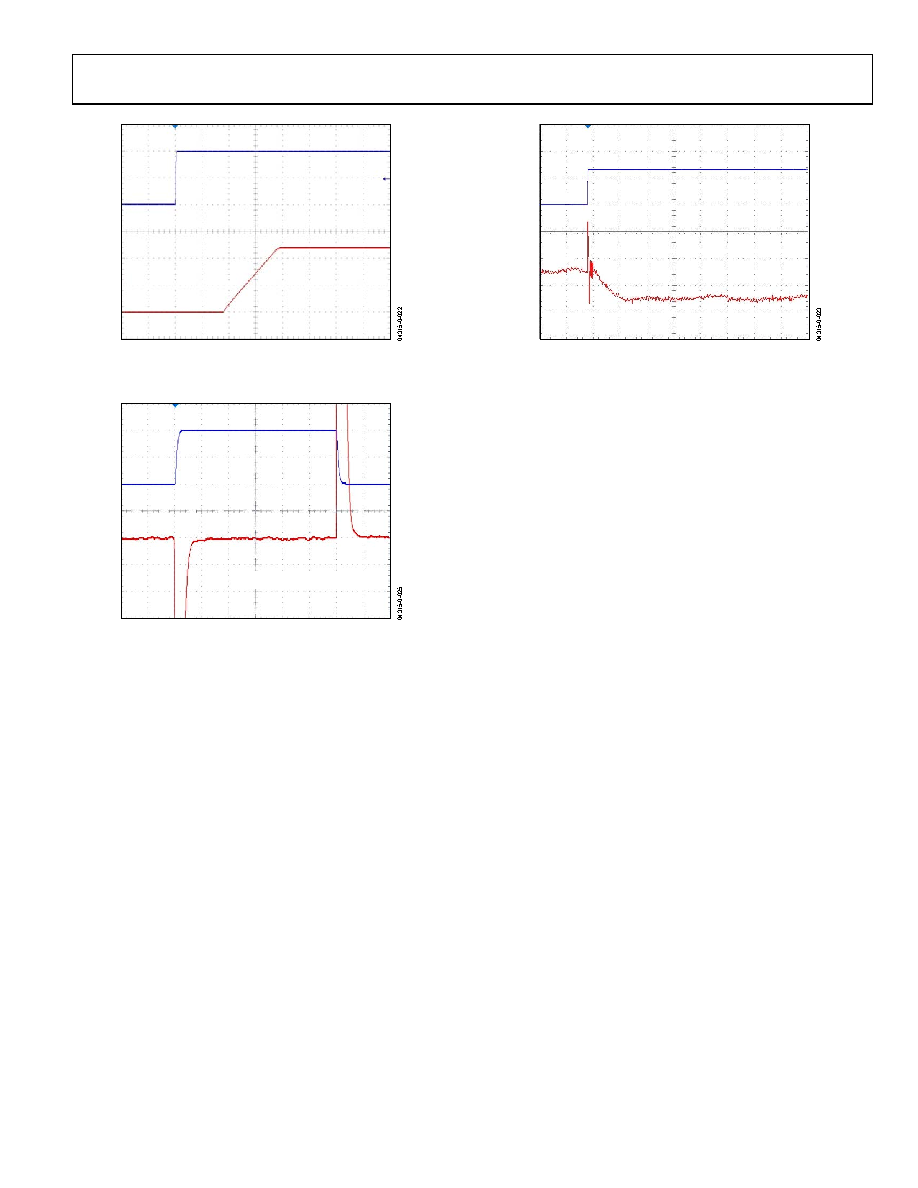

Figure 10. Differential Overload Recovery (Rising)
40
µs/DIV
2V/DIV
0.01%/DIV
Figure 11. Settling Time
1
µs/DIV
50V/DIV
50mV/DIV
Figure 12. Common-Mode Response
