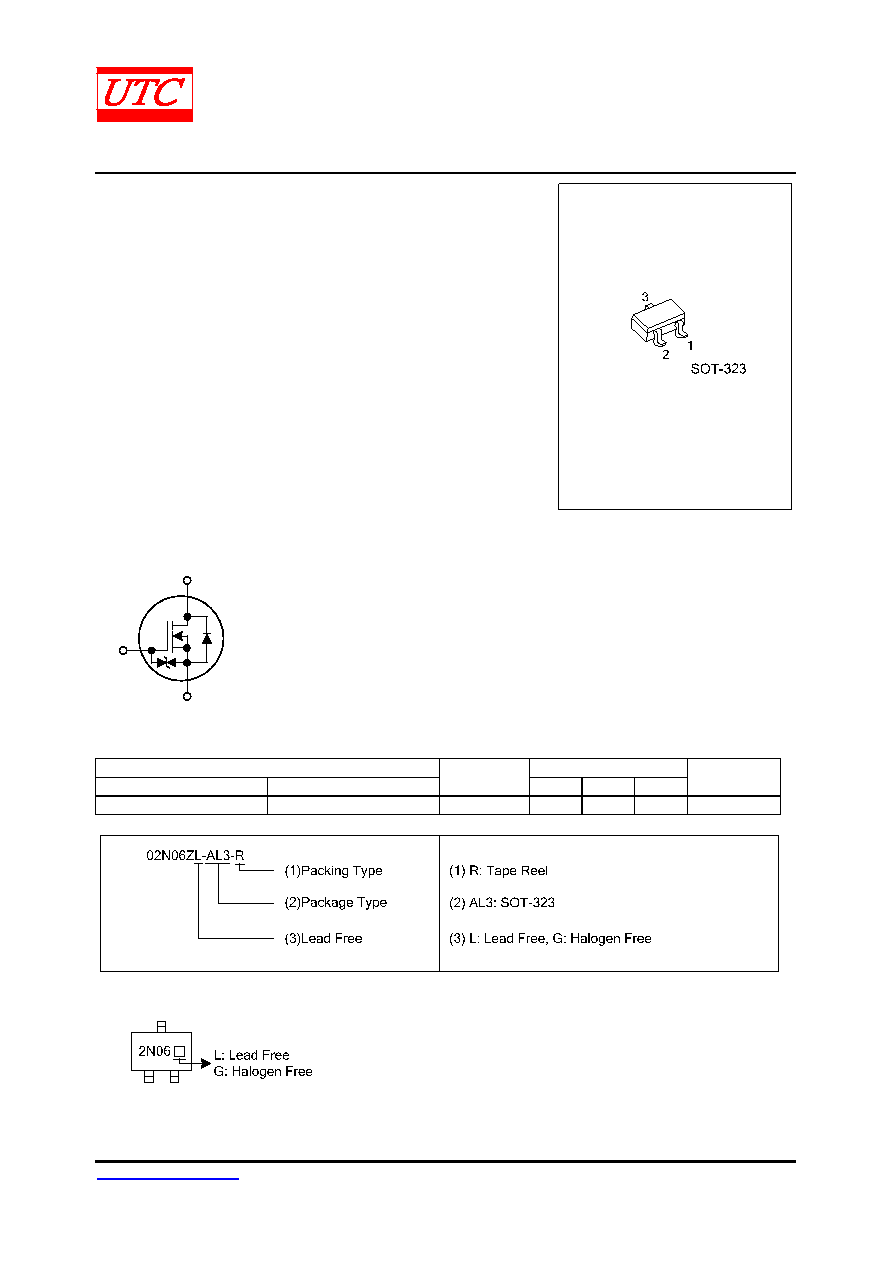

UNISONIC TECHNOLOGIES CO., LTD

02N06Z

Preliminary

Power MOSFET

www.unisonic.com.tw

1 of 4

QW-R502-906.a

0.2A, 60V SILICON N-CHANNEL

MOSFET

DESCRIPTION

The UTC 02N06Z is a silicon N-channel MOSFET, it uses UTC’s

advanced technology to provide the customers with a minimum on

state resistance, high switching speed and low gate charge.

FEATURES

* RDS(ON)<2.4Ω @ VGS=10V, ID=200mA

RDS(ON)<4.0Ω @ VGS=4V, ID=200mA

* High switching speed

* Low gate charge

* High ESD

SYMBOL

2. Gate

3. Drain

1. Source

ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

02N06ZL-AL3-R

02N06ZG-AL3-R

SOT-323

S

G

D

Tape Reel

Note: Pin Assignment: G: Gate D: Drain

S: Source

MARKING
