Oscilent Part Number

821-IF70.0M-R

January 2011 Rev A

70.0MHz IF SAW Filter 0.3 MHz Bandwidth

Product Specification

P. 1

www.oscilent.com

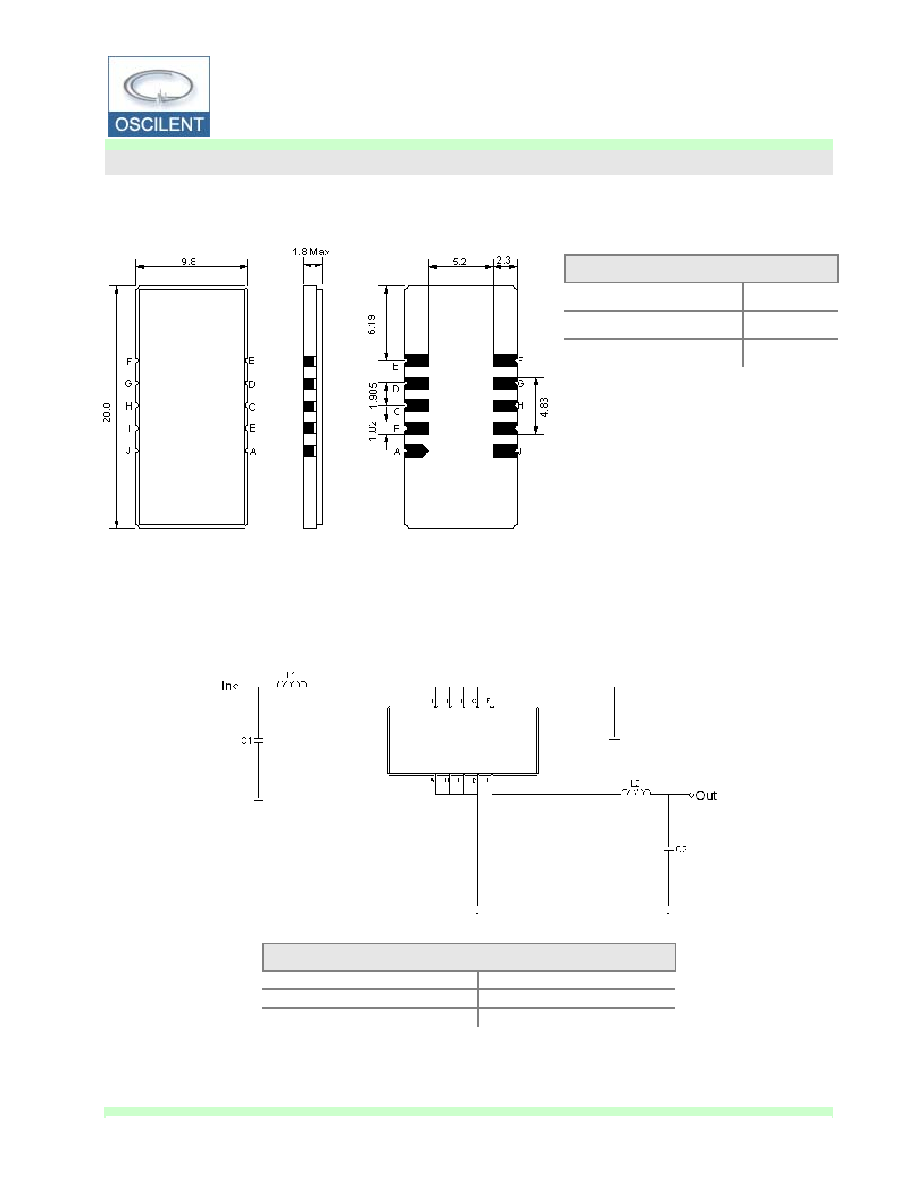

Mechanical Dimensions (mm)

Test Circuit

Pin Description

A, B, C, D, F, G, H, I Ground

J Input

E Output

Test Fixture & Values

Input L1=180nH, C1=33pF

Output L2=180nH, C2=33pF

Source/Load Impedance 50 Ω
