MLZ2012M100W Datasheet(PDF) 22 Page - TDK Electronics

Part # MLZ2012M100W
Description  Inductors for Decoupling Circuits Multilayer Ferrite
PDF  26 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TDK [TDK Electronics]
Direct Link  http://www.tdk.com
Logo TDK - TDK Electronics

MLZ2012M100W Datasheet(HTML) 22 Page - TDK Electronics

Back Button MLZ2012M100W Datasheet HTML 18Page - TDK Electronics MLZ2012M100W Datasheet HTML 19Page - TDK Electronics MLZ2012M100W Datasheet HTML 20Page - TDK Electronics MLZ2012M100W Datasheet HTML 21Page - TDK Electronics MLZ2012M100W Datasheet HTML 22Page - TDK Electronics MLZ2012M100W Datasheet HTML 23Page - TDK Electronics MLZ2012M100W Datasheet HTML 24Page - TDK Electronics MLZ2012M100W Datasheet HTML 25Page - TDK Electronics MLZ2012M100W Datasheet HTML 26Page - TDK Electronics
Zoom Inzoom in Zoom Outzoom out
 22 / 26 page
background image
(22/25)
INDUC
T
O
RS
001-01 / 20130929 / inductor_decoupling_mlz_en.fm
• All specifications are subject to change without notice.
MLZ series 
MLZ2012 Type
ELECTRICAL CHARACTERISTICS

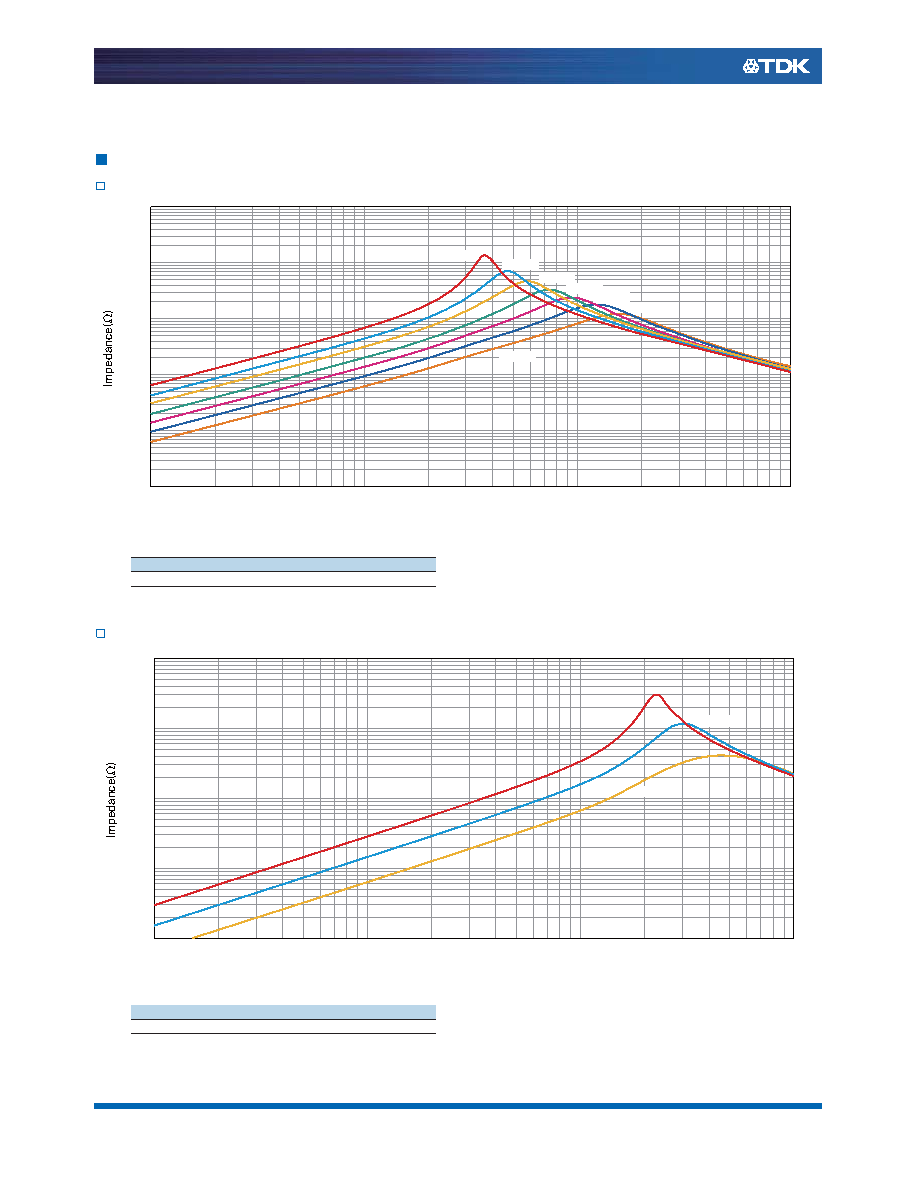

IMPEDANCE FREQUENCY CHARACTERISTICS GRAPH
 H CHARACTERISTIC PRODUCT
○ Measurement equipment
＊ Equivalent measurement equipment may be used.
IMPEDANCE FREQUENCY CHARACTERISTICS GRAPH
 D CHARACTERISTIC PRODUCT
○ Measurement equipment
＊ Equivalent measurement equipment may be used.
110
1000
100
1
100
1000
100000
10000
10
Frequency(MHz)
M1R0H
M1R5H
M2R2H
M3R3H
M4R7H
M6R8H
M100H
Product No.
Manufacturer
E4991A+16192A
Agilent Technologies
110
1000
100
1
100
1000
10000
10
Frequency(MHz)
DR10D
DR22D
DR47D
Product No.
Manufacturer
E4991A+16192A
Agilent Technologies
