MLZ series 
MLZ2012 Type
ELECTRICAL CHARACTERISTICS

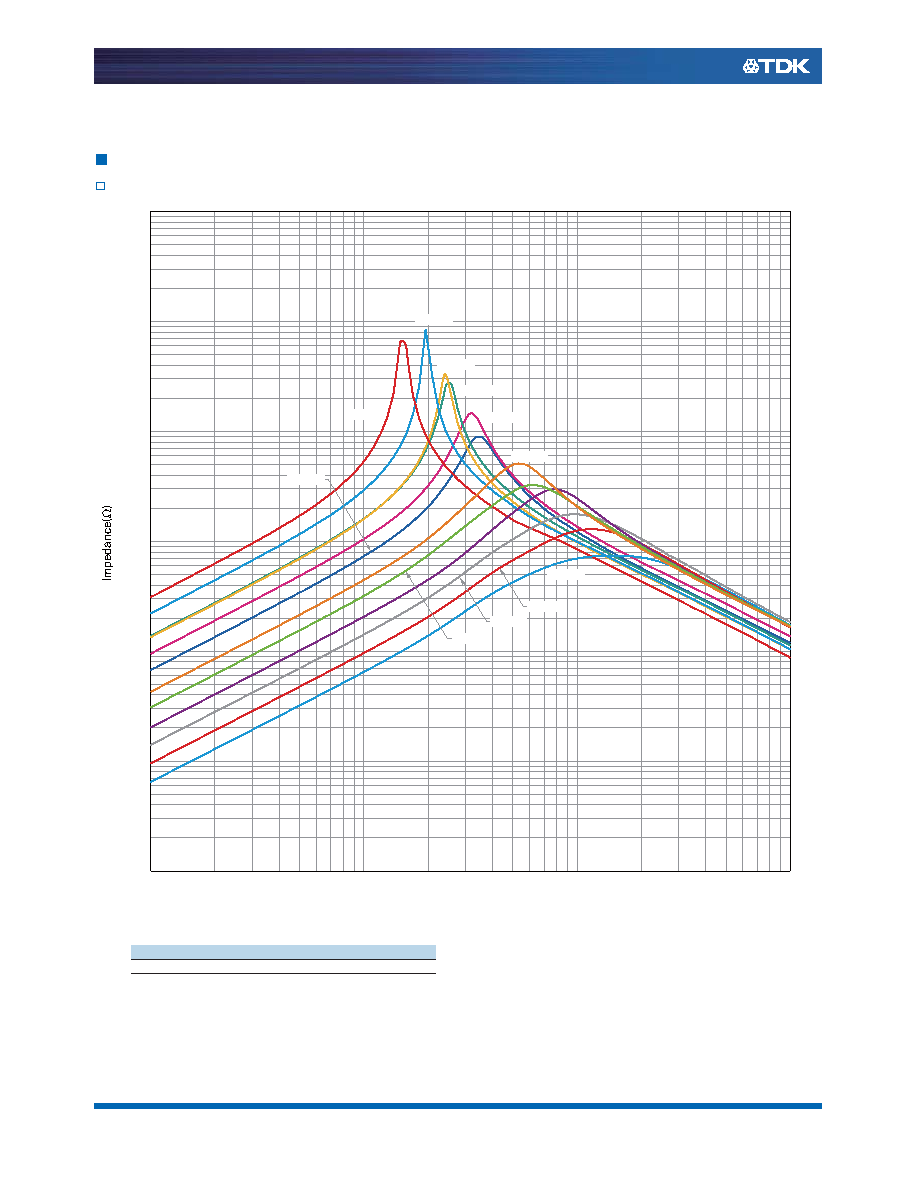

IMPEDANCE FREQUENCY CHARACTERISTICS GRAPH
 W CHARACTERISTIC PRODUCT
○ Measurement equipment
＊ Equivalent measurement equipment may be used.
110
1000
100
1
100
1000
1000000
100000
10000
10
Frequency(MHz)
M150W
M220W
P220W
M330W
M470W
A1R0W
M6R8W
A1R5W
A2R2W
M4R7W
A3R3W
M100W
Product No.
Manufacturer
E4991A+16192A
Agilent Technologies
