PLCC4 SMD Top View Package LED

SMP4-RGY, RED/GREEN/YELLOW

Bivar reserves the right to make changes at any time without notice.

Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.

Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com

Revision C

10/13

Page 2 of 5

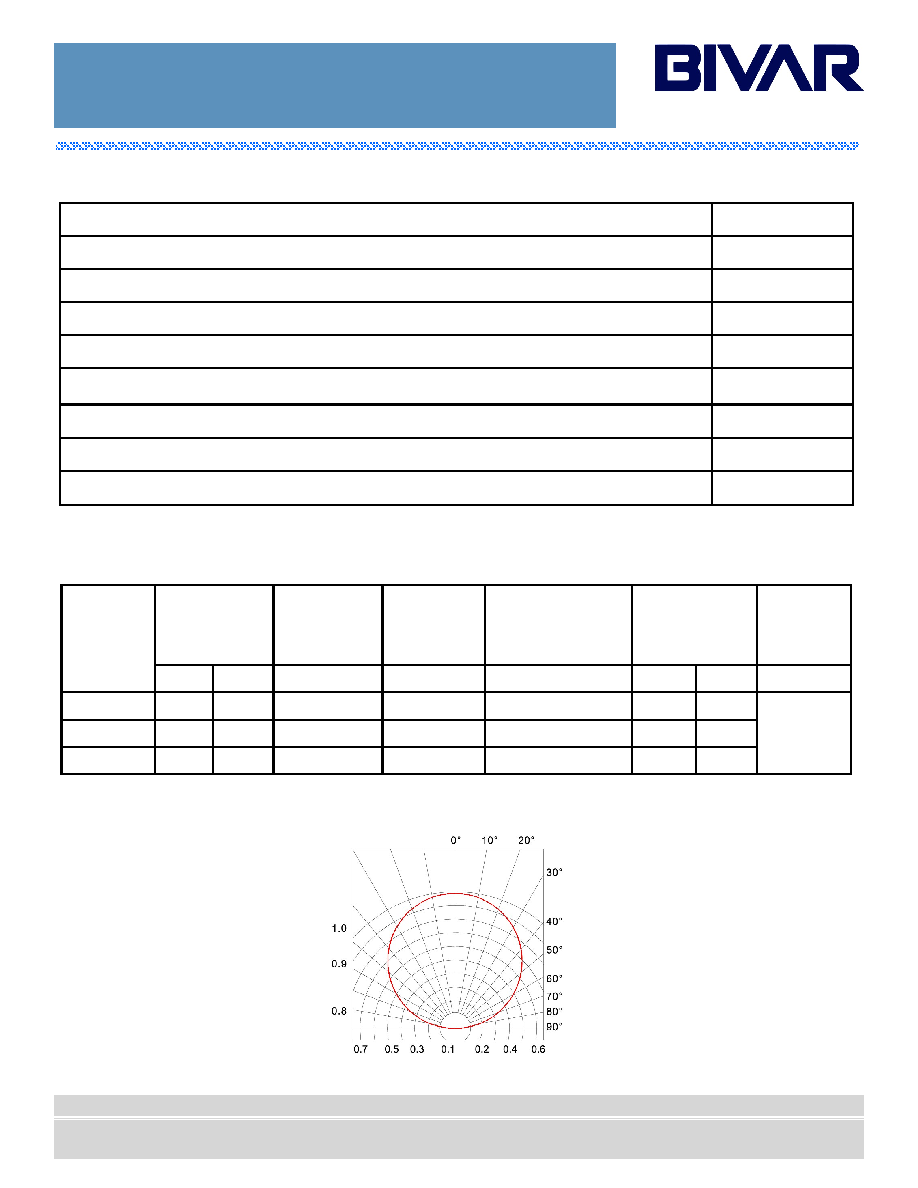

Radiation Diagram

Directivity Radiation

TA = 25°C unless otherwise noted

Electrical Characteristics

TA = 25°C & IF = 20 mA unless otherwise noted

Emitting

Color

Forward

Voltage (V)1

Recommend

Forward

Current (mA)

Reverse

Current (µA)

VR=5V

Dominant

Wavelength (nm)2

Luminous

Intensity (mcd)3

Viewing

Angle

2 Ө ½ (deg)

TYP

MAX

TYP

MAX

TYP

MIN

TYP

Red

1.85

2.3

640

120

Green

1.9

2.4

570

Yellow

1.9

2.4

585

1. Tolerance of Forward Voltage : ±0.05V.

2. Tolerance of Dominant Wavelength : ±0.1nm.

3. Tolerance of Luminous Intensity : ±15%.

Notes:

1. 10% Duty Cycle, Pulse Width ≤ 0.1 msec.

2. Solder time less than 5 seconds at temperature extreme.

Notes:

Absolute Maximum Ratings

TA = 25°C unless otherwise noted

Power Dissipation

72 mW

Continuous Forward Current

30 mA

Peak Forward Current 1

100 mA

Reverse Voltage

5 V

Electrostatic Discharge Classification (HBM)

2000 V

Derating Linear From 25°C

0.4 mA/°C

Operating Temperature Range

-40 ~ +85°C

Storage Temperature Range

-40 ~ +100°C

Soldering Temperature2

260°C
