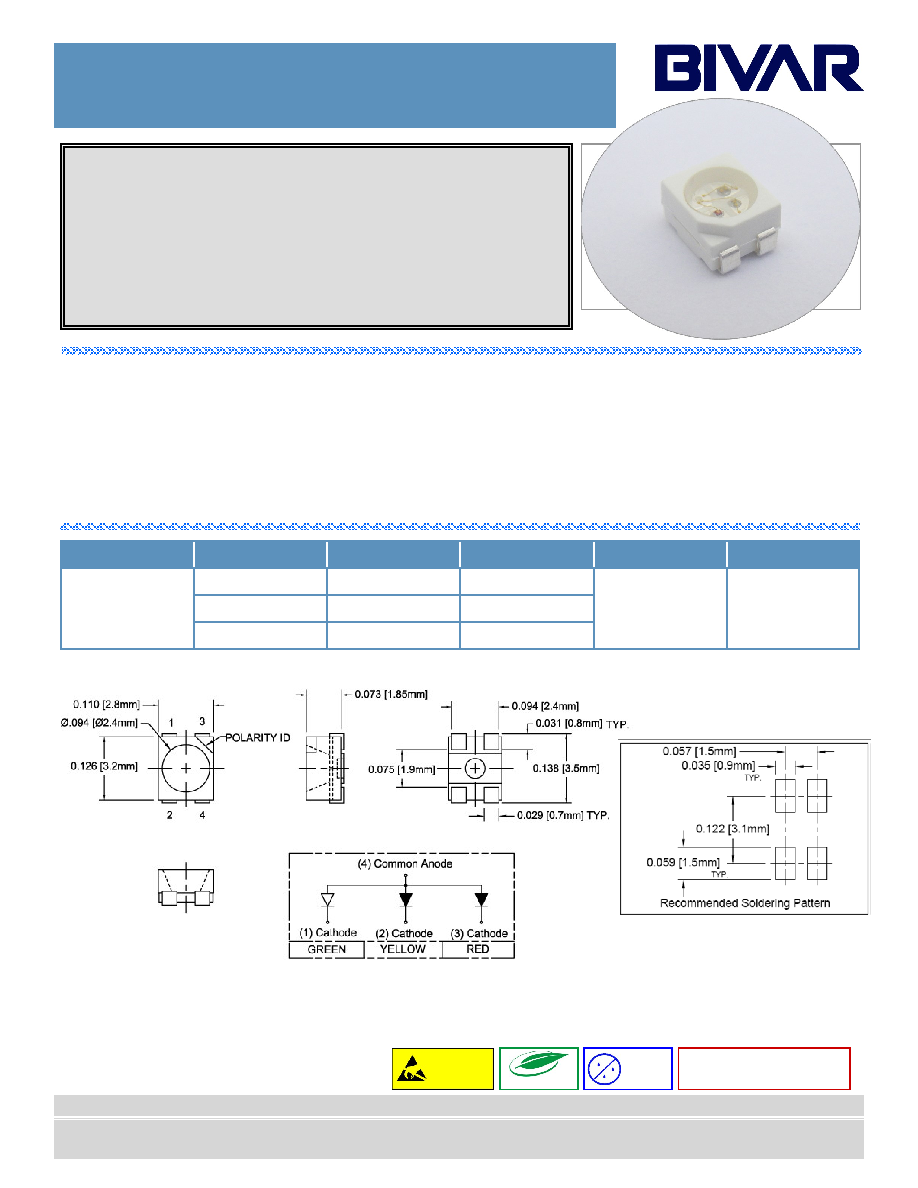

SMP4-RGY



Industry Standard PLCC4 Footprint



3 Chips in One Low Profile Package



High Luminous Intensity



Wide Viewing Angle



High Power Efficiency

PLCC4 SMD Top View Package LED

SMP4-RGY, RED/GREEN/YELLOW

Bivar reserves the right to make changes at any time without notice.

Bivar, Inc. — 4 Thomas, Irvine, California 92618, U.S.A.

Phone: (949) 951-8808 Fax: (949) 951-3974 E-mail: bivar@bivar.com Web: www.bivar.com

Revision C

10/13

Page 1 of 5

CAUTION: LOOKING DIRECTLY AT

LED WITHOUT SHIELDED EYES

MAY CAUSE DAMAGE TO RETINA.

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

SENSITIVE DEVICES

Moisture

Sensitivity

Levels 4

Outline Drawings Notes:

1. All dimensions are in inches [millimeters].

2. Standard tolerance: ±0.010" unless otherwise noted.

Outline Dimensions

Part Number

Material

Emitted Color

Lumen Typ. mcd

Lens Color

Viewing Angle

SMP4-RGY

AlGaAs

Red

36

Water Clear

120°

GaP

Green

40

GaAsP

Yellow

16

Bivar SMP4 Tri-Color LED combines three chips in a single package and is offered in an industry standard

PLCC4 footprint. The SMP4 LED has a water clear lens for high luminous intensity and wide viewing angle

making them ideal for small scale applications such as illumination, general indication, and backlighting. The

flexible three chip design allows for a wide variety of lighting options where the chips can be individually

driven or mixed to create different color combinations. The robust package is ideal for harsh working envi-

ronments and can be clustered in LED arrays for high luminous applications. Low power consumption and

excellent long life reliability are suitable for battery powered equipment. Bivar SMP4 LED is packaged in

standard tape and reels for pick and place assemblies.
