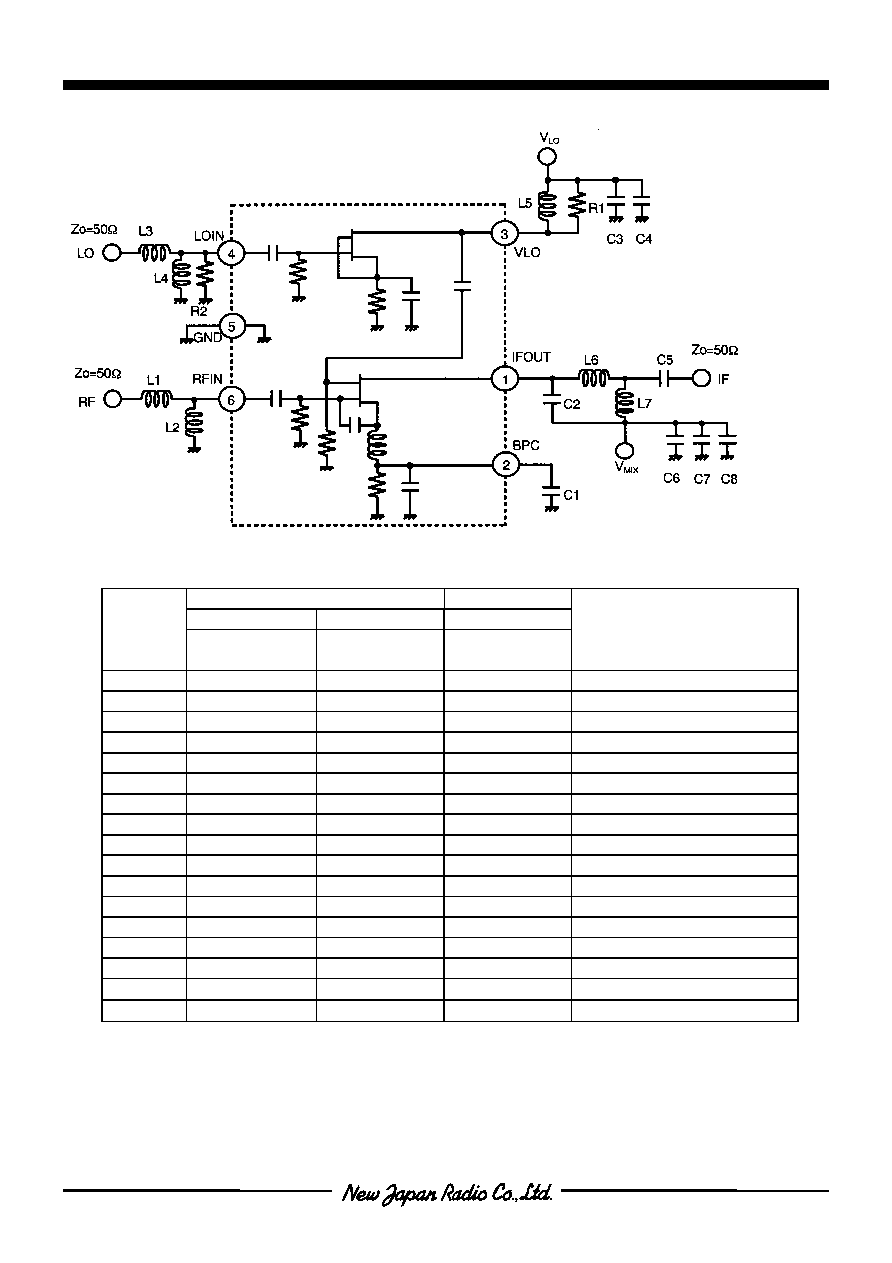

17 / 21 page  NJG1553F - 17 - nAPPLICATION CIRCUIT 1 PARTS LIST 2 1.9GHz Band 2.1GHz Band Lower LOCAL Lower LOCAL Lower LOCAL PART ID f LO=1634.62MHz fIF=220.38MHz fLO=1749.62MHz fIF=210.38MHz fLO=1914.62MHz fIF=220.38MHz COMMENT L1 6.8nH 6.8nH 4.7nH TAIYO-YUDEN(HK1608) L2 4.7nH 4.7nH 3.9nH TAIYO-YUDEN(HK1608) L3 12nH 12nH 10nH TAIYO-YUDEN(HK1608) L4 10nH 8.2nH 6.8nH TAIYO-YUDEN(HK1608) L5 6.8nH 5.6nH 4.7nH TAIYO-YUDEN(HK1608) L6 39nH 39nH 39nH TAIYO-YUDEN(HK1608) L7 22nH 22nH 22nH TAIYO-YUDEN(HK1608) C1 560pF 560pF 560pF MURATA(GRM39) C2 8pF 8pF 8pF MURATA(GRM39) C3 10pF 10pF 10pF MURATA(GRM39) C4 100pF 100pF 100pF MURATA(GRM39) C5 1000pF 1000pF 1000pF MURATA(GRM39) C6 10pF 10pF 10pF MURATA(GRM39) C7 100pF 100pF 100pF MURATA(GRM39) C8 1000pF 1000pF 1000pF MURATA(GRM39) R1 240 Ω 270 Ω 330 Ω TAMA Electronics(CRG16G) R2 430 Ω 390 Ω 470 Ω MURATA(GRM39) |
|
|
