NJG1553F
- 14 -

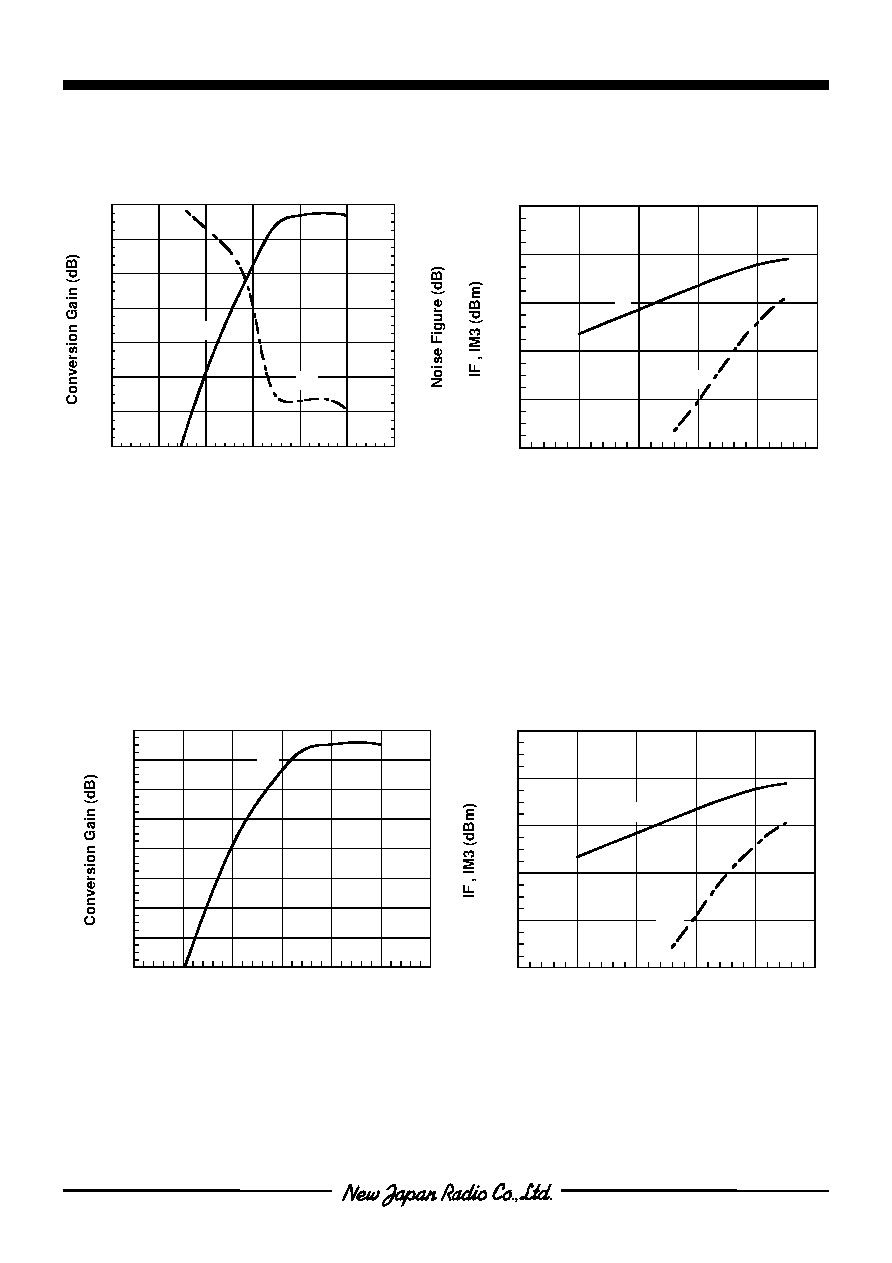

nTYPICAL CHARACTERISTICS (Application 1 1.9GHz, f
LO=1634.62MHz)
nTYPICAL CHARACTERISTICS (Application 1 1.9GHz, f
LO=1749.62MHz)
Condition
fIF=220.38MHz
fRF=1855MHz,PRF=-30dBm
fLO=1634.62MHz
VMIX=VLO=2.7V
Condition
fIF=220.38MHz
fRF1=1855.0MHz
fRF2=1855.1MHz
fLO=1634.62MHz,PLO=-10dBm
VMIX=VLO=2.7V
Condition
fIF=210.38MHz
fRF=1960MHz,PRF=-30dBm
fLO=1749.62MHz
VMIX=VLO=2.7V
Condition
fIF=210.38MHz
fRF1=1960.0MHz
fRF2=1960.1MHz
fLO=1749.62MHz,PLO=-10dBm
VMIX=VLO=2.7V
-6
-4
-2
0
2
4
6
8
6
8
10
12
14
16
18
20
-50
-40
-30
-20
-10
0
10
Conversion Gain , Noise Figure
vs. LO Power
LO Power (dBm)
Gc
NF
-80
-60
-40
-20
0
20
-50
-40
-30
-20
-10
0
IF , IM3 vs. RF Power
RF Power (dBm)
IF
IM3
-8
-6
-4
-2
0
2
4
6
8
-50
-40
-30
-20
-10
0
10
Conversion Gain vs. LO Power
LO Power (dBm)
Gc
-80
-60
-40
-20
0
20
-50
-40
-30
-20
-10
0
IF , IM3 vs. RF Power
RF Power (dBm)
IF
IM3
