NJG1553F
- 16 -

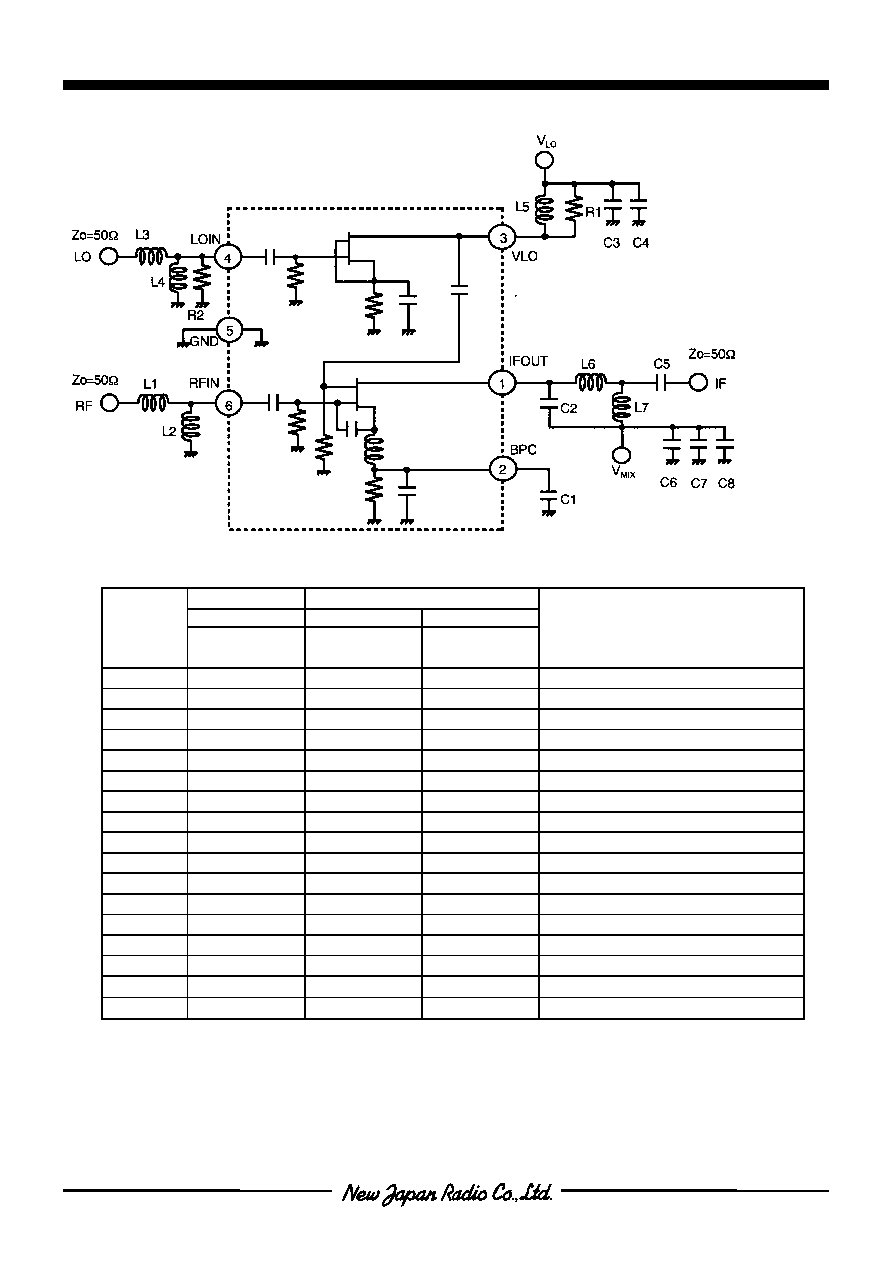

nAPPLICATION CIRCUIT 1
PARTS LIST 1
1.5GHz Band
1.9GHz BAND
Upper LOCAL
Lower LOCAL
Upper LOCAL
PART ID
fLO=1619MHz
fIF=130MHz
fLO=1660MHz
fIF=240MHz
fLO=2110MHz
fIF=210MHz
COMMENT
L1
10nH
6.8nH
4.7nH
TAIYO-YUDEN(HK1608)
L2
8.2nH
4.7nH
3.3nH
TAIYO-YUDEN(HK1608)
L3
12nH
12nH
6.8nH
TAIYO-YUDEN(HK1608)
L4
12nH
10nH
5.6nH
TAIYO-YUDEN(HK1608)
L5
6.8nH
5.6nH
3.9nH
TAIYO-YUDEN(HK1608)
L6
100nH
39nH
47nH
TAIYO-YUDEN(HK1608)
L7
47nH
15nH
27nH
TAIYO-YUDEN(HK1608)
C1
1000pF
560pF
560pF
MURATA(GRM39)
C2
11pF
8pF
8pF
MURATA(GRM39)
C3
100pF
100pF
100pF
MURATA(GRM39)
C4
100pF
100pF
100pF
MURATA(GRM39)
C5
1000pF
1000pF
1000pF
MURATA(GRM39)
C6
10pF
10pF
10pF
MURATA(GRM39)
C7
100pF
100pF
100pF
MURATA(GRM39)
C8
1000pF
1000pF
1000pF
MURATA(GRM39)
R1
270
Ω
270
Ω
240
Ω
TAMA Electronics(CRG16G)
R2
270
Ω
470
Ω
430
Ω
TAMA Electronics(CRG16G)
