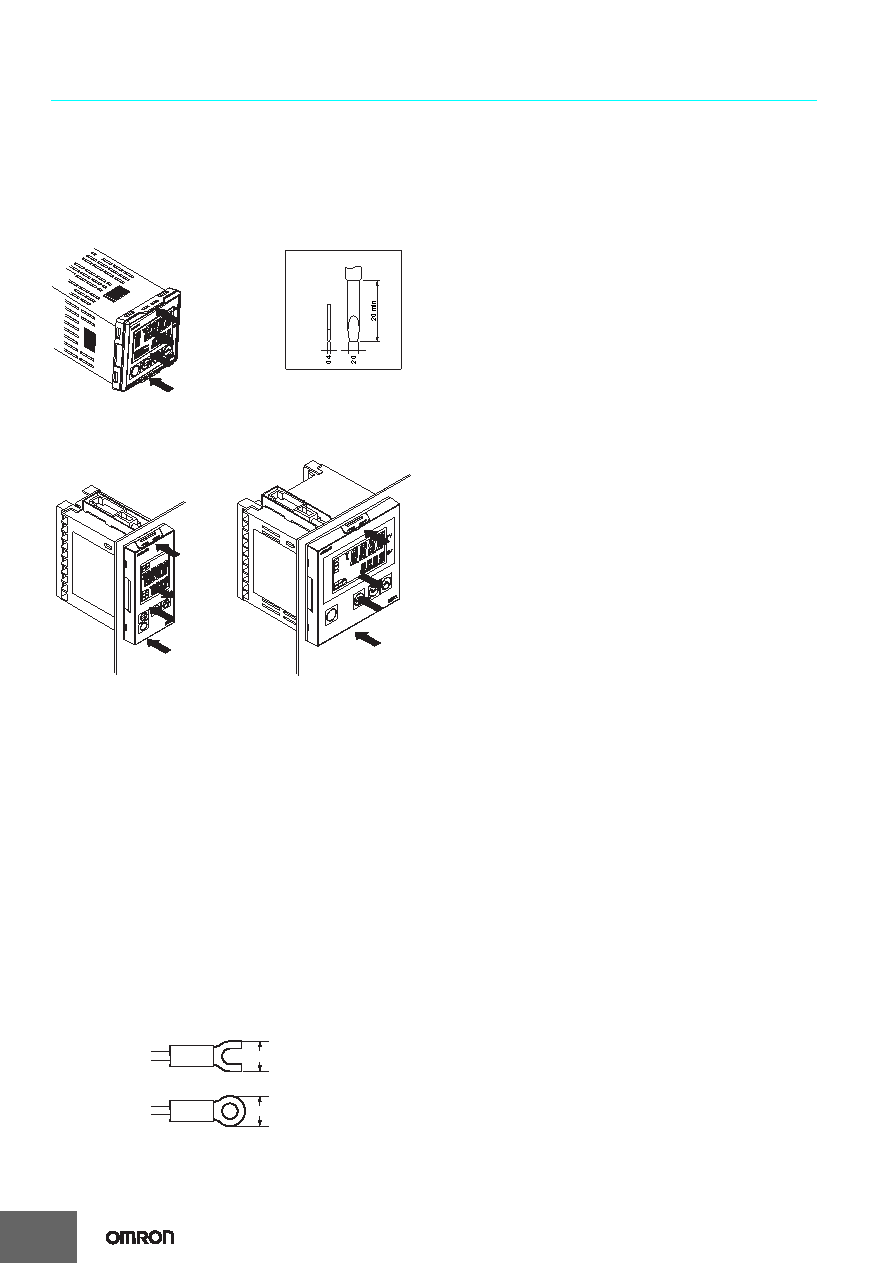

Removing the Temperature Controller from the

Case

E5CZ/EZ/AZ

The Temperature Controller can be removed from the case to perform

maintenance without removing the terminal leads. This is possible for

only the E5CZ, E5AZ, and E5EZ, and not for the E5CZ-U. Check the

specifications of the case and Temperature Controller before

removing the Temperature Controller from the case.

1. Insert a flat-blade screwdriver into the two tool insertion holes (one

on the top and one on the bottom) to release the hooks.

2. Insert the flat-blade screwdriver in the gap between the front panel

and rear case, and pull out the front panel slightly. Hold the top and

bottom of the front panel and carefully pull it out toward you,

without applying unnecessary force.

3. When inserting the E5CZ/EZ/AZ, check to make sure that the

sealing rubber is in place and push the E5CZ/EZ/AZ toward the

rear case until it snaps into position. While pushing the E5CZ/EZ/

AZ into place, push down on the hooks on the top and bottom

surfaces of the rear case so that the hooks are securely locked in

place. Be sure that electronic components do not come into

contact with the case.

Precautions when Wiring

• Separate input leads and power lines in order to prevent external

noise.

• Use wires with a gage of AWG24 (cross-sectional area:

0.205 mm2) to AWG14 (cross-sectional area: 2.081 mm2) twisted-

pair cable (stripping length: 5 to 6 mm).

• Use crimp terminals when wiring the terminals.

• Tighten the terminal screws to a torque of 0.74 to 0.90 N·m.

• Use the following types of crimp terminals for M3.5 screws.

• Do not remove the terminal block. Doing so may result in

malfunction or failure.

E5AZ

E5EZ

(2)

(3)

(1)

(2)

(3)

(1)

E5CZ/CZ-U

(2)

(3)

(1)

Flat-blade screwdriver

(Unit: mm)

7.2 mm max.
