ADP5300
Data Sheet
Rev. 0 | Page 10 of 21
TEMPERATURE (°C)
797
798
799
800
801
–40
25
85
125

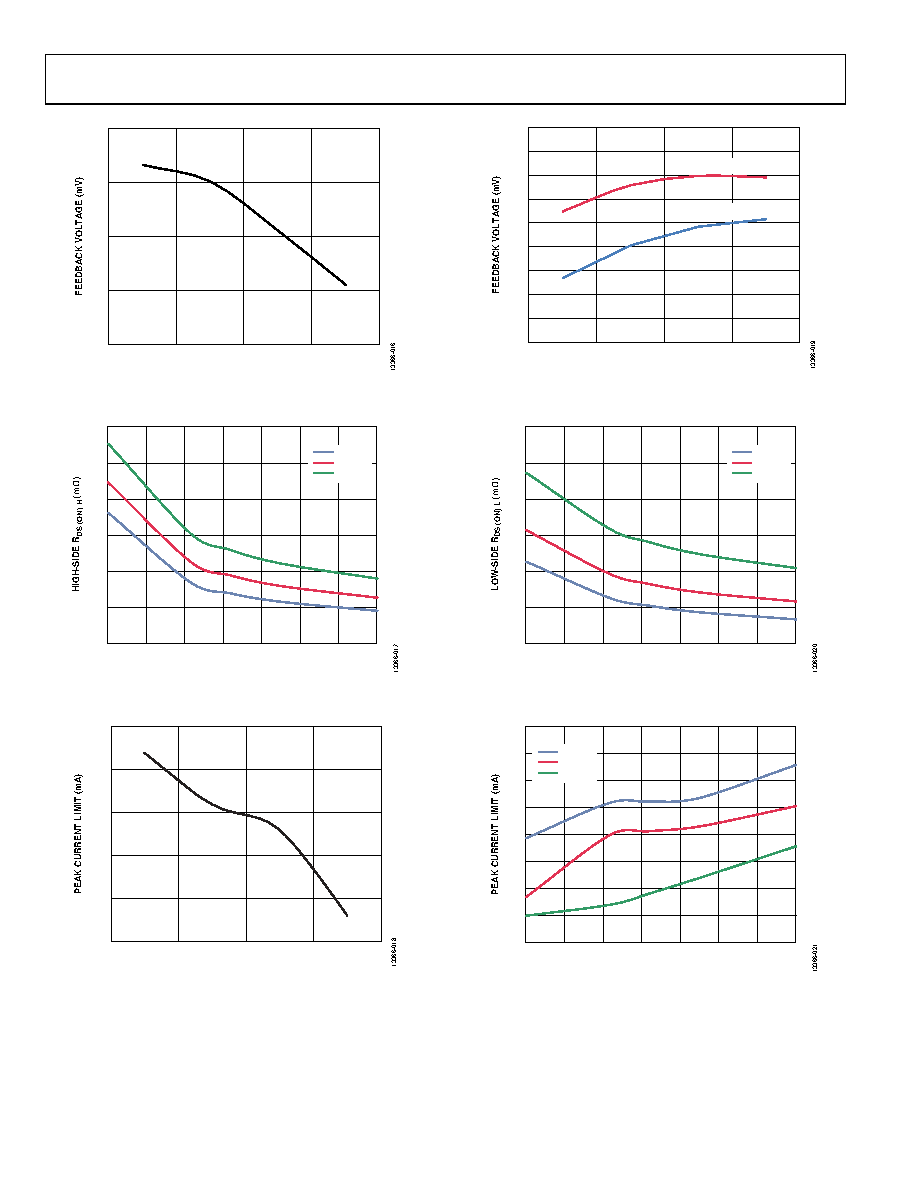

Figure 16. Feedback Voltage vs. Temperature, PWM Mode
VIN (V)
2.3
2.9
3.5
4.1
4.7
5.3
5.9
6.5
100
200
300
400
500
600
700
–40ºC
+25ºC
+125ºC
Figure 17. High-Side RDS (ON) H vs. VIN
TEMPERATURE (°C)
–40
25
85
125
840
890
940
990
1040
1090
Figure 18. Peak Current Limit vs. Temperature
TEMPERATURE (°C)
–40
25
85
125
792
794
796
798
800
802
804
806
808
810
ACTIVE TO STANDBY
STANDBY TO ACTIVE
Figure 19. Feedback Voltage vs. Temperature, Hysteresis Mode
VIN (V)
2.3
2.9
3.5
4.1
4.7
5.3
5.9
6.5
–40ºC
+25ºC
+125ºC
100
150
200
250
300
350
400
Figure 20. Low-Side RDS (ON)L vs. VIN
VIN (V)
2.3
2.9
3.5
4.1
4.7
5.3
5.9
6.5
800
850
900
950
1000
1050
1100
1150
1200
–40ºC
+25ºC
+125ºC
Figure 21. Peak Current Limit vs. VIN
