Detection mode functionality

28

10.3

Phase three: “resuming normal mode”

The sequence for re-entering normal mode is shown in the following table and diagram.

Note:

For proper device operation the “entering error detection mode” sequence must be followed

by a “resume mode” sequence, it is not possible to insert consecutive equal sequences.

Table 13. Resuming normal mode truth table

CLK

1°2°3°4°5°

OE/DM2

H

L

HHH

LE/DM1

LLLLL

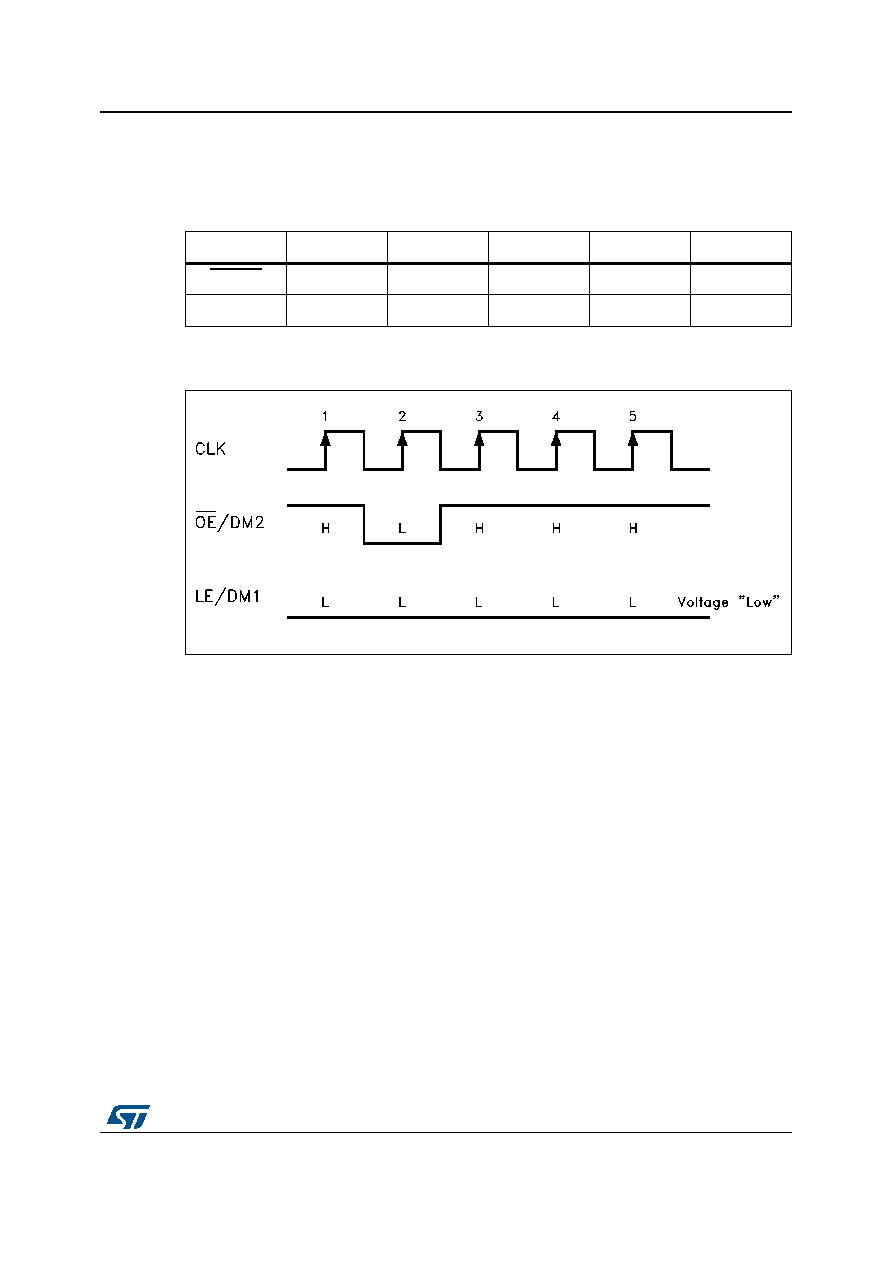

Figure 19. Resuming normal mode timing diagram

AM13661V1
