CAT6243
www.onsemi.com
9

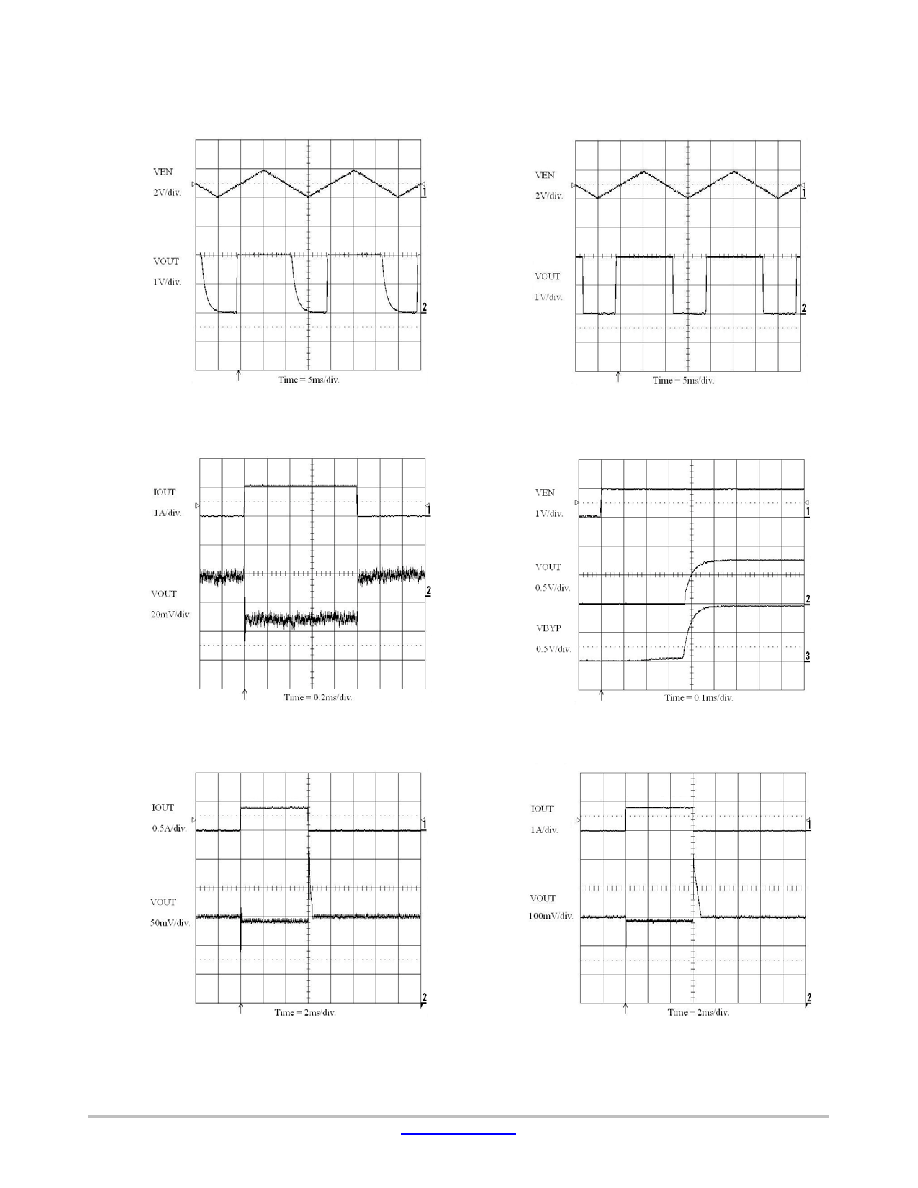

TRANSIENT CHARACTERISTICS
(shown for VOUT = 2.0 V, VIN = 3.0 V, IOUT = 1 mA, CIN = 1 mF, COUT = 4.7 mF, CBYP = 0, and TA = 25°C unless otherwise specified.)
Figure 21. Slow Enable Operation (1 mA Load)
Figure 22. Slow Enable Operation
(1000 mA Load)
Figure 23. Load Transient Response
(1 mA to 1000 mA)
Figure 24. Enable Turn−On (1 mA Load)
(VOUT = 0.8 V and VIN = 1.8 V)
Figure 25. Load Transient Response (1 mA to
400 mA) (VOUT = 0.8 V and VIN = 1.8 V)
Figure 26. Load Transient Response (1 mA to
800 mA) (VOUT = 0.8 V and VIN = 1.8 V)
