TDA9201

WIDE BAND VIDEO PREAMPLIFIER

September 1993

PRELIMINARY DATA

1

2

3

4

5

6

7

8

9

10

20

19

18

17

16

15

14

13

12

11

INPUT

CONTRAST PREADJUST

SUPPLY VOLTAGE

SMALL SIGNAL GROUND

BULK

BULK

POWER GROUND

OUTPUT

H-SYNC

BRIGHTNESS CAPACITOR

VOLTAGE REFERENCE

CONTRAST ADJUST

SMALL SIGNAL GROUND

BULK

POWER GROUND

OUTPUT

BLANKING INPUT

BRIGHTNESS ADJUST

BULK

NOT CONNECTED

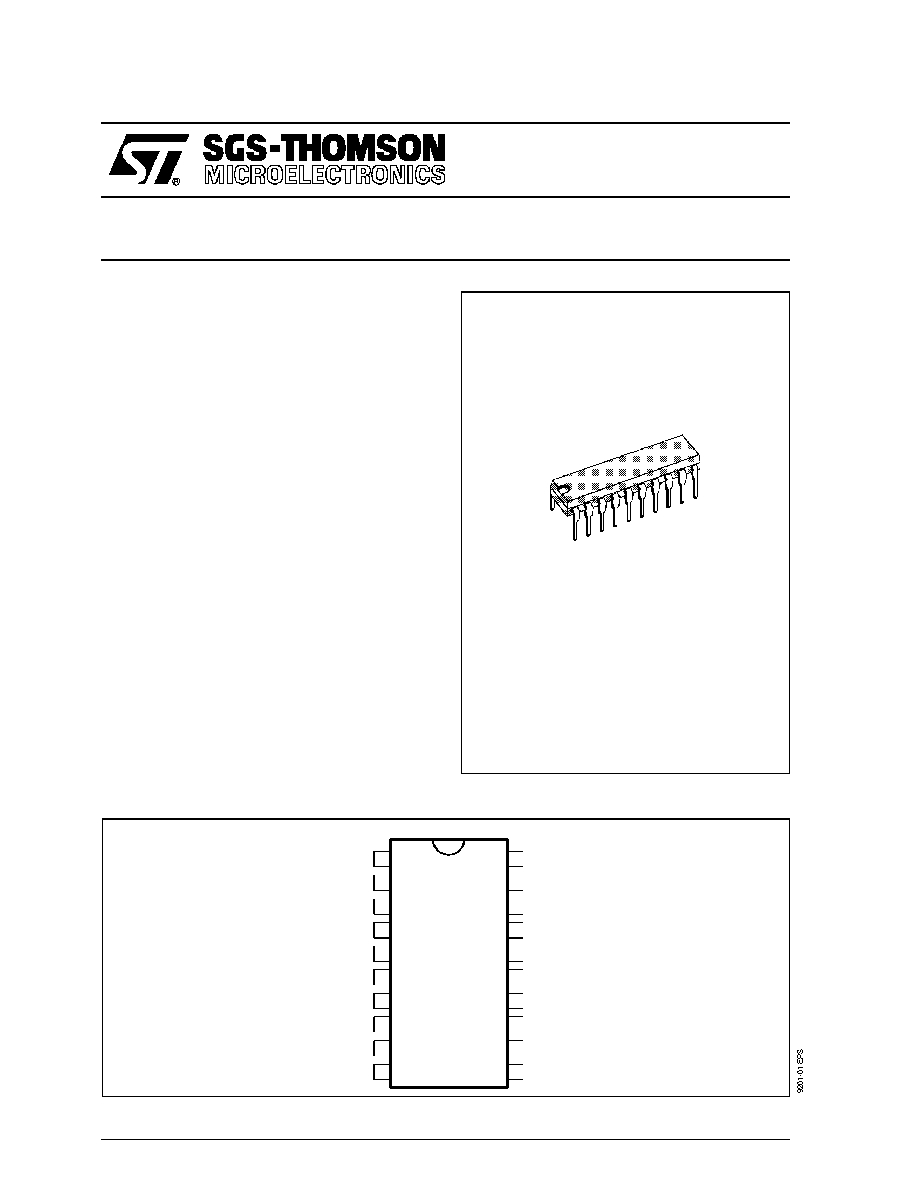

PIN CONNECTIONS

POWERDIP20

(Plastic Package)

ORDER CODE : TDA9201

s

CURRENT OUTPUT (up to 300mA)

s

120MHz (-3dB) BANDWIDTH

s

3nsec RISE/FALL TIME

s

BRIGHTNESS AND CONTRAST DC CON-

TROLLED

s

INTERNAL CLAMPING PULSE GENERATOR

s

CONTRAST

PRE-ADJUST

FOR

COLOR

MONITOR APPLICATION

s

INTERNAL REFERENCE VOLTAGE GENER-

ATOR

s

BLANKING PULSE INPUT

s

POS/NEG SYNC POLARITY INPUT

DESCRIPTION

The TDA9201 is a wide band video amplifier in-

tended for high resolution monochrome or color

monitors.

The BRIGHTNESS and CONTRAST are DC con-

trolled.

The brightness loop includes a comparator gated

by an internally generated pulse.

Thanks to the contrast pre-adjust pin, this device is

well suited for color application too.

The output stage structure (A class current output),

allows to use a very cheap high voltage amplifier

using only one transistor.

This advanced information on a ne w product now in de velopment or undergoing evaluation. Details are sub ject to ch ange without notice.

1/12
