AD8224ACPZ-R7 Datasheet(PDF) 19 Page - Analog Devices |
|
|
|||||||||||||||||||||||||||||
AD8224ACPZ-R7 Datasheet(HTML) 19 Page - Analog Devices |
|
|

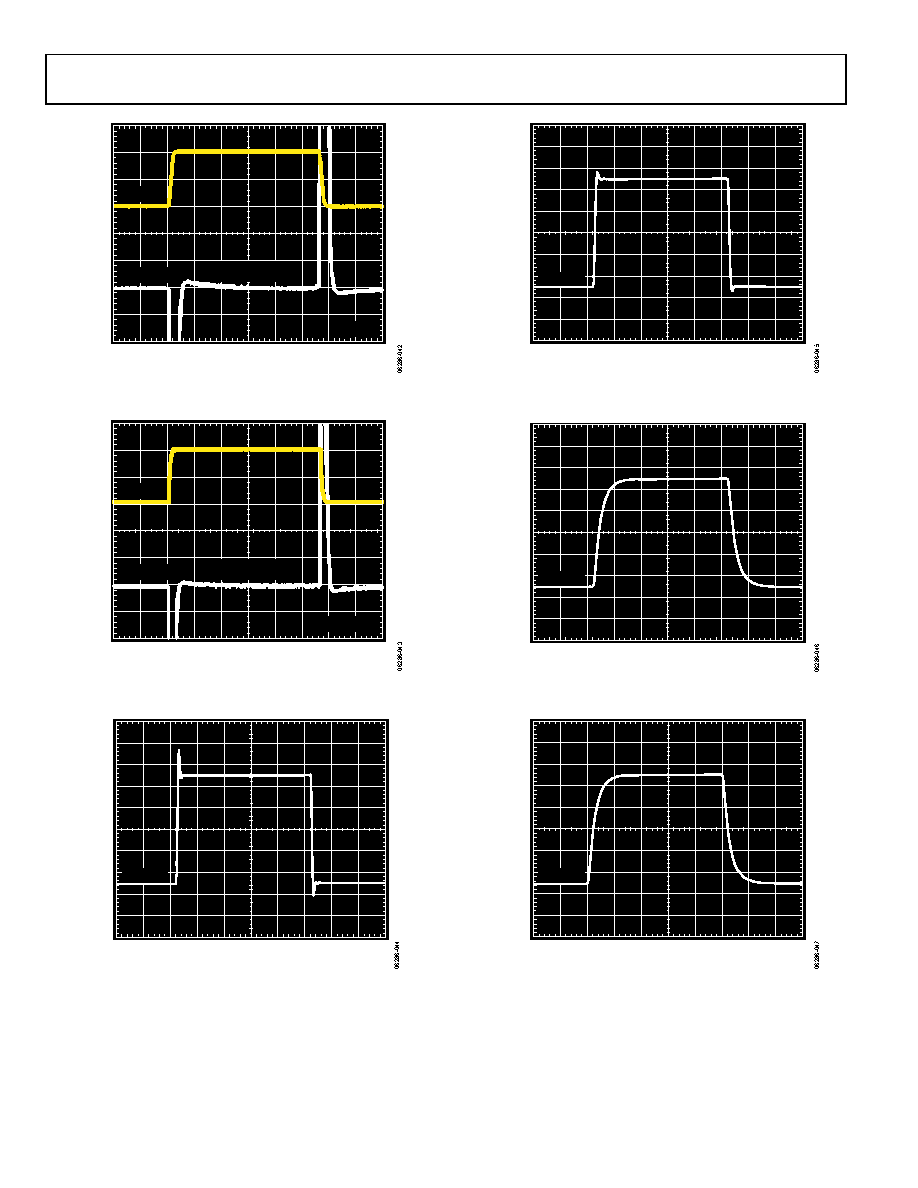

19 / 29 page  AD8224 Data Sheet Rev. D | Page 18 of 28 XX XX XX XX XXX (X) 20µs/DIV 8.1μs TO 0.01% 9.6μs TO 0.001% 0.002%/DIV 5V/DIV Figure 41. Large Signal Pulse Response and Settle Time, G = 100, RLOAD = 10 kΩ, VS = ±15 V, VREF = 0 V XX XX XX XX XXX (X) 200µs/DIV 58μs TO 0.01% 74μs TO 0.001% 0.002%/DIV 5V/DIV Figure 42. Large Signal Pulse Response and Settle Time, G = 1000, RLOAD = 10 kΩ, VS = ±15 V, VREF = 0 V XXX 4µs/DIV 20mV/DIV Figure 43. Small Signal Pulse Response, G = 1, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = ±15 V, VREF = 0 V XXX 4µs/DIV 20mV/DIV Figure 44. Small Signal Pulse Response, G = 10, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = ±15 V, VREF = 0 V XXX 4µs/DIV 20mV/DIV Figure 45. Small Signal Pulse Response, G = 100, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = ±15 V, VREF = 0 V XXX 20mV/DIV 40µs/DIV Figure 46. Small Signal Pulse Response, G = 1000, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = ±15 V, VREF = 0 V |
|
