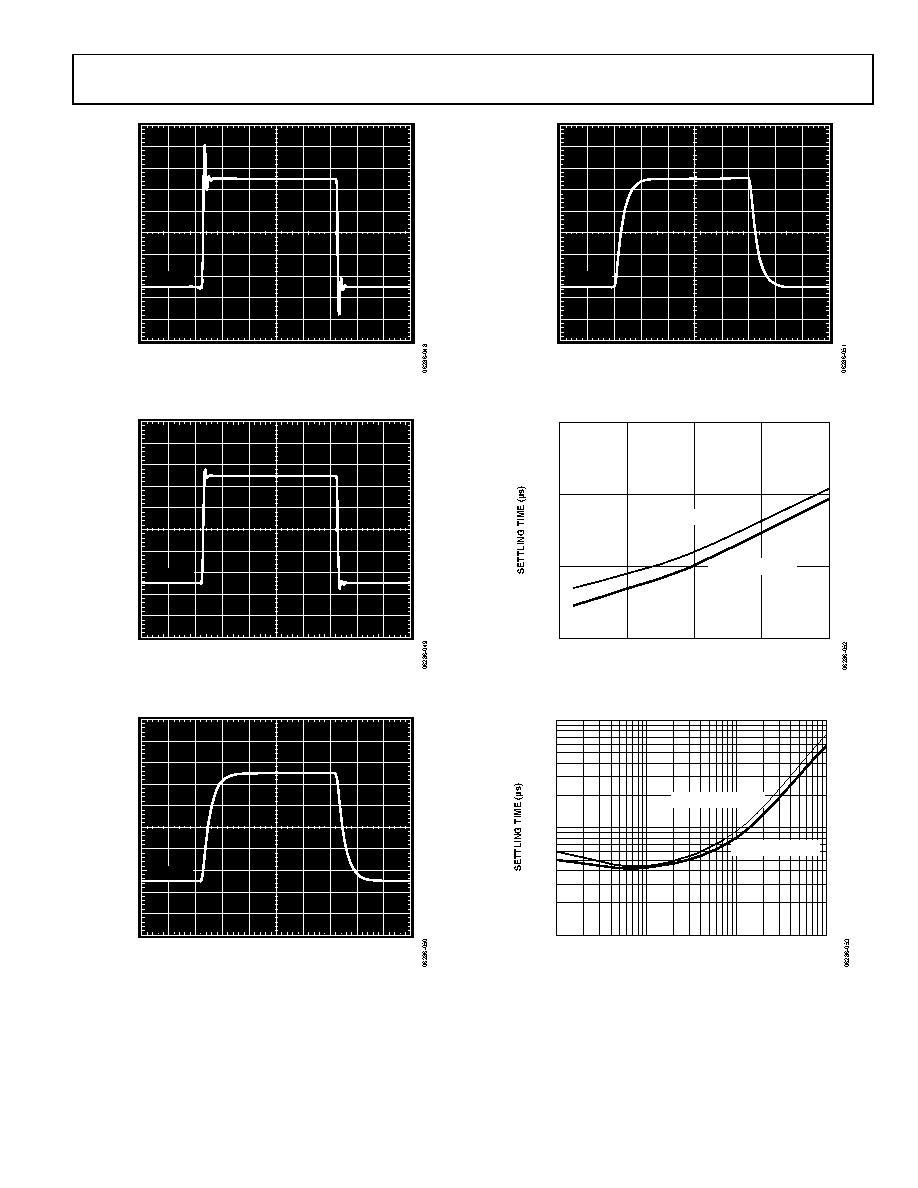

20 / 29 page ![]() Data Sheet AD8224 Rev. D | Page 19 of 28 XXX 4µs/DIV 20mV/DIV Figure 47. Small Signal Pulse Response, G = 1, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = 5 V, VREF = 2.5 V XXX 4µs/DIV 20mV/DIV Figure 48. Small Signal Pulse Response, G = 10, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = 5 V, VREF = 2.5 V XXX 4µs/DIV 20mV/DIV Figure 49. Small Signal Pulse Response, G = 100, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = 5 V, VREF = 2.5 V XXX 40µs/DIV 20mV/DIV Figure 50. Small Signal Pulse Response, G = 1000, RLOAD = 2 kΩ, CLOAD = 100 pF, VS = 5 V, VREF = 2.5 V 15 0 0 20 OUTPUT VOLTAGE STEP SIZE (V) 10 5 5 10 15 SETTLED TO 0.01% SETTLED TO 0.001% Figure 51. Settling Time vs. Output Voltage Step Size, (G = 1) ±15 V, VREF = 0 V 100 1 1 1000 GAIN (V/V) 10 100 10 SETTLED TO 0.01% SETTLED TO 0.001% Figure 52. Settling Time vs. Gain for a 10 V Step, VS = ±15 V, VREF = 0 V |
|
