Mitsubishi microcomputers

M16C / 62A Group

SINGLE-CHIP 16-BIT CMOS MICROCOMPUTER

Clock asynchronous serial I/O (UART) mode

130

(b) Function for switching serial data logic (UART2)

When the data logic select bit (bit 6 of address 037D16) is assigned 1, data is inverted in writing to the

transmission buffer register or reading the reception buffer register. Figure 1.16.20 shows the ex-

ample of timing for switching serial data logic.

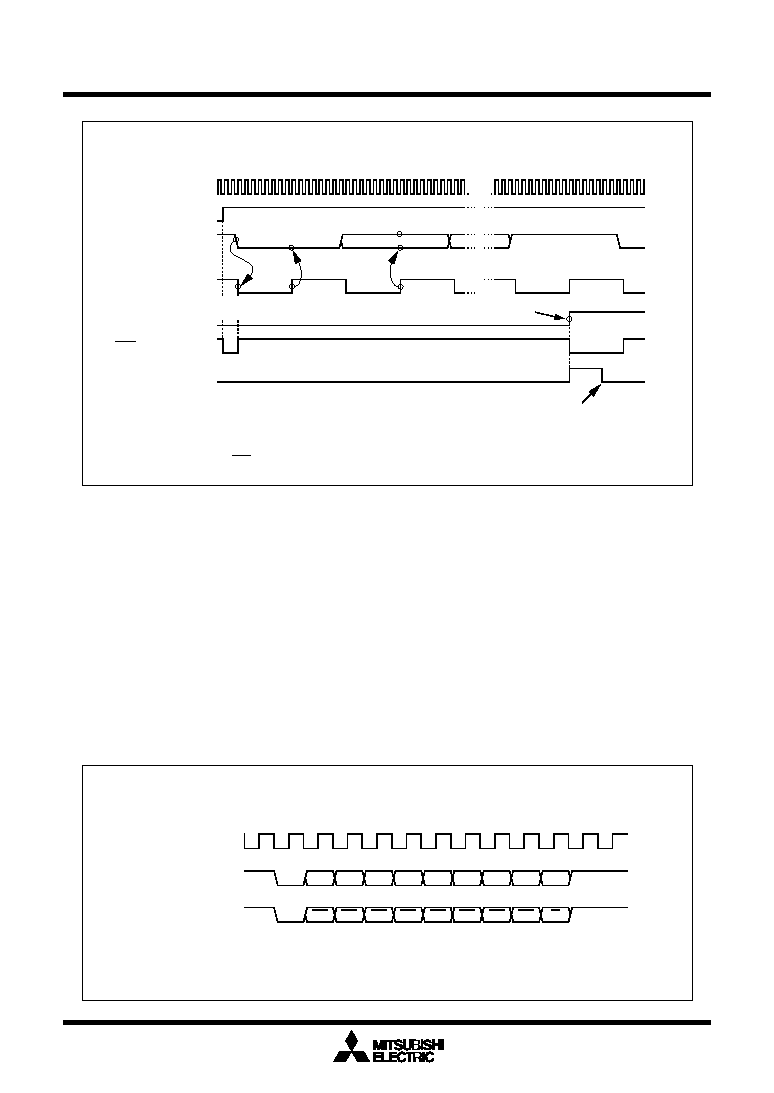

Figure 1.16.20. Timing for switching serial data logic

ST : Start bit

P : Even parity

SP : Stop bit

Transfer clock

TxD2

(no reverse)

TxD2

(reverse)

“H”

“L”

“H”

“L”

“H”

“L”

• When LSB first, parity enabled, one stop bit

• Example of receive timing when transfer data is 8 bits long (parity disabled, one stop bit)

Figure 1.16.19. Typical receive timing in UART mode

(a) Sleep mode (UART0, UART1)

This mode is used to transfer data between specific microcomputers among multiple microcomputers

connected using UARTi. The sleep mode is selected when the sleep select bit (bit 7 at addresses

03A016, 03A816) is set to “1” during reception. In this mode, the unit performs receive operation when

the MSB of the received data = “1” and does not perform receive operation when the MSB = “0”.

Start bit

Sampled “L”

Receive data taken in

BRGi count

source

Receive enable bit

RxDi

Transfer clock

Receive

complete flag

RTSi

Stop bit

“1”

“0”

“1”

“H”

“L”

The above timing applies to the following settings :

•Parity is disabled.

•One stop bit.

•RTS function is selected.

Receive interrupt

request bit

“0”

“1”

Transferred from UARTi receive register to

UARTi receive buffer register

Reception triggered when transfer clock

is generated by falling edge of start bit

Cleared to “0” when interrupt request is accepted, or cleared by software
