Flux Bins

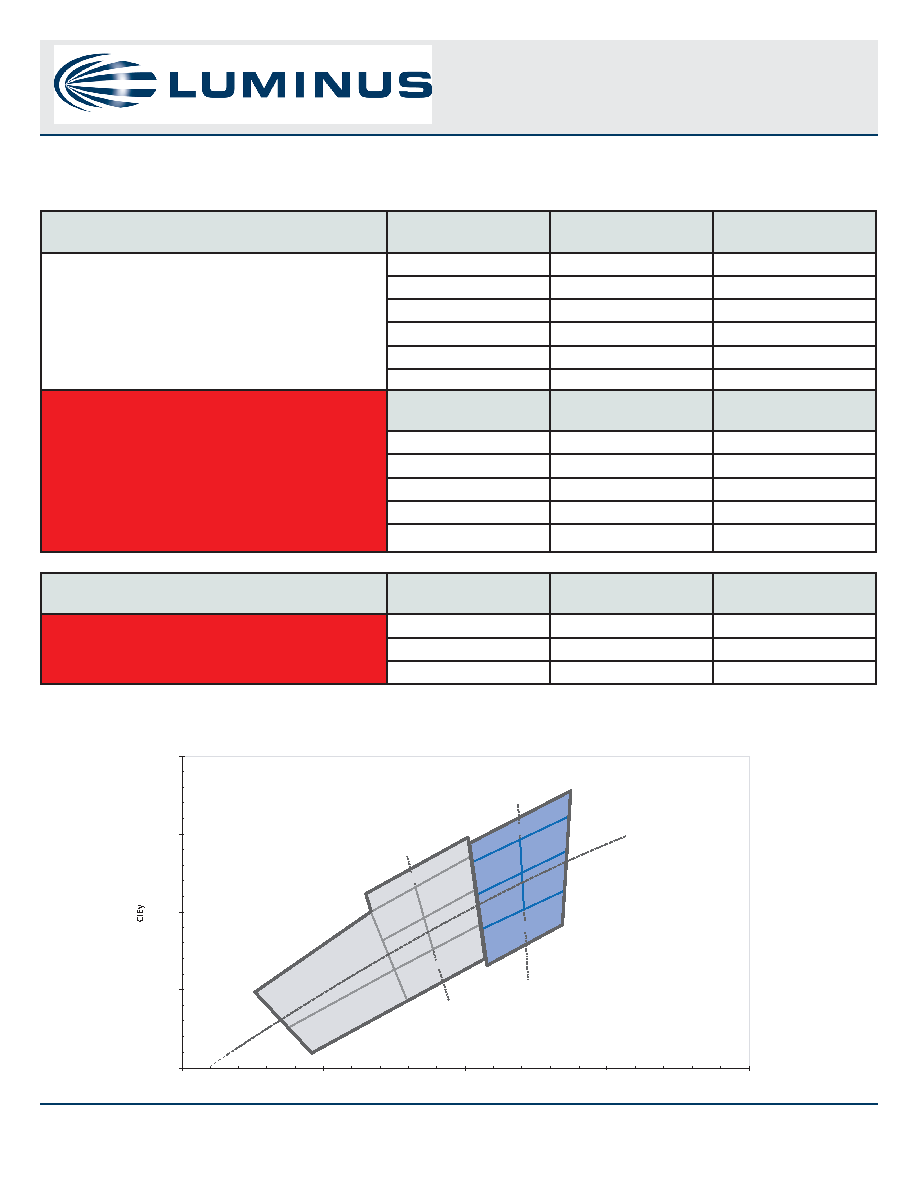

SBT-90 Binning Structure

SBT-90 LEDs are tested for luminous flux and chromaticity of the drive current specified below and placed into one of the following

luminous flux (FF) and chromaticity (WW) bins:

Color

Flux Bin (FF)

Minumum Flux (lm) @

9.0A

Maximum Flux (lm) @

9.0A

W57S/ W65S

5700K / 6500K, Standard CRI (typ. 70)

NA

1,590

1,710

NB

1,710

1,830

PA

1830

1966

PB

1966

2100

QA

2100

2260

QB

2260

2420

Chromaticity Bins

Luminus’Standard Chromaticity Bins: 1931 CIE Curve

Red

Flux Bin (FF)

Minumum Flux (lm) @

13.5A

Minumum Flux (lm) @

13.5A

BM

770

970

BN

970

1150

BP

1150

1350

BQ

1350

1570

BR

1570

1850

Color

Wavelength Bin (WW)

Minimum Wavelength

@ 13.5A

Maximum Wavelength

@ 13.5A

Red

R3

615

619

R4

619

623

R5

623

627

Wavelength Bins

0.380

0.355

0.330

0.305

0.280

0.270

0.295

0.320

0.345

0.370

CIEx

BB Locus

6500

5700

DE

EF

EH

H4

J4

H3

J3

DJ

F4

G4

G3

F3

DF

DG

*Note:

Luminus maintains a +/- 6% tolerance on flux measurements.

Luminus maintains a +/- 2% tolerance on CRI measurements.

SBT-90 Product Datasheet
