Data Sheet
ADRF5019
Rev. 0 | Page 9 of 12

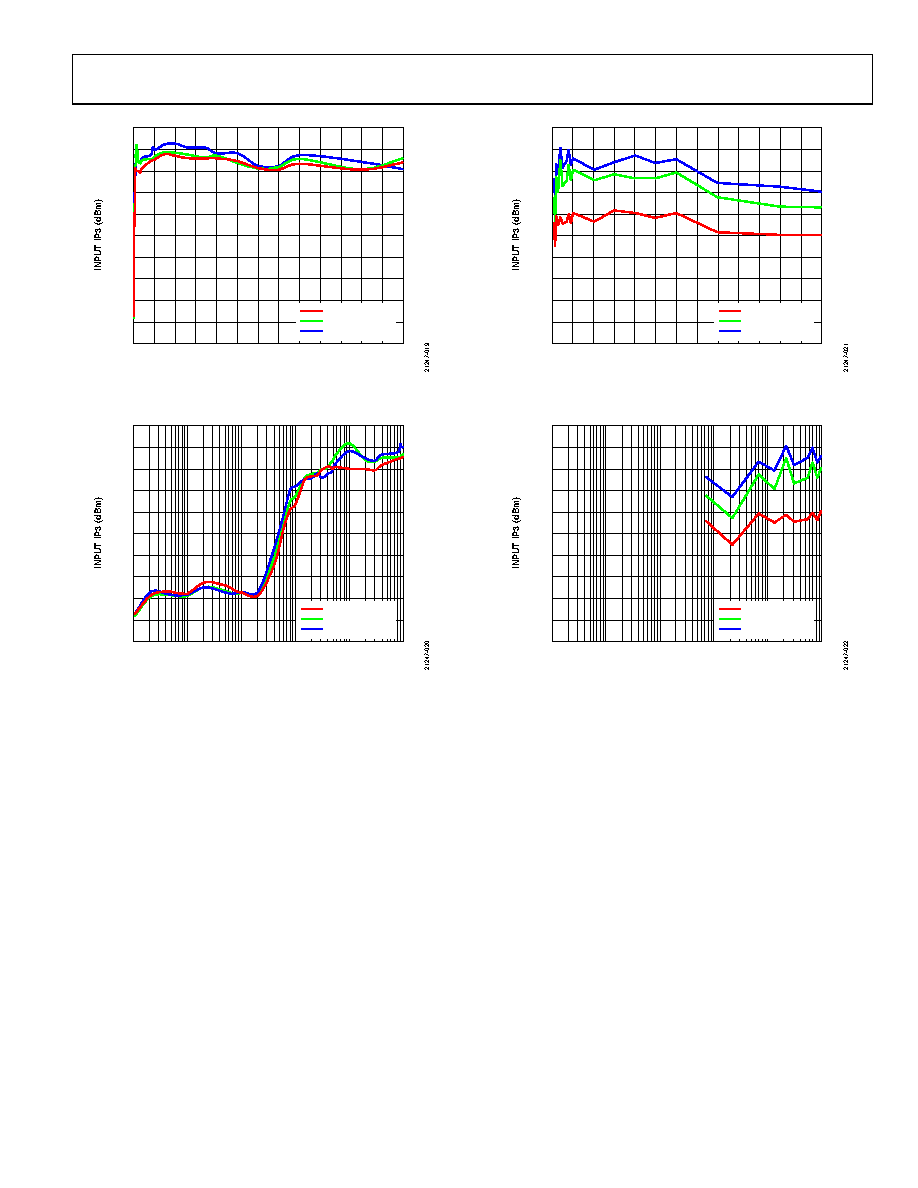

Figure 19. Input IP3 vs. Frequency over Temperature, VSS = −2.5 V
Figure 20. Input IP3 vs. Frequency over Temperature (Low Frequency Detail),
VSS = −2.5 V
Figure 21. Input IP3 vs. Frequency over Temperature, VSS = 0 V
Figure 22. Input IP3 vs. Frequency over Temperature (Low Frequency Detail),
VSS = 0 V
70
20
25
30
35
40
45
50
55
60
65
0
1
2
3
4
5
6
7
8
9
10
11
12
13
FREQUENCY (GHz)
TCASE = –40°C
TCASE = +25°C
TCASE = +105°C
70
20
25
30
35
40
45
50
55
60
65
0.01
0.1
1
10
100
1000
FREQUENCY (MHz)
TCASE = –40°C
TCASE = +25°C
TCASE = +105°C
70
20
25
30
35
40
45
50
55
60
65
0
1
2
3
4
5
6
7
8
9
10
11
12
13
FREQUENCY (GHz)
TCASE = –40°C
TCASE = +25°C
TCASE = +105°C
70
20
25
30
35
40
45
50
55
60
65
0.01
0.1
1
10
100
1000
FREQUENCY (MHz)
TCASE = –40°C
TCASE = +25°C
TCASE = +105°C
