Data Sheet

ADL5569

Rev. C | Page 9 of 23

3.5

3.0

2.5

0.5

1.0

1.5

2.0

FREQUENCY (GHz)

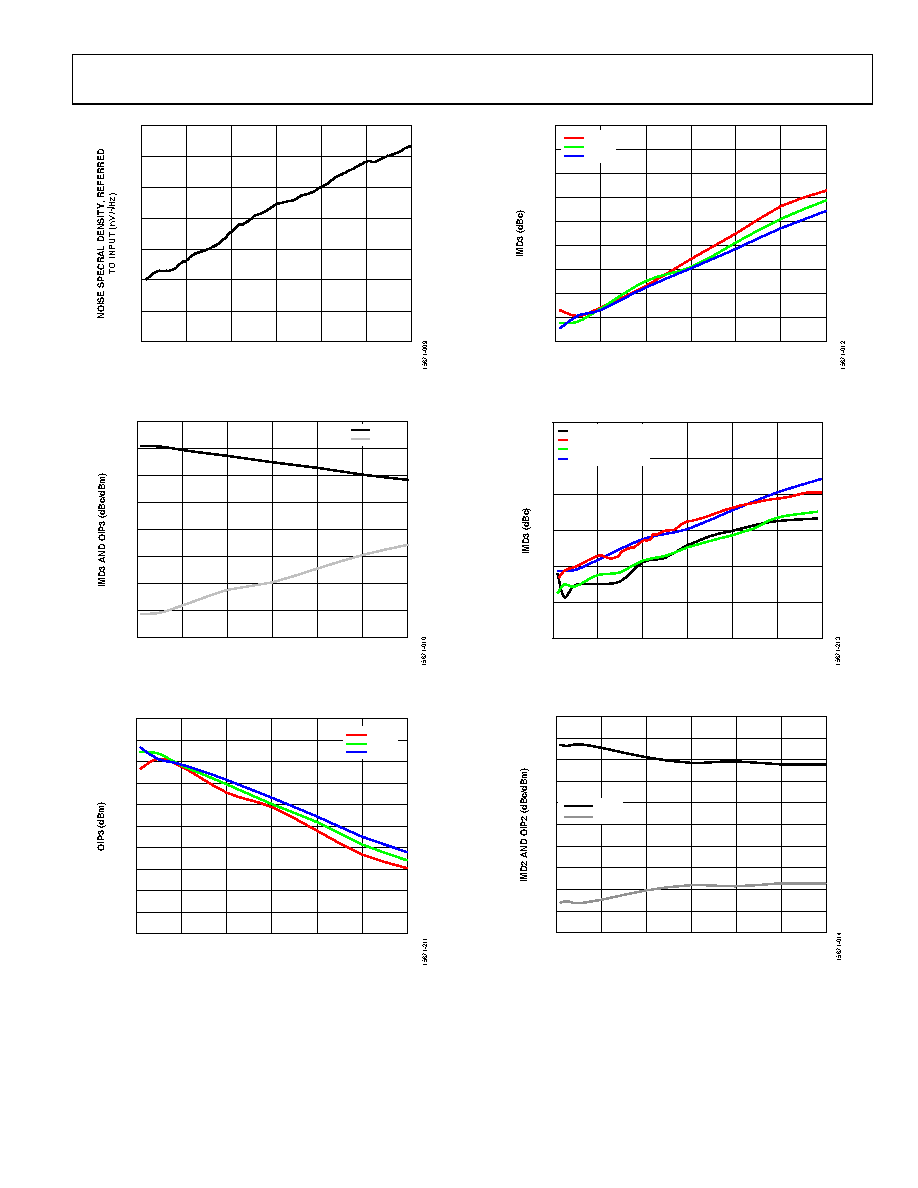

Figure 9. Noise Spectral Density, Referred to Input vs. Frequency

–100

–80

–60

–40

–20

OIP3

IMD3

FREQUENCY (GHz)

Figure 10. Third-Order Intermodulation Distortion (IMD3) and Output

Third-Order Intercept (OIP3) vs. Frequency

FREQUENCY (GHz)

+85°C

+25°C

–40°C

Figure 11. OIP3 vs. Frequency over Temperature

–90

FREQUENCY (GHz)

–80

–70

–60

–50

–40

–30

–20

–10

+85°C

+25°C

–40°C

Figure 12. IMD3 vs. Frequency over Temperature

–120

–100

–80

–60

–40

–20

FREQUENCY (GHz)

RL = 200Ω, 0.5V p-p

RL = 200Ω, 1V p-p

RL = 100Ω, 0.5V p-p

RL = 100Ω, 1V p-p

Figure 13. IMD3 vs. Frequency over RLOAD for POUT per Tone

100

–100

–80

–60

–40

–20

FREQUENCY (GHz)

OIP2

IMD2

Figure 14. Second-Order Intermodulation Distortion (IMD2) and Output

Second-Order Intercept (OIP2) vs. Frequency
