Data Sheet

ADPA7008

BIASING ADPA7008 WITH THE HMC980LP4E

analog.com

Rev. 0 | 27 of 28

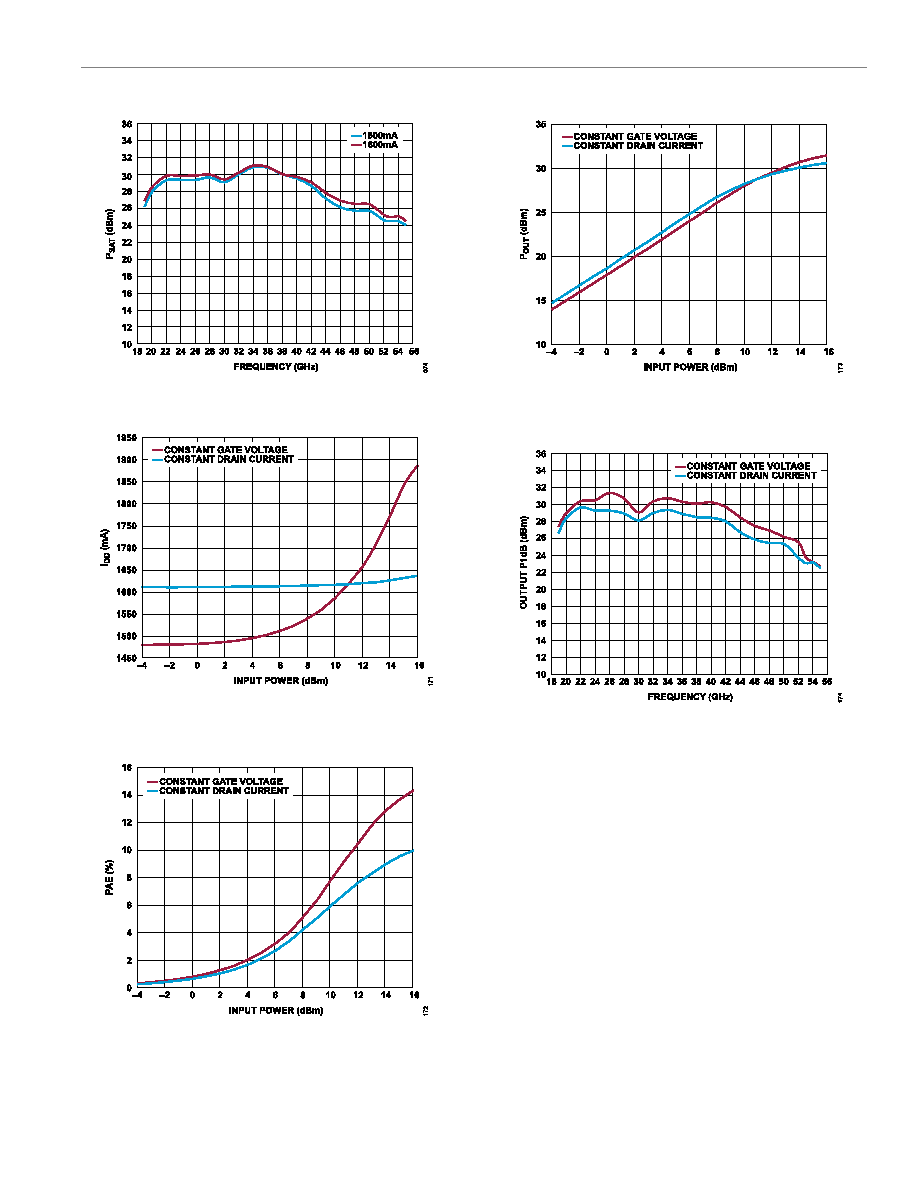

Figure 80. PSAT vs. Frequency for Various Drain Currents, VDD = 5 V,

Data Measured with Constant IDD

Figure 81. IDD vs. Input Power, VDD = 5 V, Frequency = 36 GHz,

Constant Drain Current Bias (IDRAIN Setpoint = 1600 mA) and Constant Gate

Voltage Bias ( VGG = −0.63 V)

Figure 82. PAE vs. Input Power, VDD = 5 V, Frequency = 36 GHz,

Constant Drain Current Bias (IDRAIN Setpoint = 1600 mA) and Constant Gate

Voltage Bias (VGG = −0.63 V)

Figure 83. POUT vs. Input Power, VDD = 5 V, Frequency = 36 GHz,

Constant Drain Current Bias (IDRAIN Setpoint = 1600 mA) and Constant Gate

Voltage Bias (VGG = −0.63 V)

Figure 84. Output P1dB vs. Frequency, VDD = 5 V,

Constant Drain Current Bias (IDRAIN Setpoint = 1600 mA) and Constant Gate

Voltage Bias (VGG = −0.63 V)
