date 08/05/2022

page 1 of 8

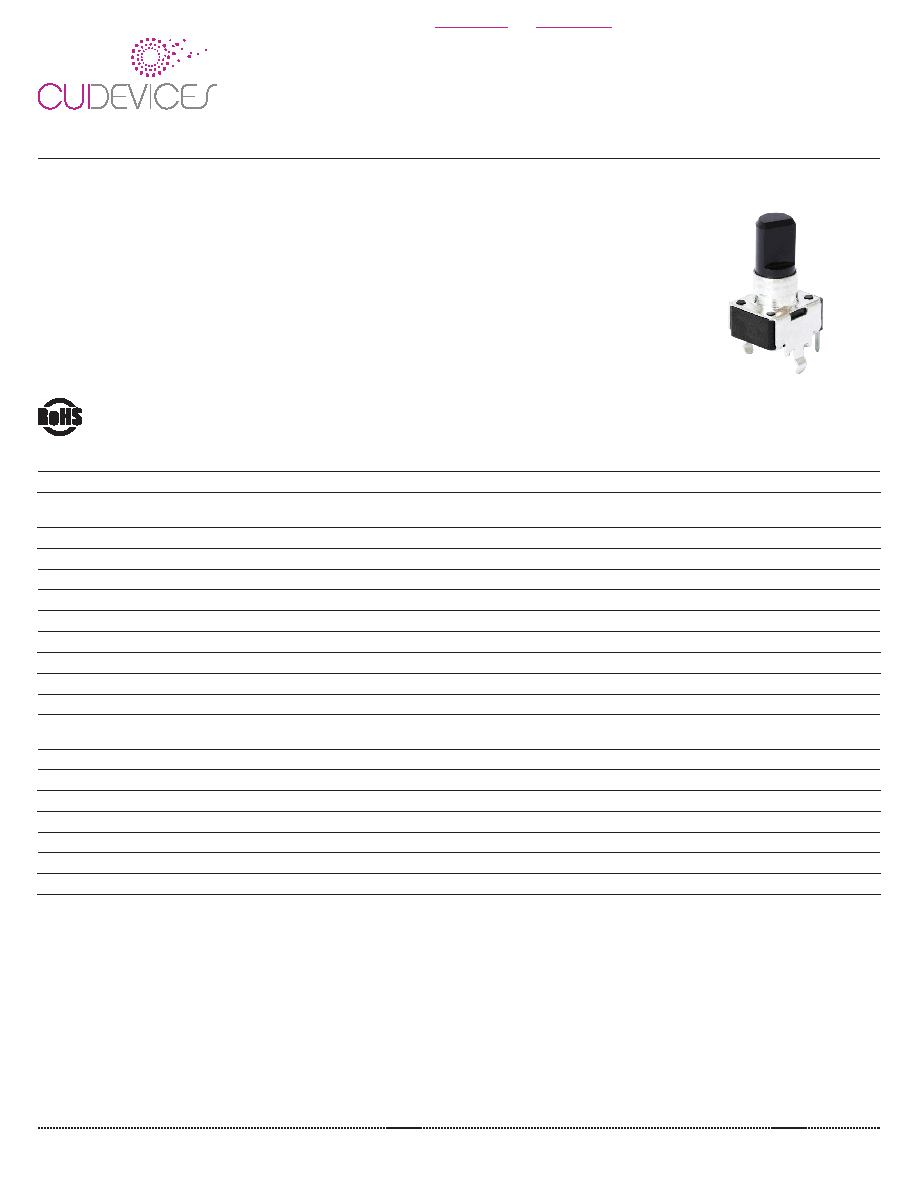

SERIES: PT01 | DESCRIPTION: ROTARY POTENTIOMETER

cuidevices.com

FEATURES

• carbon element

• wide variety of mounting styles

• multiple shaft options

• available with center detent

• linear, logarithmic, and reverse logarithmic tapers

SPECIFICATIONS

parameter

conditions/description

min

typ

max

units

maximum operating voltage

linear and logarithmic (audio)

20

50

Vdc

Vac

power rating

linear and logarithmic (audio)

0.05

W

taper

linear and logarithmic (audio)

standard resistance range

see Resistance Table

1.0

1,000

kΩ

standard resistance tolerance

±20

%

resisdual resistance

50 Ω or ±1% max

sliding noise

68

mV

operating temperature

-10

60

°C

hand soldering

for 3 seconds max

300

°C

RoHS

yes

MECHANICAL

parameter

conditions/description

min

typ

max

units

mechanical angle

275

280

285

°

rotational torque

10

150

gf-cm

detent torque

20

200

gf-cm

stop strength

2

kg-cm

rotational life

10,000

cycles

weight

2.5

g

Additional Resources: Product Page | PCB Footprint
