MPZ2012S221A Datasheet(PDF) 48 Page - STMicroelectronics

Part # MPZ2012S221A
Description  38 V, 10 W synchronous iso-buck converter for isolated applications
PDF  56 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

MPZ2012S221A Datasheet(HTML) 48 Page - STMicroelectronics

Back Button MPZ2012S221A Datasheet HTML 44Page - STMicroelectronics MPZ2012S221A Datasheet HTML 45Page - STMicroelectronics MPZ2012S221A Datasheet HTML 46Page - STMicroelectronics MPZ2012S221A Datasheet HTML 47Page - STMicroelectronics MPZ2012S221A Datasheet HTML 48Page - STMicroelectronics MPZ2012S221A Datasheet HTML 49Page - STMicroelectronics MPZ2012S221A Datasheet HTML 50Page - STMicroelectronics MPZ2012S221A Datasheet HTML 51Page - STMicroelectronics MPZ2012S221A Datasheet HTML 52Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 48 / 56 page
background image

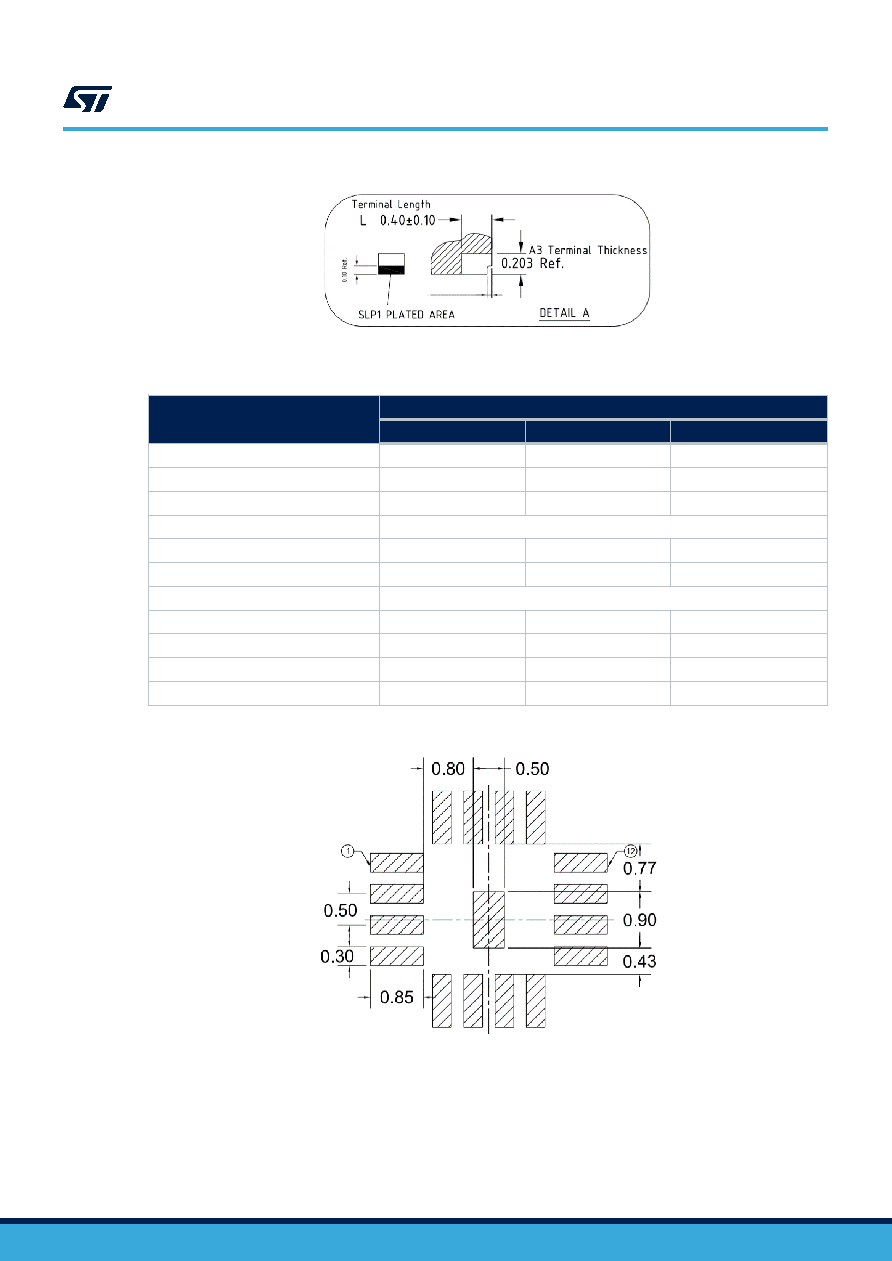

Figure 55. QFN16 (3x3mm) package outline. Detail A
Table 10. QFN16 (3x3mm) mechanical data
Symbol
mm
Min.
Typ.
Max.
A
0.7
0.75
0.8
A1
0
0.05
A2
0,5
0.55
0.6
A3
0,203REEF
b
0.2
0.25
0.3
L
0.3
0.4
0.5
e
0,50BSC
D
2,95
3
3,05
E
2,95
3
3,05
D1
0,43
0,48
0,53
E1
0.81
0,86
0,91
Figure 56. QFN16 (3x3 mm) recommended footprint
L6983I
QFN16 (3x3 mm) package information
DS14040 - Rev 1
page 48/56
