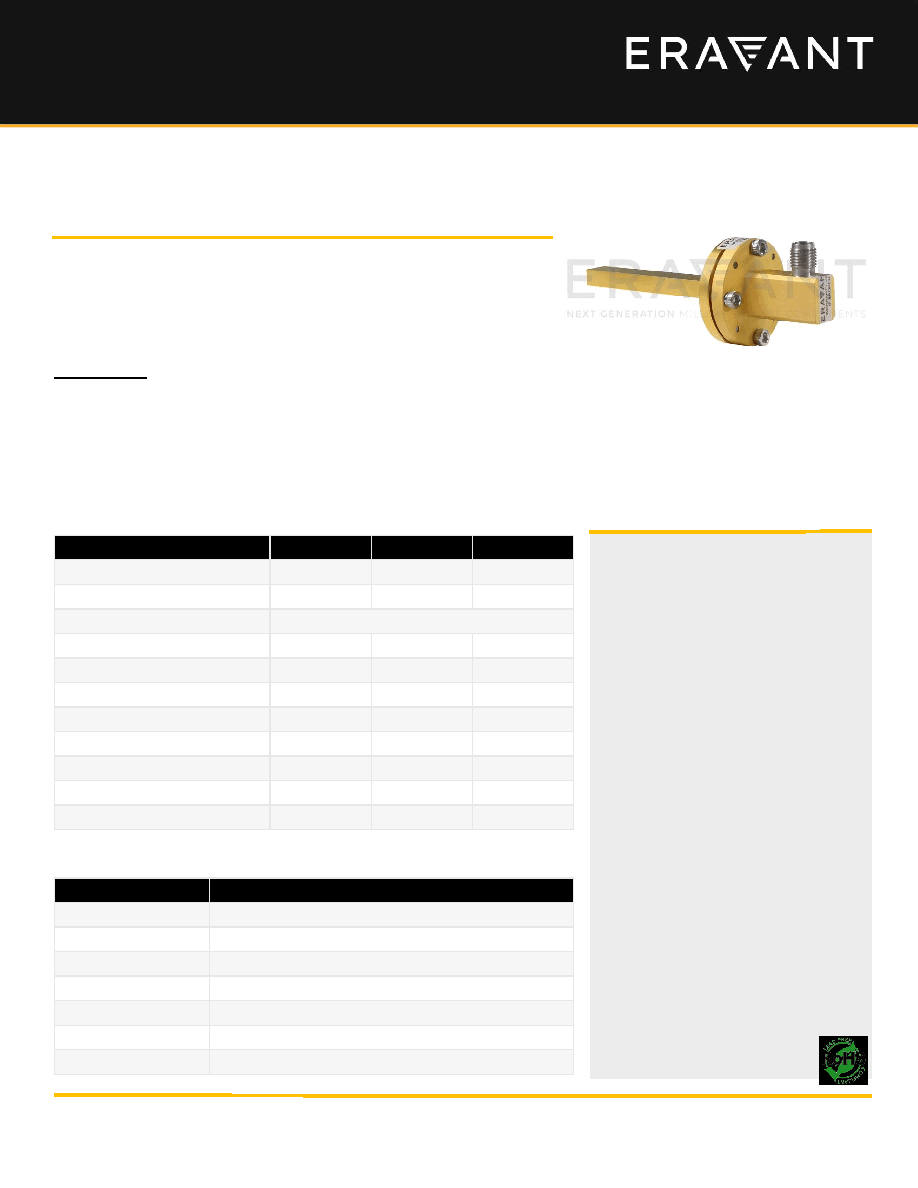

WR-22 Probe Antenna, 6.5 dBi Directivity with 2.4 mm

Coax Input

SAP-222F-R2 is a Q-band probe antenna with a right angle (90°) 2.4 mm

(F) coax connector to cover the frequency range of 33 GHz to 50 GHz.

The antenna offers 6.5 dBi nominal directivity and 115 degrees typical

half power beamwidth on the E-plane and 60 degrees typical half power

beamwidth on the H-plane. The antenna supports linear polarized

waveforms. The end-launch model is offered under model number

SAP-222F-E2.

Electrical Specifications:

Mechanical Specifications:

Parameter

Minimum

Typical

Maximum

Frequency

33 GHz

50 GHz

Directivity

6.5 dBi

Polarization

Linear

3 dB Beamwidth, E-Plane

115°

3 dB Beamwidth, H-Plane

60°

Sidelobes, E-Plane

-10 dB

Sidelobes, H-Plane

-14 dB

Return Loss

10 dB

Power Handling

40 W (CW)

Specification Temperature

+25°C

Operating Temperature

-40°C

+85°C

Item

Specification

Antenna Ports

2.4 mm Female

Material

Brass

Connector Material

Stainless Steel

Finish

Gold Plated

Weight

1.6 Oz

Size

3.20

” (L) x 1.13” (Ø)

Outline

AP-RQC-R

ECCN

EAR99

FEATURES

•

Inline Configuration

•

Linear Polarization

APPLICATIONS

•

Antenna Ranges

•

Antenna Gain Measurements

•

System Setups

SUPPLEMENTAL DETAILS
