SAP-222F-R2 Datasheet(PDF) 2 Page - Eravant

Part # SAP-222F-R2
Description  WR-22 Probe Antenna, 6.5 dBi Directivity with 2.4 mm Coax Input
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ERAVANT [Eravant]
Direct Link  https://www.eravant.com/
Logo ERAVANT - Eravant

SAP-222F-R2 Datasheet(HTML) 2 Page - Eravant

  SAP-222F-R2 Datasheet HTML 1Page - Eravant SAP-222F-R2 Datasheet HTML 2Page - Eravant SAP-222F-R2 Datasheet HTML 3Page - Eravant SAP-222F-R2 Datasheet HTML 4Page - Eravant
Zoom Inzoom in Zoom Outzoom out
 2 / 4 page
background image
SAP-222F-R2
www.eravant.com | 424-757-0168 | support@eravant.com
Copyright © 2023 by Eravant
2/4
Final Rev 1.4
-20
-15
-10
-5
0
5
10
-90
-70
-50
-30
-10
10
30
50
70
90
Boresight Angle (Degree)

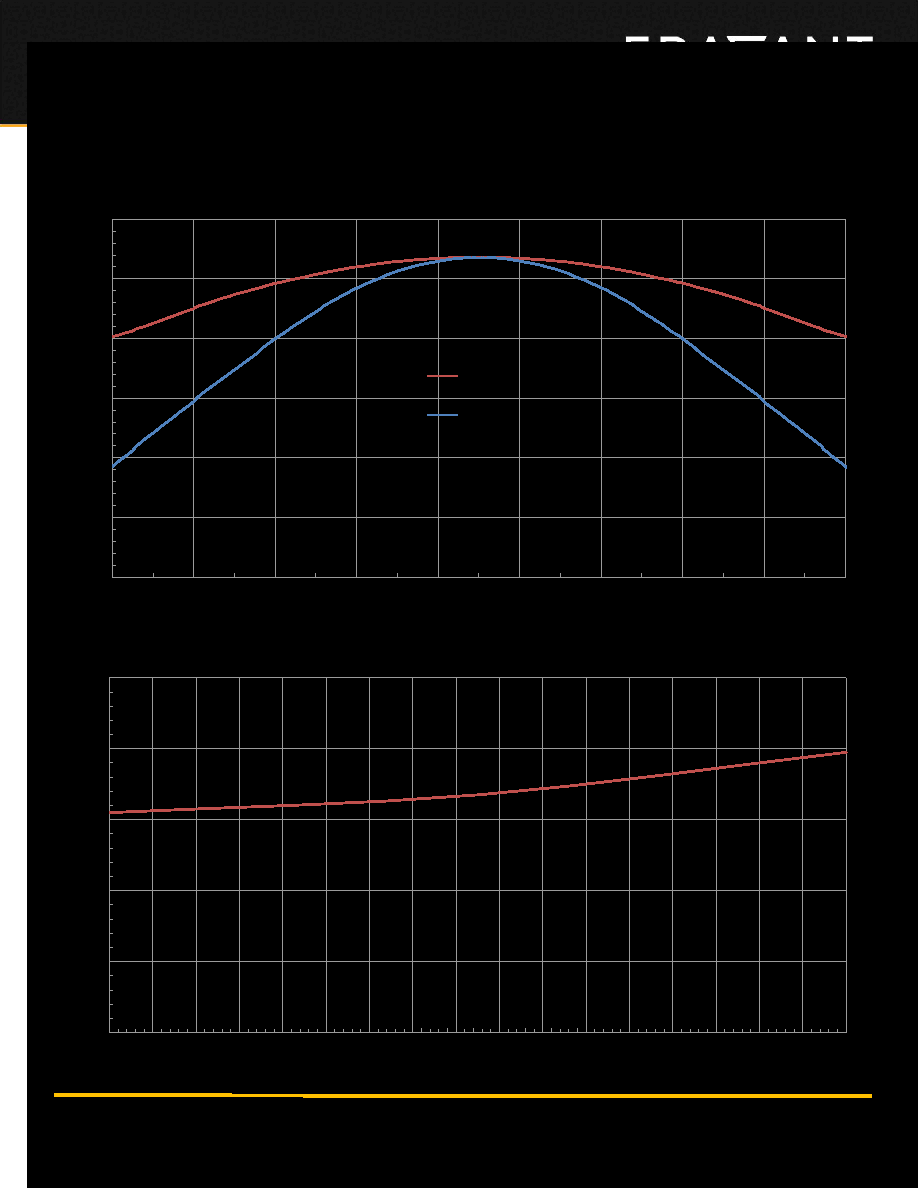

Typical Antenna Pattern @ 41.5 GHz
E-Plane
H-Plane
0
2
4
6
8
10
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
Frequency (GHz)
Simulated Directivity vs. Frequency



Html Pages

1 2 3 4


Datasheet Download

Go To PDF Page


Link URL
