Data Sheet

ADL8113

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. 0 | 29 of 37

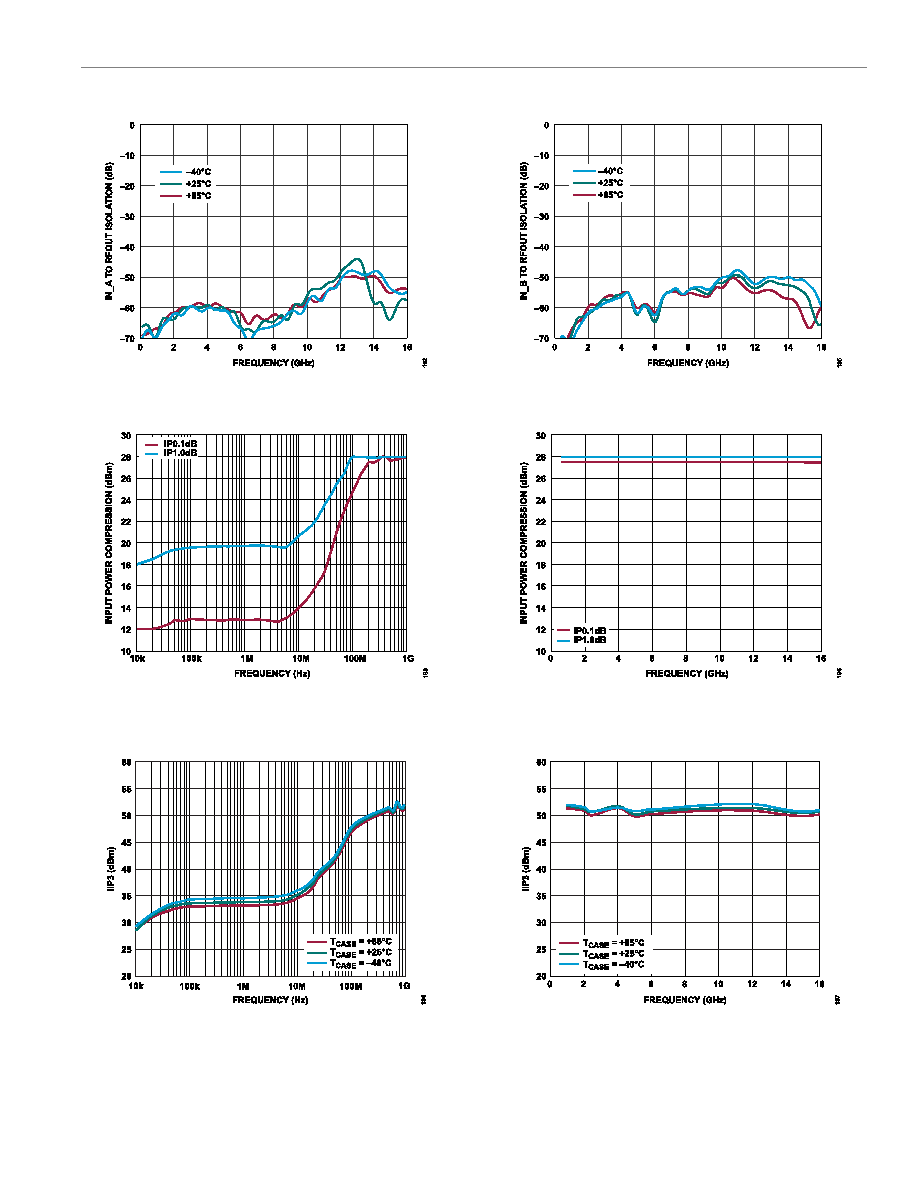

Figure 92. IN_A to RFOUT Isolation vs. Frequency for Various Temperatures,

10MHz to 16GHz

Figure 93. Input Power Compression vs. Frequency for Various

Compressions, 10kHz to 1GHz, Mode = Internal Bypass,

External Bypass A, and External Bypass B

Figure 94. IIP3 vs. Frequency for Various Temperatures, 10kHz to 1GHz,

Mode = Internal Bypass, External Bypass A, and External Bypass B

Figure 95. IN_B to RFOUT Isolation vs. Frequency for Various Temperatures,

10MHz to 16GHz

Figure 96. Input Power Compression vs. Frequency for Various

Compressions, 1GHz to 16GHz, Mode = Internal,

External Bypass A, and External Bypass B

Figure 97. IIP3 vs. Frequency for Various Temperatures, 1GHz to 16GHz,

Mode = Internal Bypass, External Bypass A, and External Bypass B
