Data Sheet
ADL8113
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. 0 | 23 of 37

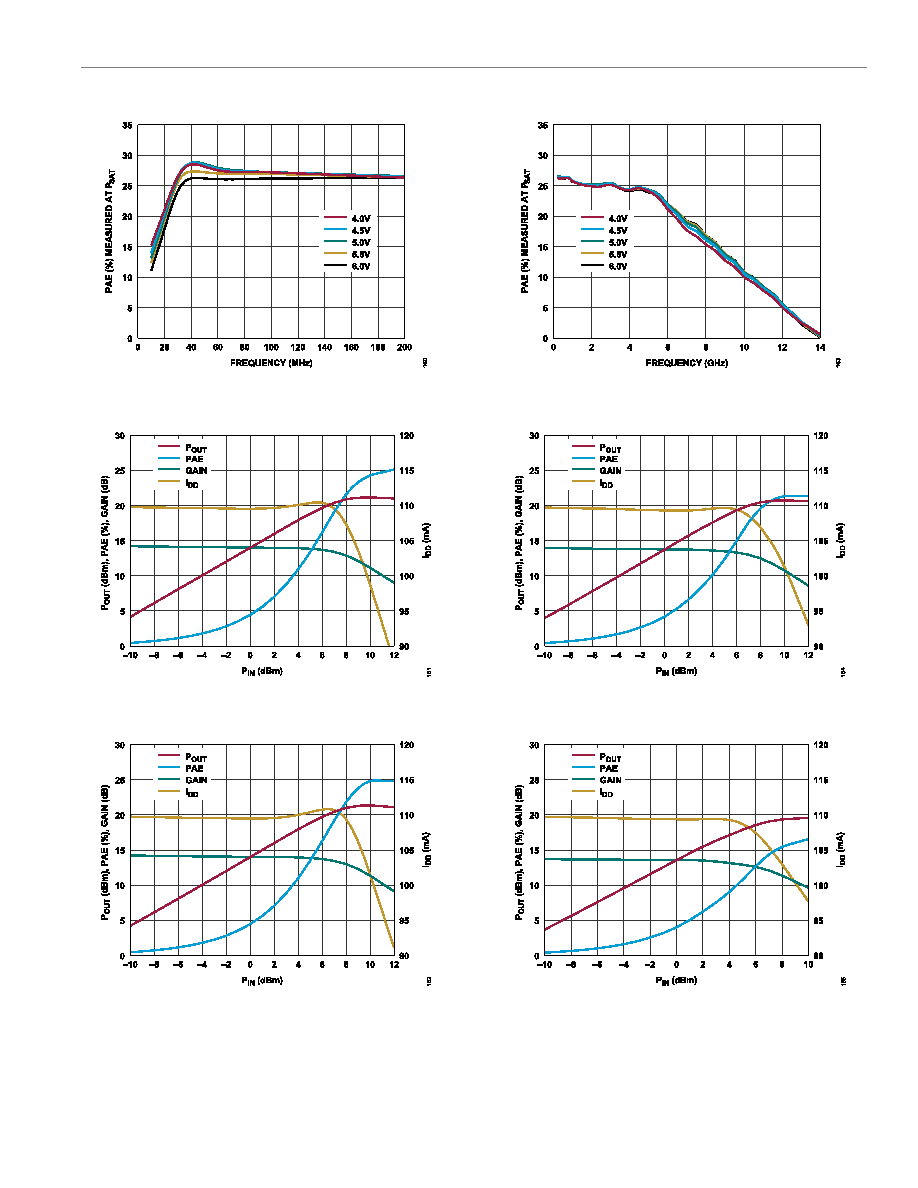

Figure 60. PAE Measured at PSAT vs. Frequency for Various Supply Voltages,
10MHz to 200MHz, IDQ = 110mA
Figure 61. Output Power (POUT), PAE, Gain, and IDD vs. PIN,
Power Compression at 2GHz, VDD = 5V
Figure 62. POUT, PAE, Gain, and IDD vs. PIN,
Power Compression at 4GHz, VDD = 5V
Figure 63. PAE Measured at PSAT vs. Frequency for Various Supply Voltages,
200MHz to 14GHz, IDQ = 110mA
Figure 64. POUT, PAE, Gain, and IDD vs. PIN,
Power Compression at 6GHz, VDD = 5V
Figure 65. POUT, PAE, Gain, and IDD vs. PIN,
Power Compression at 8GHz, VDD = 5V
