Data Sheet
MAX74822
analog.com
Rev. 0
6 of 16

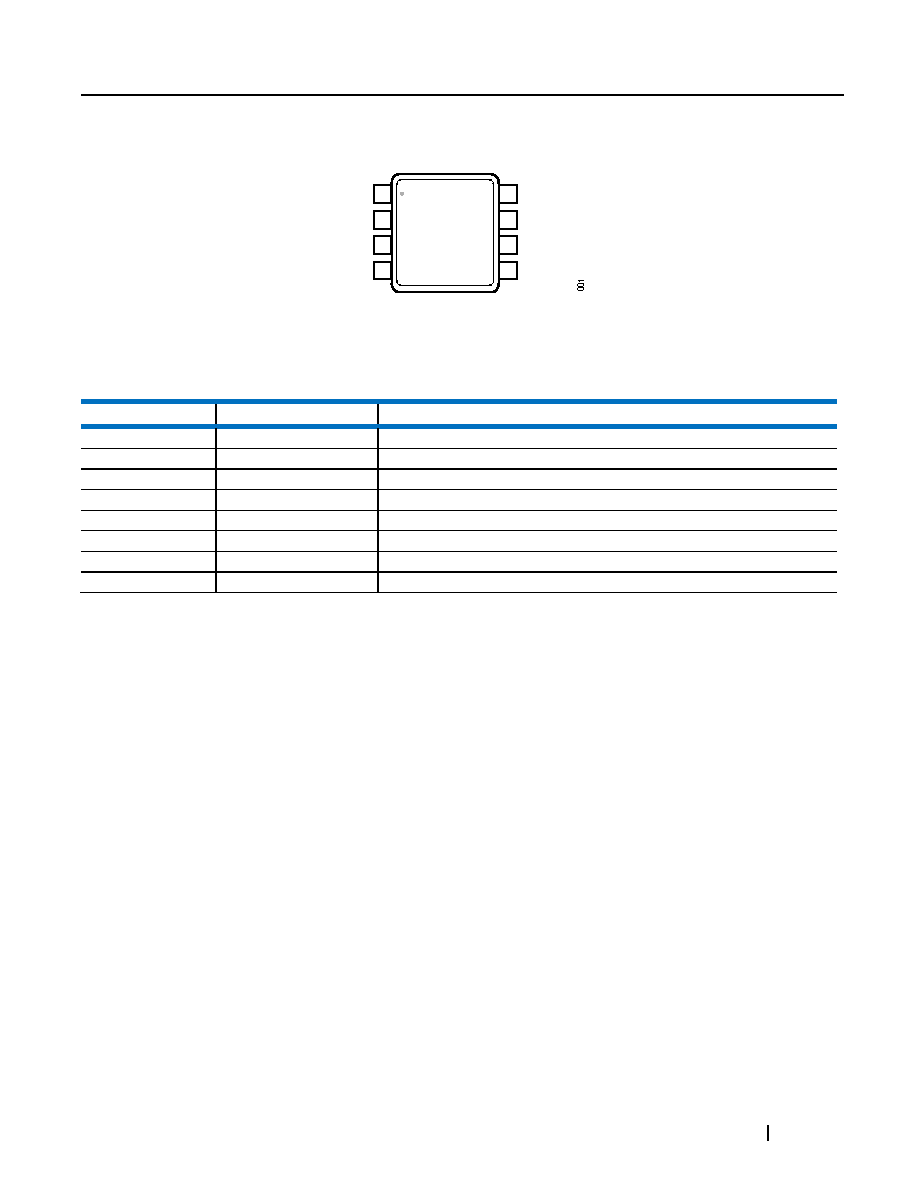

PIN CONFIGURATION
Figure 1. 8-Lead MSOP (RM Suffix)
Pin Function Descriptions
Table 4. Pin Descriptions
PIN
NAME
DESCRIPTION
1
OUT A
Output, Channel A.
2
−IN A
Inverting Input, Channel A.
3
+IN A
Noninverting Input, Channel A.
4
V−
Negative Supply Voltage.
5
+IN B
Noninverting Input, Channel B.
6
−IN B
Inverting Input, Channel B.
7
OUT B
Output, Channel B.
8
V+
Positive Supply Voltage.
1
2
3
4
–IN A
+IN A
V–
OUT A
8
7
6
5
OUT B
–IN B
+IN B
V+
MAX74822
(Not to Scale)
TOP VIEW
