Data Sheet

ADPA7005

OUTLINE DIMENSIONS

registered trademarks are the property of their respective owners.

One Analog Way, Wilmington, MA 01887-2356, U.S.A.

Rev. A | 24 of 24

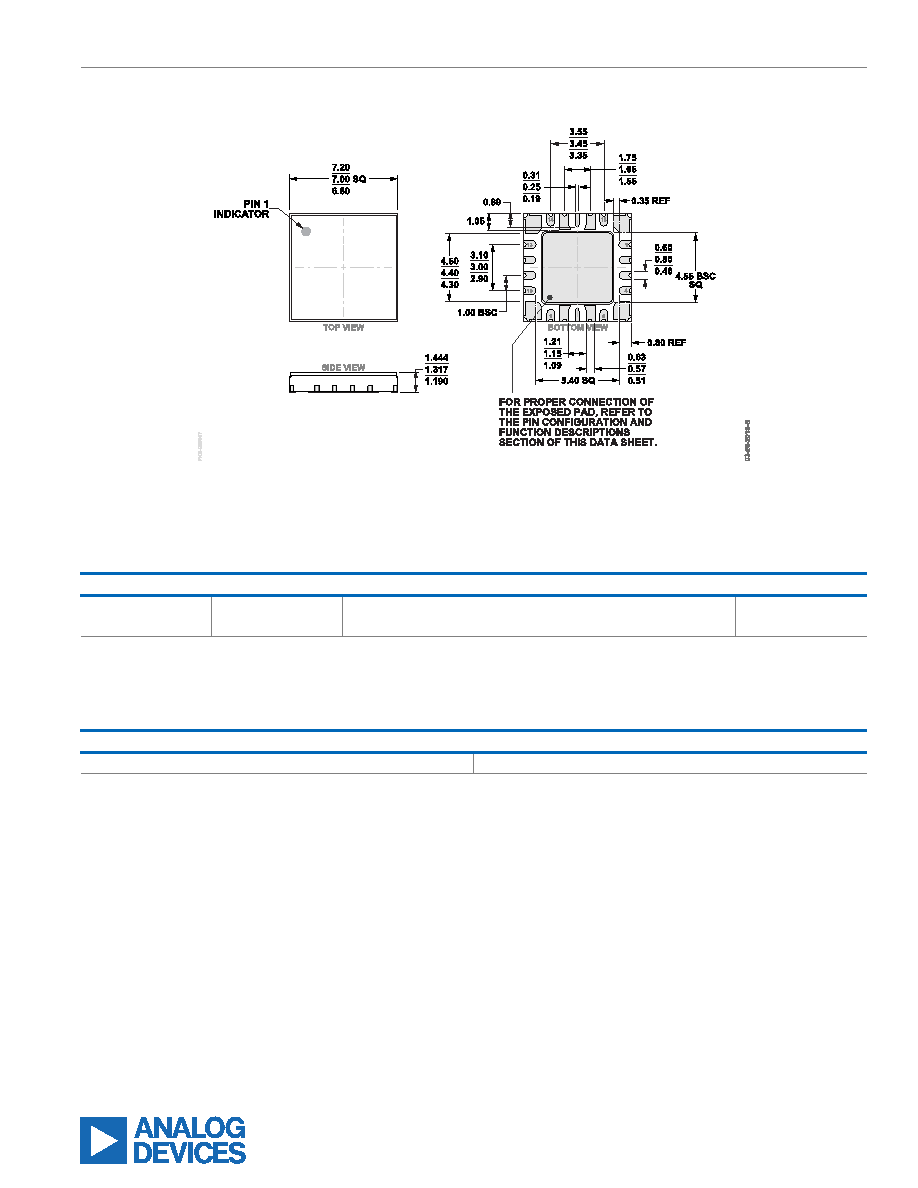

Figure 61. 18-Terminal Ceramic Leadless Chip Carrier with Heat Sink [LCC_HS]

(EH-18-1)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

ADPA7005AEHZ

–40°C to +85°C

18-Terminal Ceramic Leadless Chip Carrier with Heat Sink [LCC_HS]

EH-18-1

ADPA7005AEHZ-R7

–40°C to +85°C

18-Terminal Ceramic Leadless Chip Carrier with Heat Sink [LCC_HS]

EH-18-1

1 Z = RoHS Compliant Part.

EVALUATION BOARDS

Table 10.

Model1

Description

ADPA7005-EVALZ

Evaluation Board

1 Z = RoHS-Compliant Part.
