STV2001

25/46

14.1.8 - Sync Processor Output

The sync processor indicates whether 1st PLL is

locked to an incoming horizontal sync or not. This

is indicated on the D8 bit of the status register .

PLL1 level is low when locked.

14.2 - HORIZONTAL PART

14.2.1 - Internal Input Conditions

A digital signal (horizontal sync pulse) is sent by

the sync processor to the horizontal input. It must

be positive (see Figure 5).

Synchronization occurs on the leading edge of the

internal sync signal.

The minimum value of Z is 0.7

µs.

Vertical synchro extraction is not allowed.

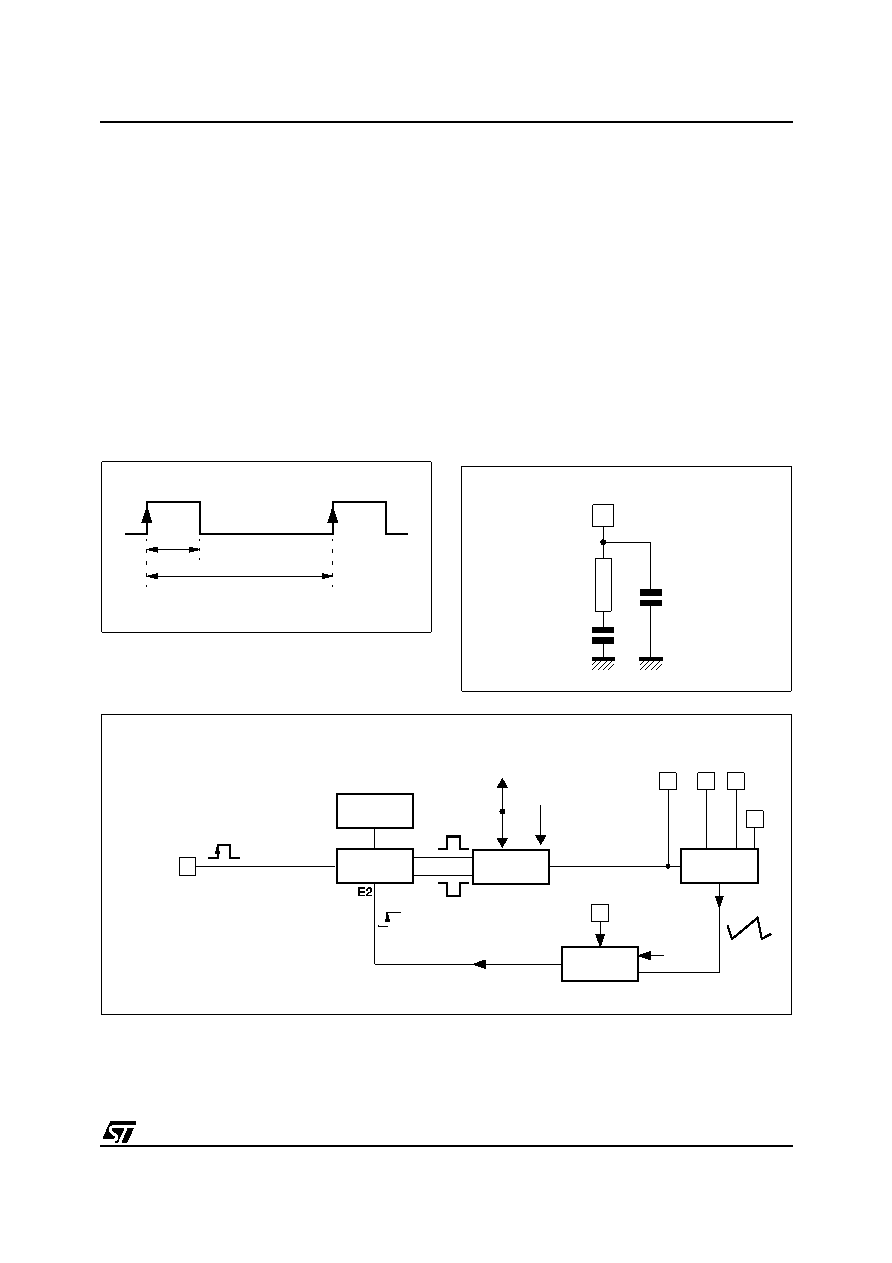

Figure 5.

14.2.2 - PLL1

The PLL1 consists of a phase comparator, an ex-

ternal filter and a voltage-controlled oscillator

(VCO). The phase comparator is a "phase fre-

quency" type designed in CMOS technology. This

kind of phase detector avoids locking on wrong

frequencies. It is followed by a "charge pump",

composed of two current sources: sunk and

sourced (typically I =1 mA when locked and

I= 40

µA when unlocked). This difference be-

tween lock/unlock allows smooth catching of the

horizontal frequency by PLL1. This effect is rein-

forced by an internal original slow down system

when PLL1 is locked, preventing the horizontal fre-

quency from changing too quickly. The dynamic

behaviour of PLL1 is fixed by an external filter

which integrates the current of the charge pump. A

"CRC" filter is generally used (see Figure 6). One

bit I2C Ipump is used to set the pump current to

1mA or 0.3mA in locked condition.

Figure 6.

Figure 7. Block Diagram ²&

PLL1F

1.8k

Ω

10nF

4.7

µF

Lock/Unlock

Status

PHASE

ADJUST

Low

High

LOCKDET

COMP1

CHARGE

PUMP

PLL1F

VCO

OSC

I2C

HPOS

Adj.

44 FILTER

FC1

I2C

Ipump
