ADP8863
Rev. 0 | Page 10 of 48
1
2
3
T
500ns/DIV
VOUT (AC-COUPLED) 50mV/DIV
VIN (AC-COUPLED) 50mV/DIV
IIN (AC-COUPLED) 10mA/DIV
CIN = 1µF, COUT = 1µF, C1 = 1µF, C2 = 1µF
VIN = 3.0V
IOUT = 120mA

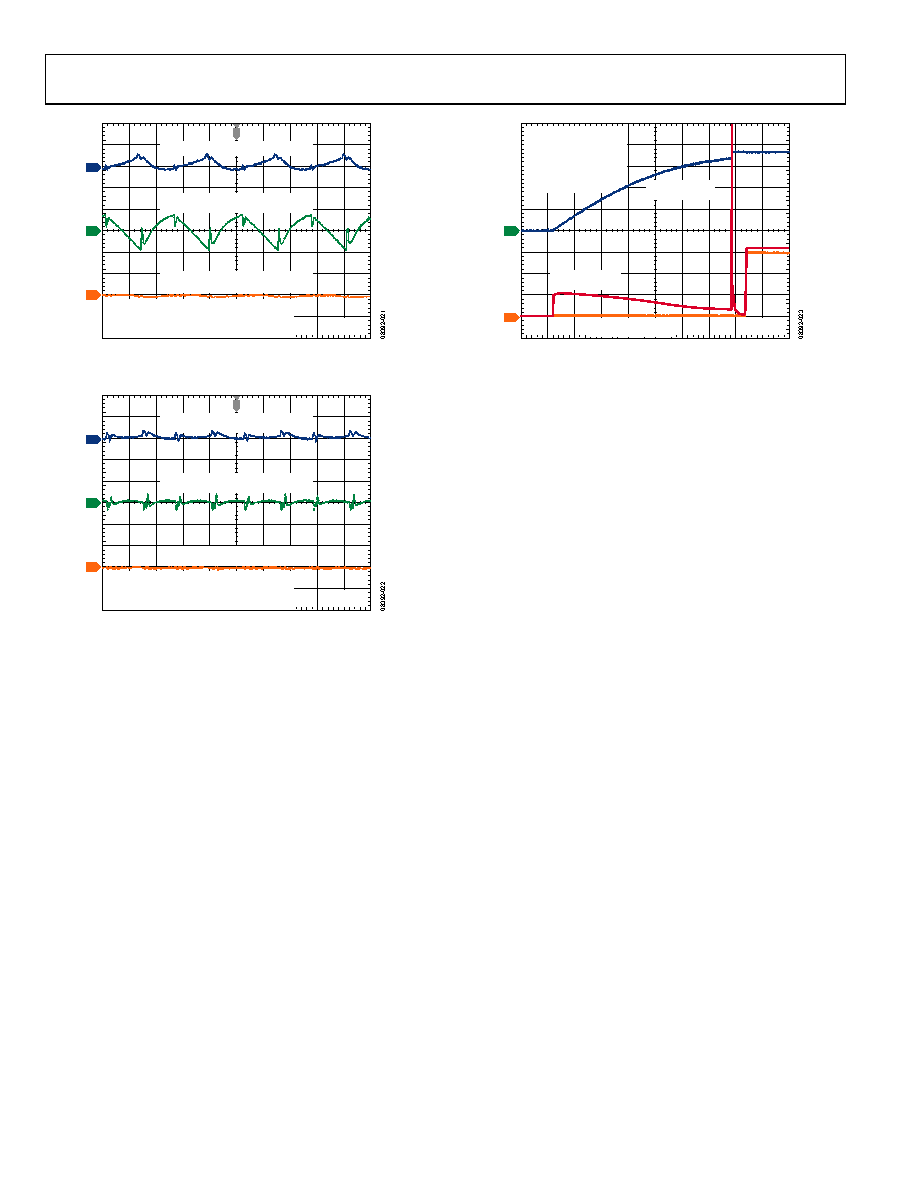

Figure 22. Typical Operating Waveforms, G = 1.5×
1
2
3
T
500ns/DIV
VOUT (AC-COUPLED) 50mV/DIV
VIN (AC-COUPLED) 50mV/DIV
IIN (AC-COUPLED) 10mA/DIV
CIN = 1µF, COUT = 1µF, C1 = 1µF, C2 = 1µF
VIN = 2.5V
IOUT = 120mA
Figure 23. Typical Operating Waveforms, G = 2×
2
4
100µs/DIV
IOUT (10mA/DIV)
VOUT (1V/DIV)
IIN (10mA/DIV)
CIN = 10pF, COUT = 1µF
C1 = 1µF, C2 = 1µF
VIN = 3.7V
IOUT = 30mA
(ONE DIODE AT
MAX CURRENT)
Figure 24. Typical Start-Up Waveform
