M24LR04E-R Datasheet(PDF) 57 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
M24LR04E-R Datasheet(HTML) 57 Page - STMicroelectronics |
|
|

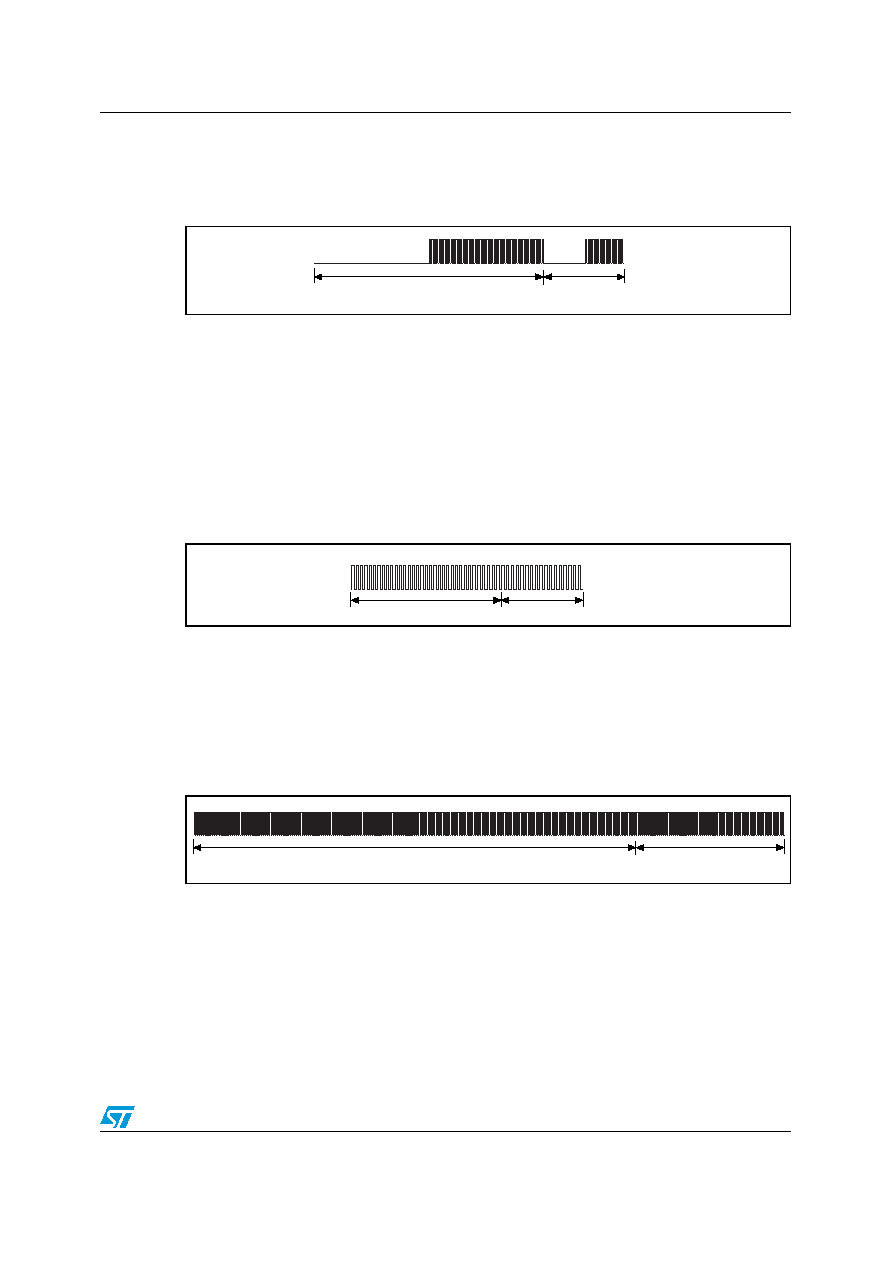

57 / 142 page  M24LR04E-R M24LR04E-R to VCD frames Doc ID 022208 Rev 5 57/142 For the Fast commands, the SOF comprises an unmodulated time of 113.28 µs, followed by 48 pulses at 423.75 kHz (fC/32), and a logic 1 that includes an unmodulated time of 37.76 µs followed by 16 pulses at 423.75 kHz, as shown in Figure 38. Figure 38. Start of frame, low data rate, one subcarrier, fast commands 12.2 SOF when using two subcarriers 12.2.1 High data rate The SOF comprises 27 pulses at 484.28 kHz (fC/28), followed by 24 pulses at 423.75 kHz (fC/32), and a logic 1 that includes nine pulses at 484.28 kHz followed by eight pulses at 423.75 kHz, as shown in Figure 39. Bit coding using two subcarriers is not supported for the Fast commands. Figure 39. Start of frame, high data rate, two subcarriers 12.2.2 Low data rate The SOF comprises 108 pulses at 484.28 kHz (fC/28), followed by 96 pulses at 423.75 kHz (fC/32), and a logic 1 that includes 36 pulses at 484.28 kHz followed by 32 pulses at 423.75 kHz, as shown in Figure 40. Bit coding using two subcarriers is not supported for the Fast commands. Figure 40. Start of frame, low data rate, two subcarriers 226.56µs ai12081 75.52µs 112.39µs ai12082 37.46µs 449.56µs ai12083 149.84µs |
|
