SSL21083AT
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2013. All rights reserved.
Product data sheet
Rev. 6 — 4 October 2013
5 of 22
NXP Semiconductors
SSL21083AT
Compact non-dimmable LED driver IC
7.
Pinning information
7.1 Pinning
7.2 Pin description

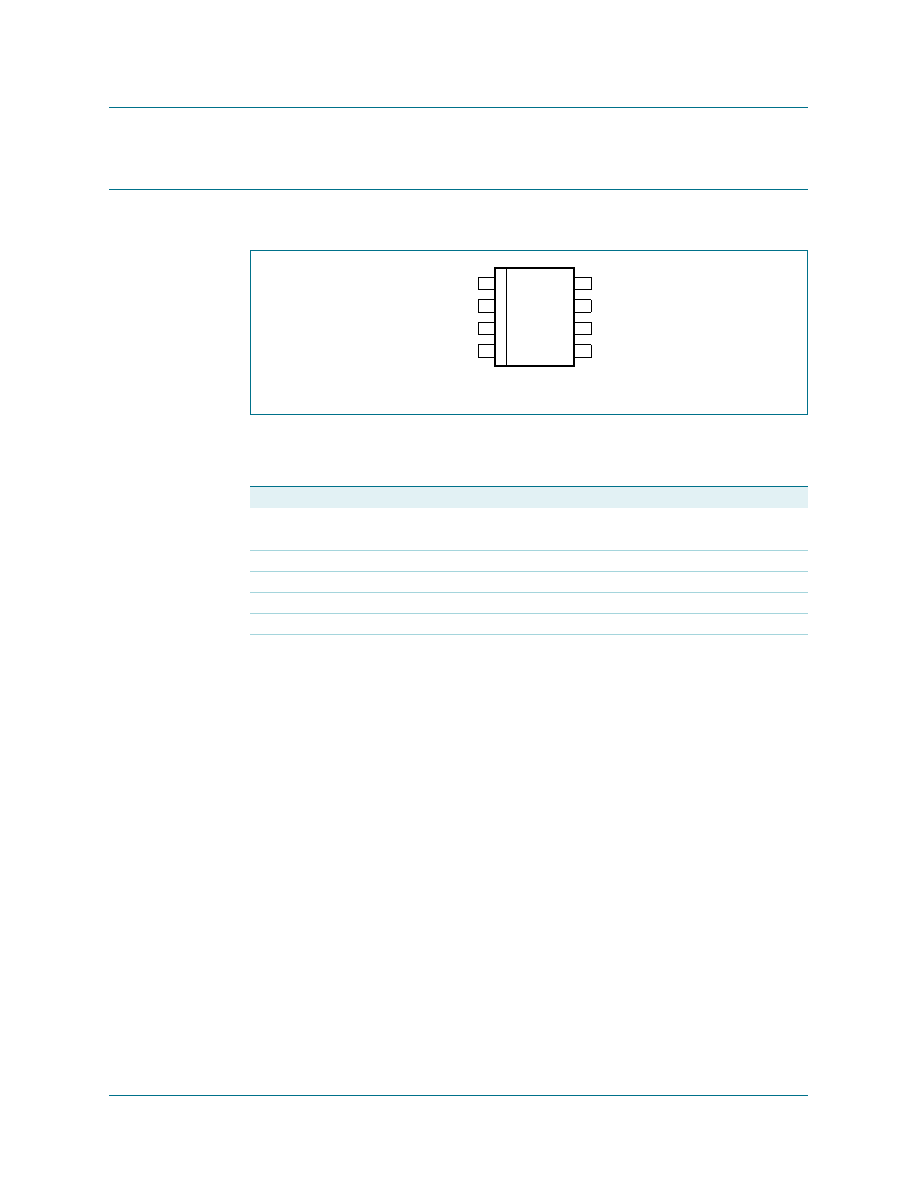

Fig 2.
SSL21083AT pin configuration (SO8)
Table 4.
Pin description
Symbol
Pin (SO8)
Description
HV
1
high-voltage supply pin
SOURCE
2
low-side internal switch
VCC
3
supply voltage
NTC
4
LED temperature protection input
DVDT
5
AC supply pin
GND
6, 7
ground
DRAIN
8
high-side internal switch
