L7985

Application information

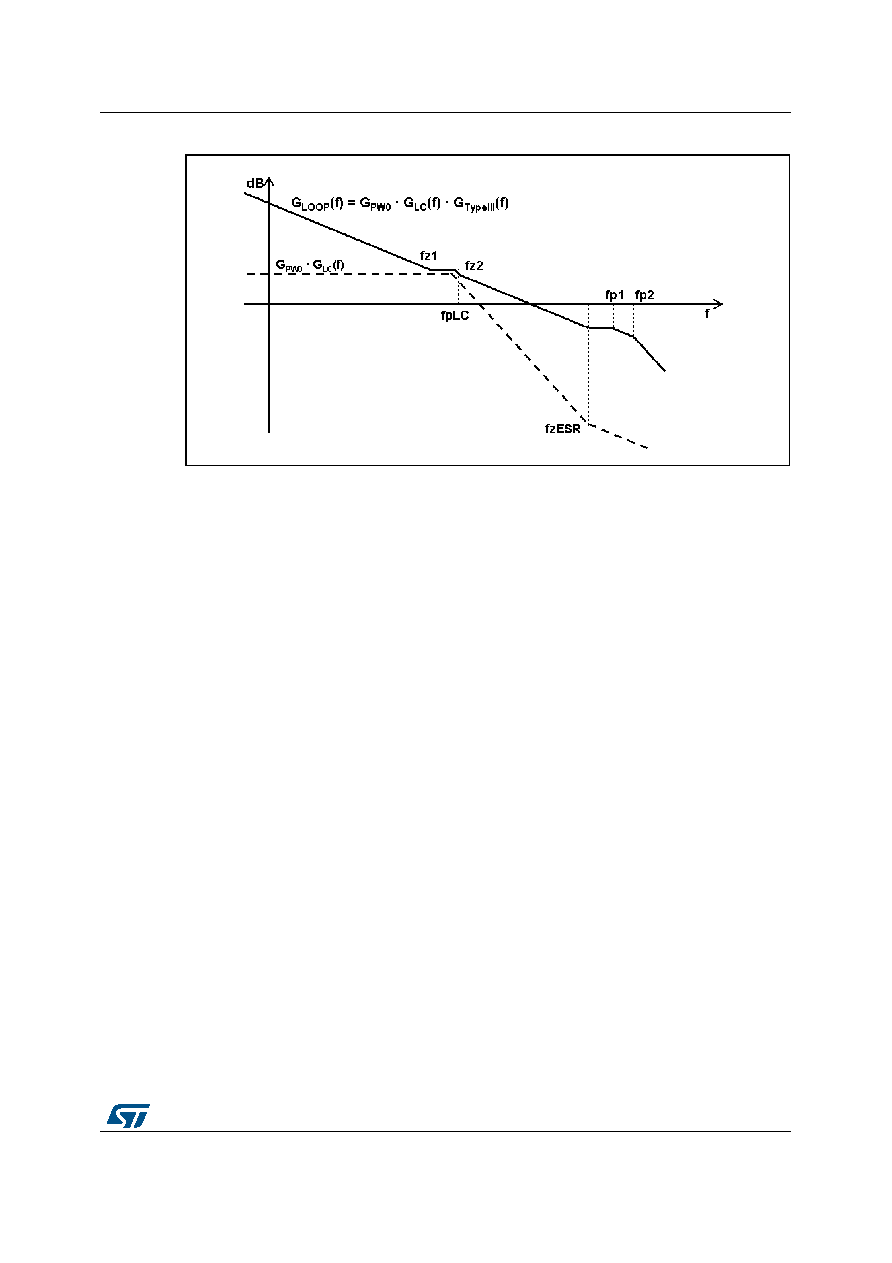

Figure 11. Open-loop gain: module Bode diagram

The guidelines for positioning the poles and the zeroes and for calculating the component

values can be summarized as follows:

Choose a value for R1, usually between 1 k and 5 k.

Choose a gain (R4/R1) in order to have the required bandwidth (BW), that means:

Equation 24

where K is the feed-forward constant and 1/K is equal to 18.

Calculate C4 by placing the zero at 50% of the output filter double pole frequency (fLC):

Equation 25

Calculate C5 by placing the second pole at four times the system bandwidth (BW):

Equation 26

Set also the first pole at four times the system bandwidth and also the second zero at

the output filter double pole:

Equation 27

The suggested maximum system bandwidth is equal to the switching frequency divided by

3.5 (FSW / 3.5), anyhow, lower than 100 kHz if the FSW is set higher than 500 kHz.

fLC

---------- KR1



 R

4 fLC



---------------------------

 R

4 C4 4BW



–



--------------------------------------------------------------

4BW



fLC

----------------- 1

–

---------------------------

 R

3 4BW

 

-----------------------------------------


