Electrical characteristics

i.MX RT1160 Crossover Processors Data Sheet for Consumer Products, Rev. 0, 04/2021

NXP Semiconductors

4.4.1

Reset timing parameters

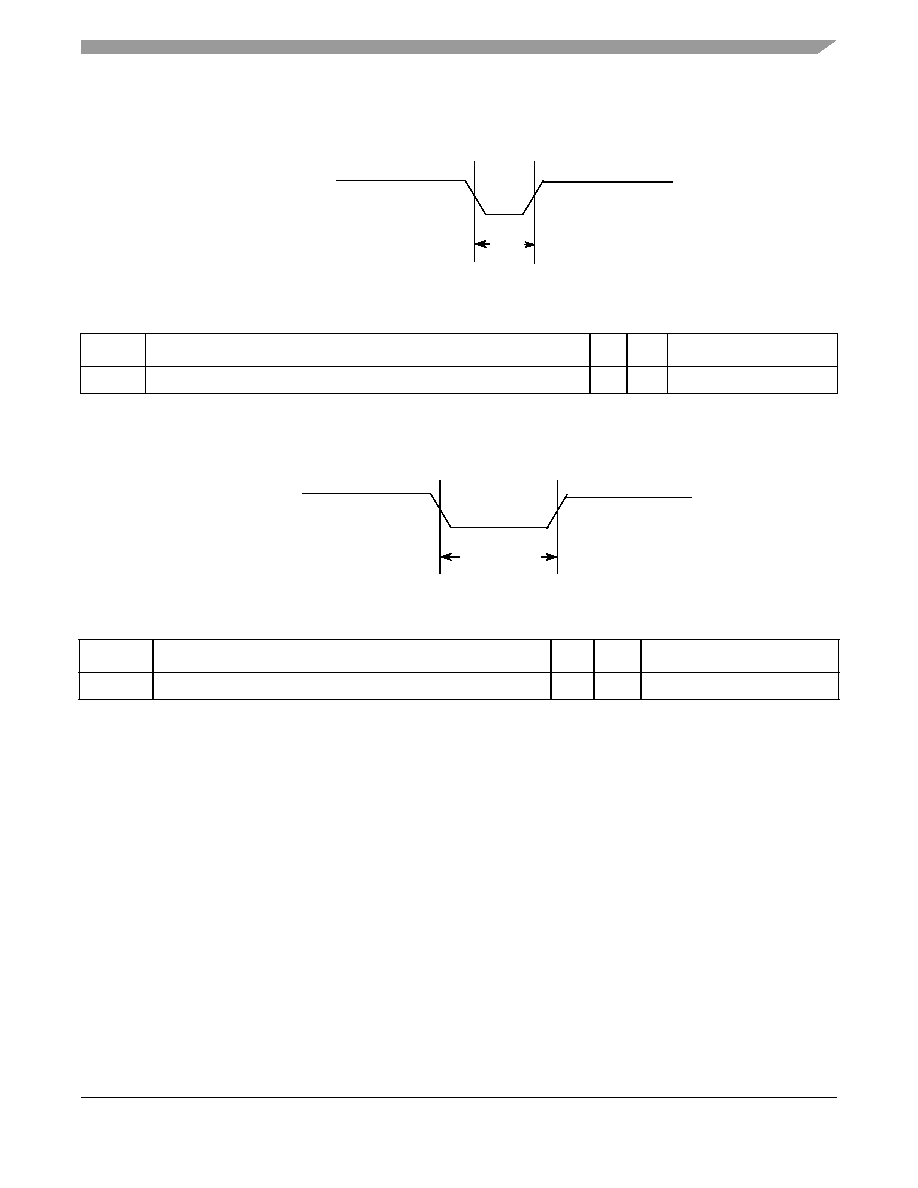

Figure 9 shows the POR reset timing and Table 40 lists the timing parameters.

Figure 9. POR reset timing diagram

4.4.2

WDOG reset timing parameters

Figure 10 shows the WDOG reset timing and Table 41 lists the timing parameters.

Figure 10. WDOGn_B timing diagram

NOTE

RTC_XTALI is approximately 32 kHz. RTC_XTALI cycle is one period or

approximately 30

s.

NOTE

WDOGn_B output signals (for each one of the Watchdog modules) do not

have dedicated pins, but are muxed out through the IOMUX. See the IOMUX

manual for detailed information.

Table 40. POR reset timing parameters

Parameter

Min Max

Unit

CC1

Duration of POR_B to be qualified as valid.

—

RTC_XTALI cycle

Table 41. WDOGn_B timing parameters

Parameter

Min

Max

Unit

CC3

Duration of WDOGn_B Assertion

—

RTC_XTALI cycle

POR_B

CC1

(Input)

WDOGn_B

CC3

(Output)
