Data Sheet
HMC774ALC3B
Rev. A | Page 21 of 27
IF BANDWIDTH, LO = 34 GHz, LOWER SIDEBAND
–4
–8
–12
–16
–20
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
2.0
+85°C
+25°C
–40°C

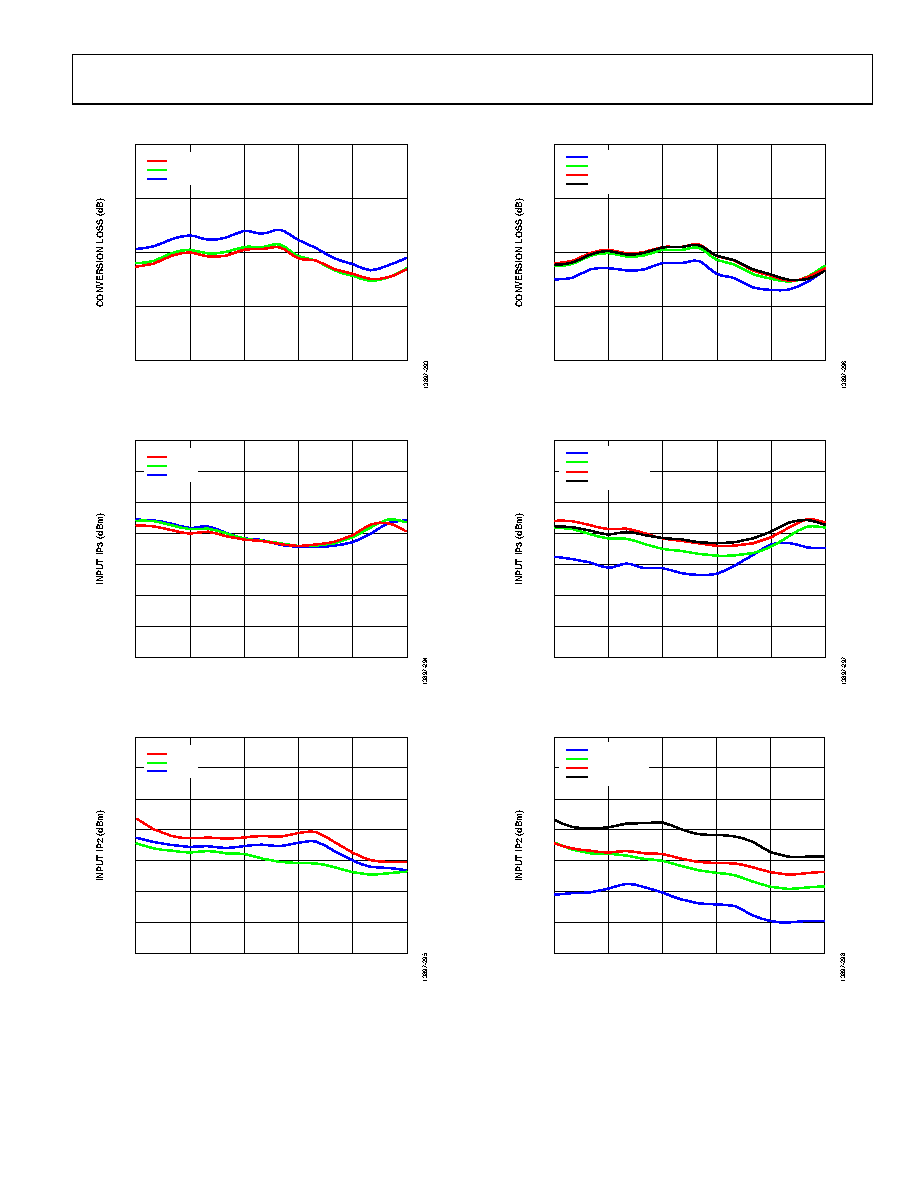

Figure 81. Conversion Loss vs. IF Frequency over Various Temperatures,
PLO = 15 dBm
35
0
5
10
15
20
25
30
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
2.0
+85°C
+25°C
–40°C
Figure 82. Input IP3 vs. IF Frequency over Various Temperatures,
PLO = 15 dBm
80
10
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
20
30
40
50
60
70
2.0
+85°C
+25°C
–40°C
Figure 83. Input IP2 vs. IF Frequency over Various Temperatures,
PLO = 15 dBm
–4
–8
–12
–16
–20
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
2.0
LO = 11dBm
LO = 13dBm
LO = 15dBm
LO = 17dBm
Figure 84. Conversion Loss vs. IF Frequency over Various LO Drives
35
0
5
10
15
20
25
30
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
2.0
LO = 11dBm
LO = 13dBm
LO = 15dBm
LO = 17dBm
Figure 85. Input IP3 vs. IF Frequency over Various LO Drives
80
10
0.5
3.5
5.0
6.5
8.0
IF FREQUENCY (GHz)
20
30
40
50
60
70
2.0
LO = 11dBm
LO = 13dBm
LO = 15dBm
LO = 17dBm
Figure 86. Input IP2 vs. IF Frequency over Various LO Drives
