DS10690 Rev 7
39/148
STM32L071xx
Pin descriptions
54

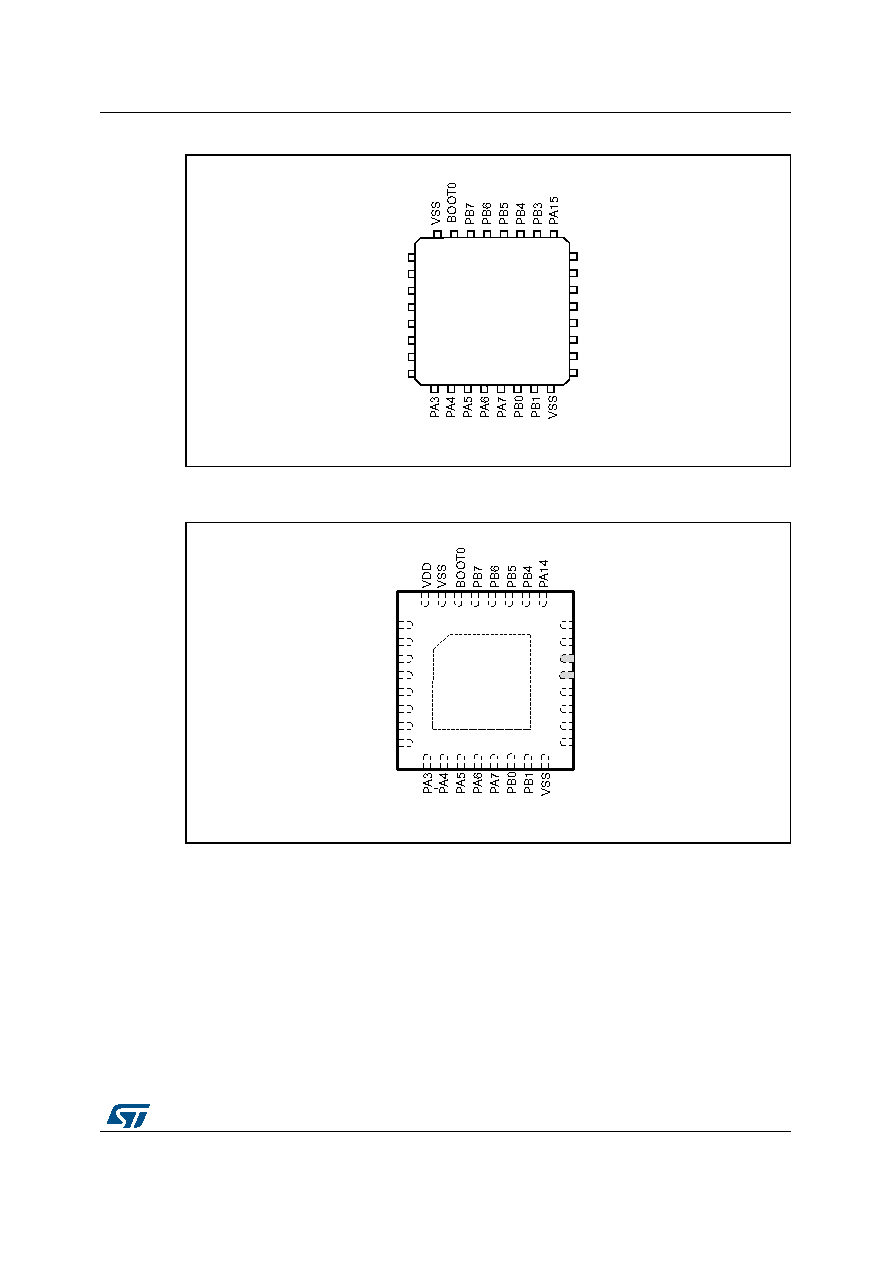

Figure 10. STM32L071xx LQFP32 pinout
1. The above figure shows the package top view.
Figure 11. STM32L071xx UFQFPN32 pinout
1. The above figure shows the package top view.
2. PA11 and PA12 input/outputs (greyed out pins) are supplied by VDDIO2.
MSv35429V3
32 31 30 29 28 27 26 25
24
23
22
20
19
18
17
8 910 1112 1 3 14 15 16
1
2
3
4
5
6
7
PA14
PA13
PA12
PA11
PA10
PA9
PA8
VDD
NRST
VDDA
PA0
PA1
PA2
PC14-OSC32_IN
PC15-OSC32_OUT
VDD
21
LQFP32
MSv35461V3
32 31 30 29 28 27 26 25
24
23
22
20
19
18
17
8 910 1112 13 14 15 16
1
2
3
4
5
6
7
VDDIO2
PA13
PA12
PA11
PA10
PA9
PA8
NRST
VDDA
PA0
PA1
PA2
PC14-OSC32_IN
PC15-OSC32_OUT
VDD
21
VSS
VSSA
