Data Sheet
ADA4522-1/ADA4522-2/ADA4522-4
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. G | 13 of 33

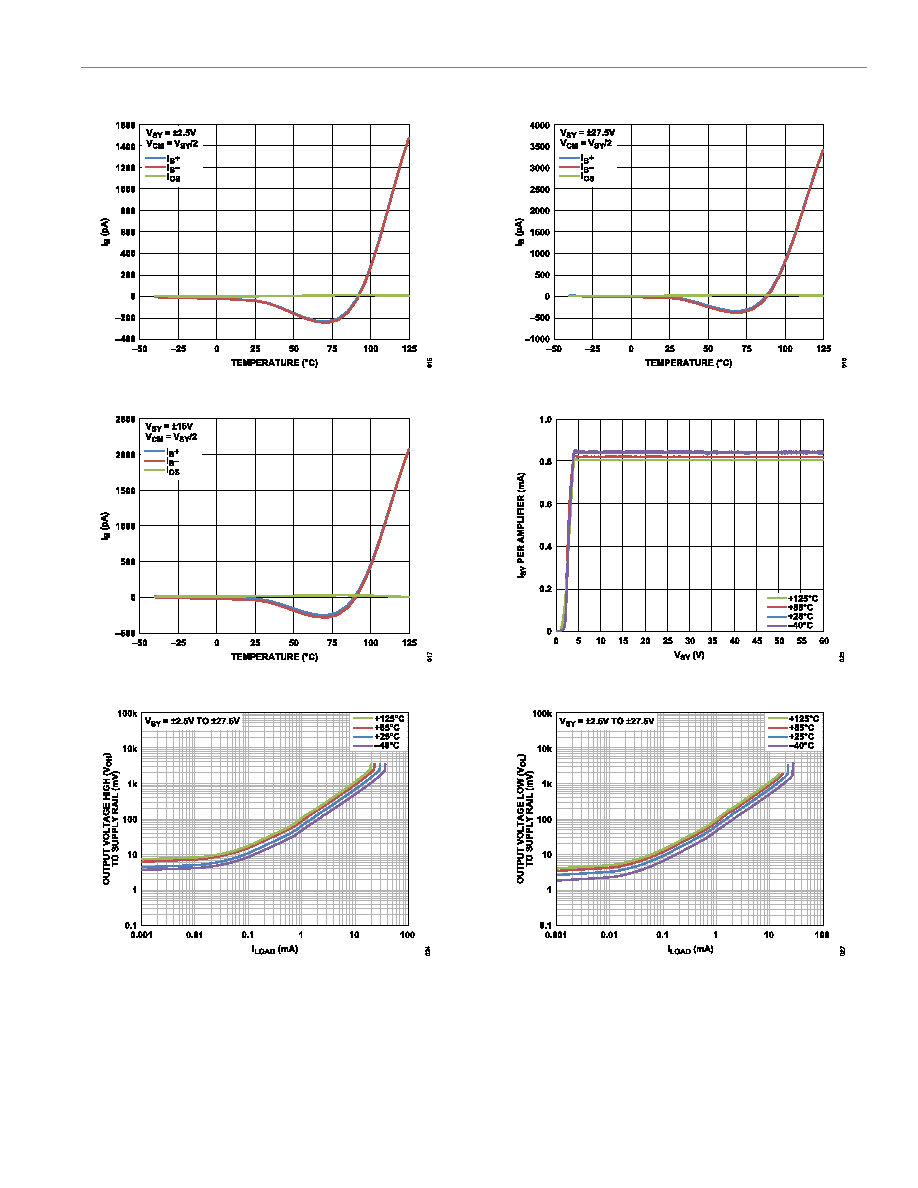

Figure 18. Input Bias Current (IB) vs. Temperature, VSY = ±2.5 V
Figure 19. Input Bias Current (IB) vs. Temperature, VSY = ±15 V
Figure 20. Output Voltage High (VOH) to Supply Rail vs. Load Current (ILOAD)
Figure 21. Input Bias Current (IB) vs. Temperature, VSY = ±27.5 V
Figure 22. Supply Current (ISY) per Amplifier vs. Supply Voltage (VSY)
Figure 23. Output Voltage Low (VOL) to Supply Rail vs. Load Current (ILOAD)
