ADA4522-4ARZ-R7 Datasheet(PDF) 14 Page - Analog Devices

Part # ADA4522-4ARZ-R7
Description  55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational
PDF  33 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADA4522-4ARZ-R7 Datasheet(HTML) 14 Page - Analog Devices

Back Button ADA4522-4ARZ-R7 Datasheet HTML 10Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 11Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 12Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 13Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 14Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 15Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 16Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 17Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 18Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 14 / 33 page
background image
Data Sheet
ADA4522-1/ADA4522-2/ADA4522-4
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. G | 14 of 33

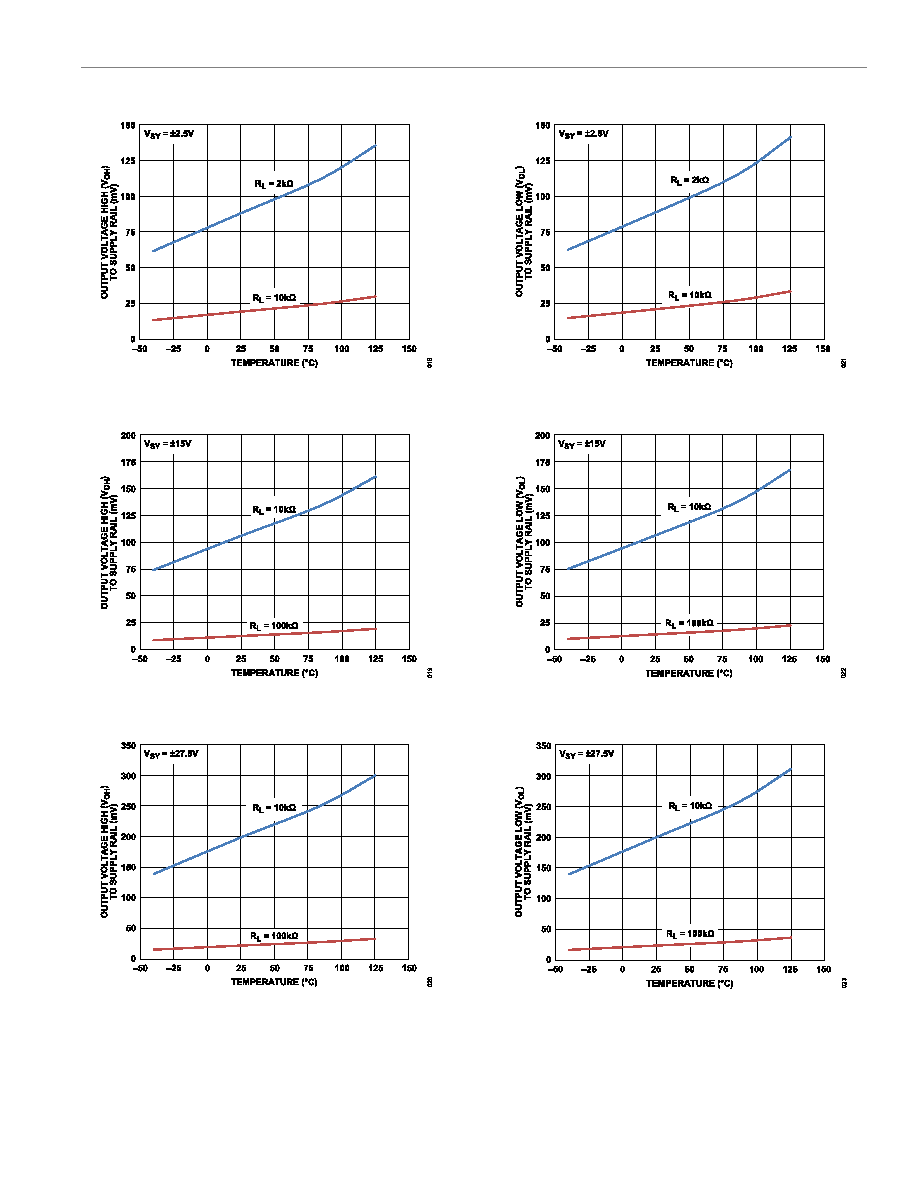

Figure 24. Output Voltage High (VOH) to Supply Rail vs. Temperature, VSY =
±2.5 V
Figure 25. Output Voltage High (VOH) to Supply Rail vs. Temperature, VSY =
±15 V
Figure 26. Output Voltage High (VOH) to Supply Rail vs. Temperature,VSY =
±27.5 V
Figure 27. Output Voltage Low (VOL) to Supply Rail vs. Temperature, VSY =
±2.5 V
Figure 28. Output Voltage Low (VOL) to Supply Rail vs. Temperature, VSY =
±15 V
Figure 29. Output Voltage Low (VOL) to Supply Rail vs. Temperature, VSY =
±27.5 V
