15 / 33 page

Data Sheet

ADA4522-1/ADA4522-2/ADA4522-4

TYPICAL PERFORMANCE CHARACTERISTICS

analog.com

Rev. G | 15 of 33

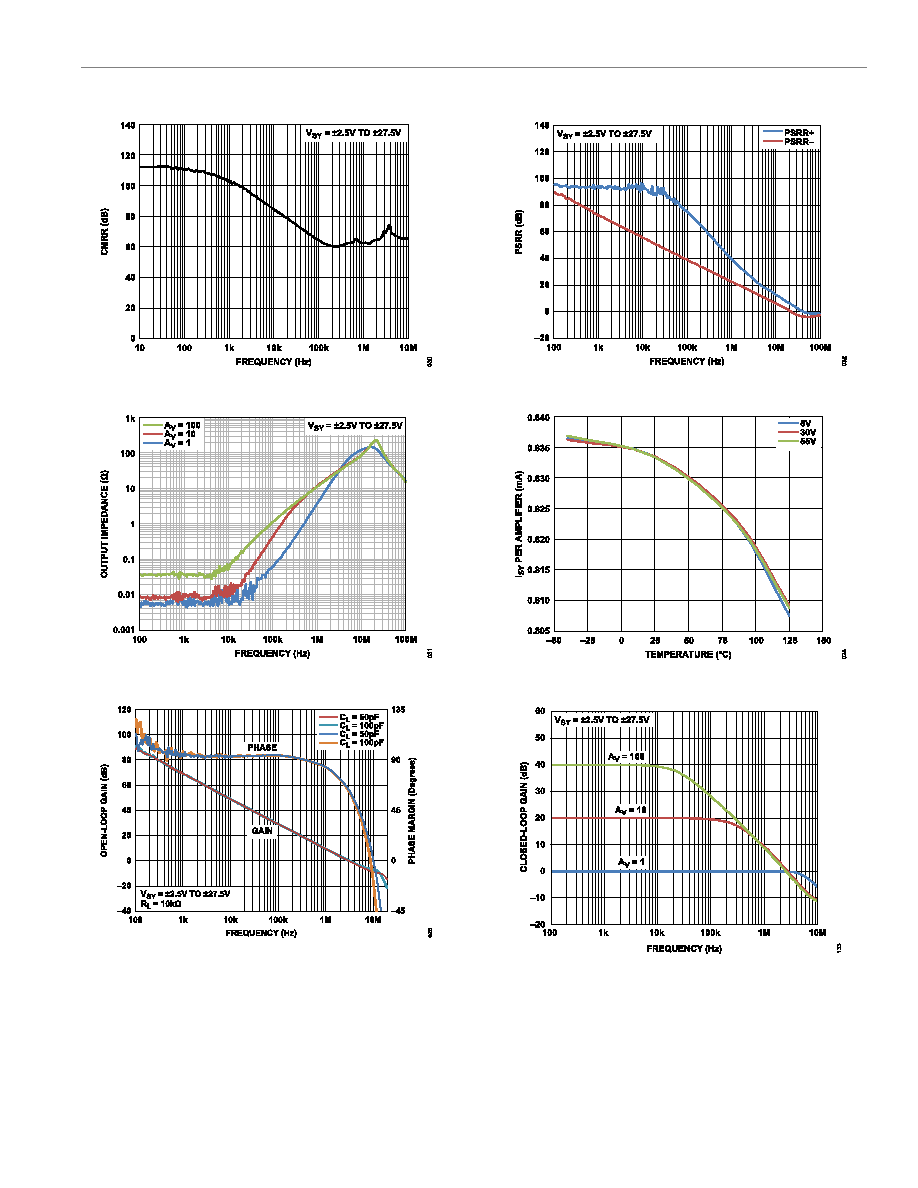

Figure 30. CMRR vs. Frequency

Figure 31. Closed-Loop Output Impedance vs. Frequency

Figure 32. Open-Loop Gain and Phase Margin vs. Frequency

Figure 33. PSRR vs. Frequency

Figure 34. Supply Current (ISY) per Amplifier vs. Temperature

Figure 35. Closed-Loop Gain vs. Frequency
