ADA4522-4ARZ-R7 Datasheet(PDF) 17 Page - Analog Devices

Part # ADA4522-4ARZ-R7
Description  55 V, EMI Enhanced, Zero Drift, Ultralow Noise, Rail-to-Rail Output Operational
PDF  33 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

ADA4522-4ARZ-R7 Datasheet(HTML) 17 Page - Analog Devices

Back Button ADA4522-4ARZ-R7 Datasheet HTML 13Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 14Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 15Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 16Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 17Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 18Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 19Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 20Page - Analog Devices ADA4522-4ARZ-R7 Datasheet HTML 21Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 17 / 33 page
background image
Data Sheet
ADA4522-1/ADA4522-2/ADA4522-4
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. G | 17 of 33

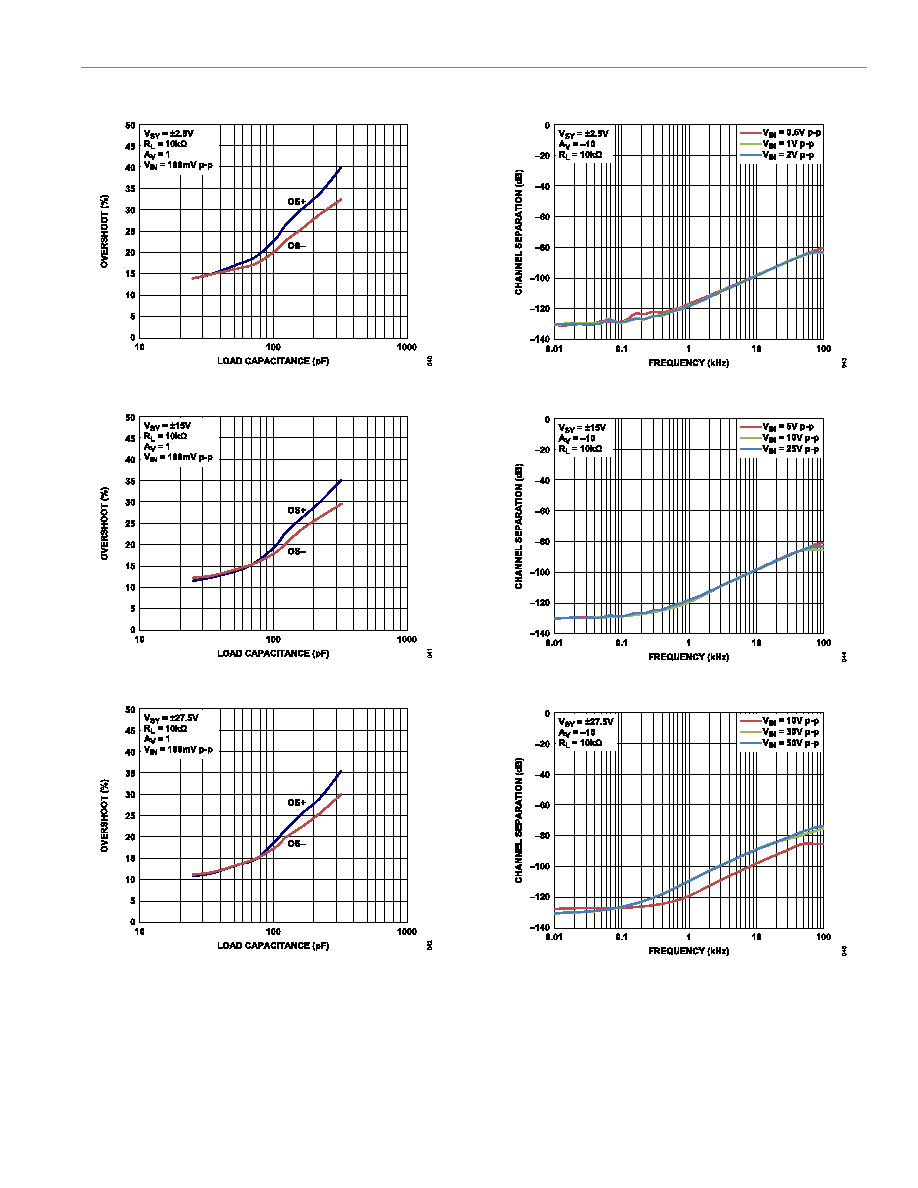

Figure 42. Small Signal Overshoot vs. Load Capacitance, VSY = ±2.5 V
Figure 43. Small Signal Overshoot vs. Load Capacitance, VSY = ±15 V
Figure 44. Small Signal Overshoot vs. Load Capacitance, VSY = ±27.5 V
Figure 45. Channel Separation vs. Frequency, VSY = ±2.5 V
Figure 46. Channel Separation vs. Frequency, VSY = ±15 V
Figure 47. Channel Separation vs. Frequency, VSY = ±27.5 V
