TPCF8104

2006-11-16

2

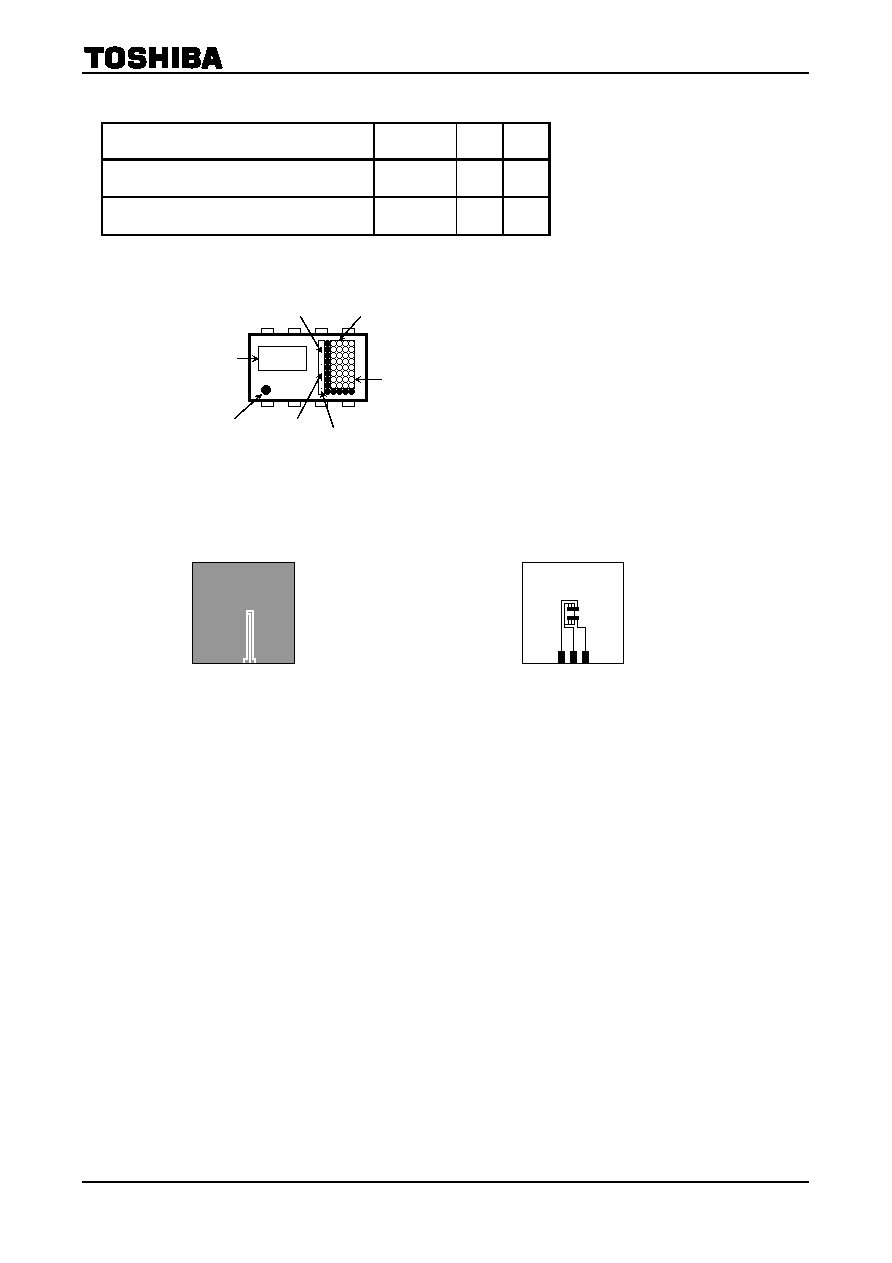

Thermal Characteristics

Characteristics

Symbol

Max

Unit

Thermal resistance, channel to ambient (t = 5 s)

(Note 2a)

50.0

°C/W

Thermal resistance, channel to ambient (t = 5 s)

(Note 2b)

178.6

°C/W

Marking (Note 5)

Note 1: Ensure that the channel temperature does not exceed 150℃.

Note 2: (a) Device mounted on a glass-epoxy board (a)

(b) Device mounted on a glass-epoxy board (b)

Note 4: Repetitive rating: pulse width limited by maximum channel temperature

Note 5: ● on the lower leftof the marking indicates Pin 1.

(b)

FR-4

25.4

× 25.4 × 0.8

(Unit: mm)

(a)

FR-4

25.4

× 25.4 × 0.8

(Unit: mm)

Part No.

(or abbreviation code)

F3D

A line indicates

lead (Pb)-free package or

lead (Pb)-free finish.

Lot code (month)

Lot No.

Pin #1

Lot code

(year)

Product-specific code
