Data Sheet
AD8027/AD8028
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 10 of 27
Default conditions: VS = 5 V at TA = 25°C, RL = 1 kΩ, unless otherwise noted.

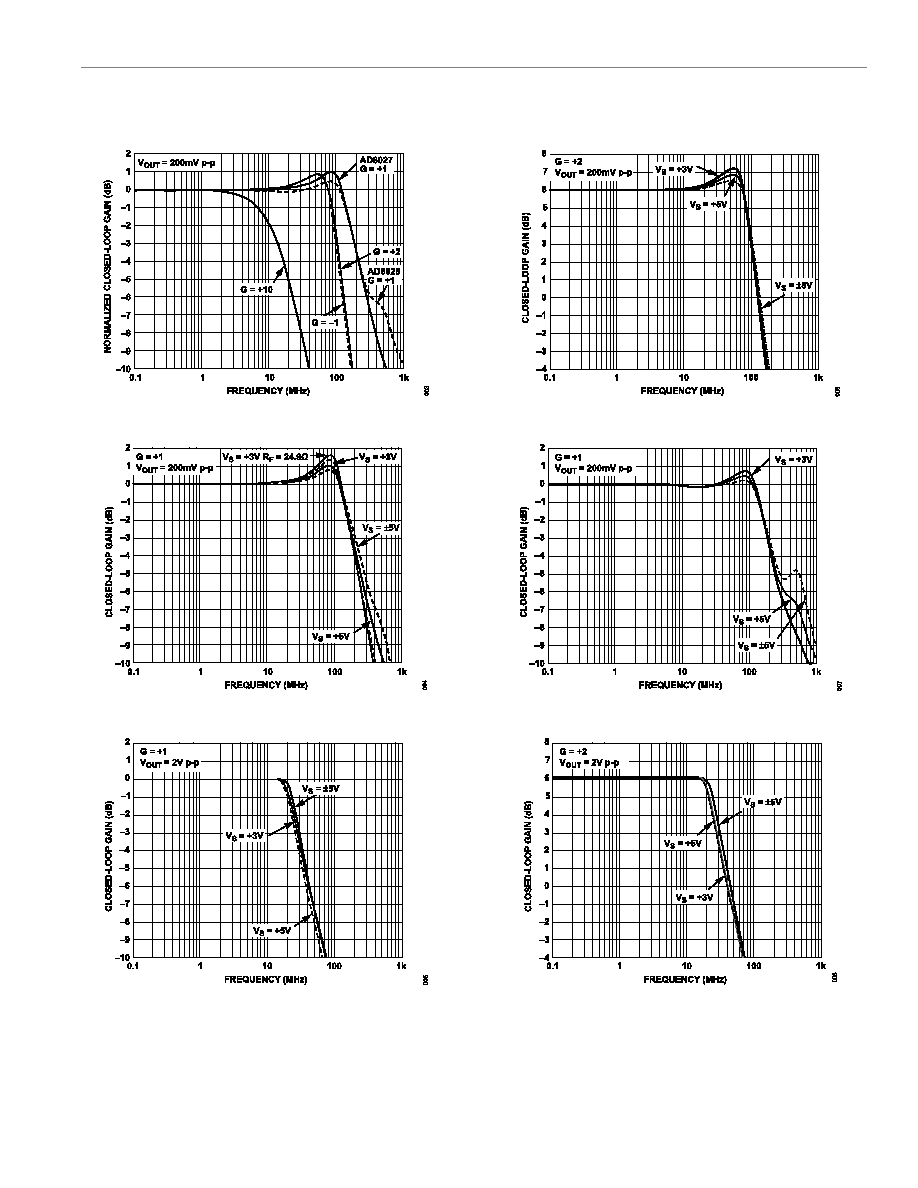

Figure 8. Small Signal Frequency Response for Various Gains
Figure 9. AD8027 Small Signal Frequency Response for Various Supplies
Figure 10. Large Signal Frequency Response for Various Supplies, G = +1
Figure 11. Small Signal Frequency Response for Various Supplies
Figure 12. AD8028 Small Signal Frequency Response for Various Supplies
Figure 13. Large Signal Frequency Response for Various Supplies, G = +2
